ABK-703B-S: connection diagram with an Access Control device

Super Admin
02 May 2026
0 views

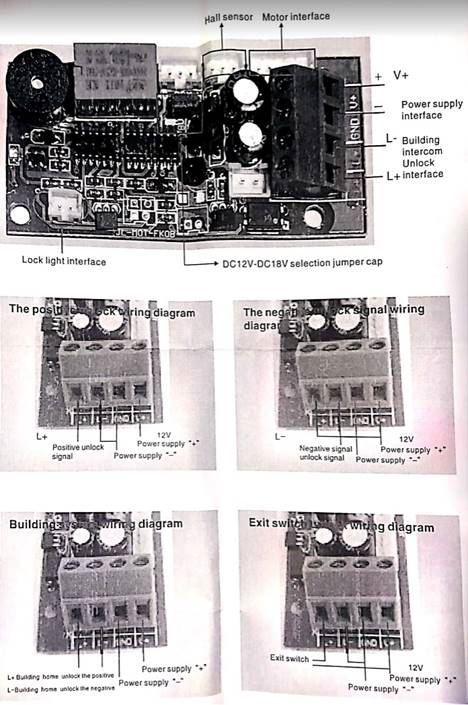

Among the possible configuration options indicated in the product's manual, we explain the first and most intuitive one.



For the lock to open, we have to make a bridge between L- and GND and connect the positive pole of 12V to L+; in order to achieve this, in the access control device we will make a bridge between +12V and COM, and we will link NO to the L+ of the lock.



In this way, when the relay of the Access Control device is activated, the 12V impulse will reach the L+ connector and the lock will be opened.
