Ajax MultiTransmitter zone connection diagram

Connection diagram (Ajax MultiTransmitter)

The MultiTransmitter only accepts zones in:

-NC or NO (Normally Closed or Open).

-NC RFL or NO RFL (Normally Closed or Open but with end of line resistor).

-It is not possible to make connections with 2RFL (Double End of Line Resistor)

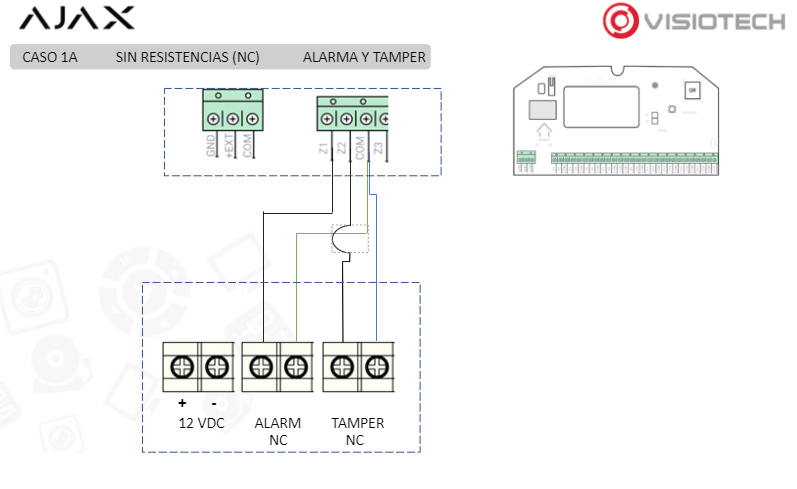

1st Alarm and tamper connection on NC

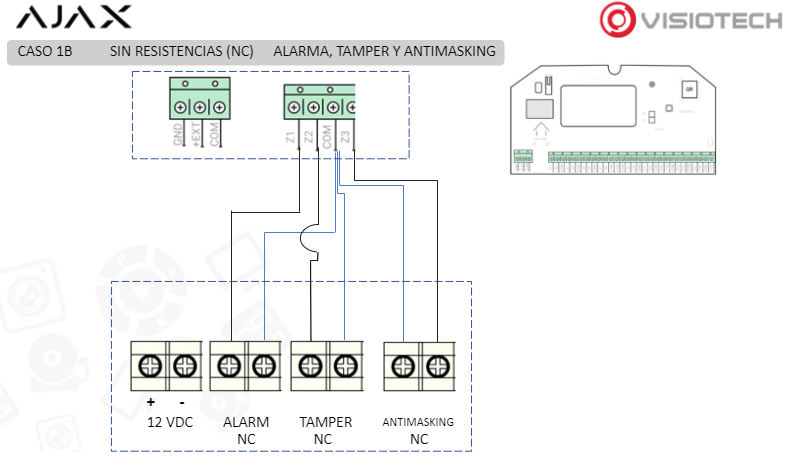

2º Connection of alarm, tamper and Anti-masking in NC.

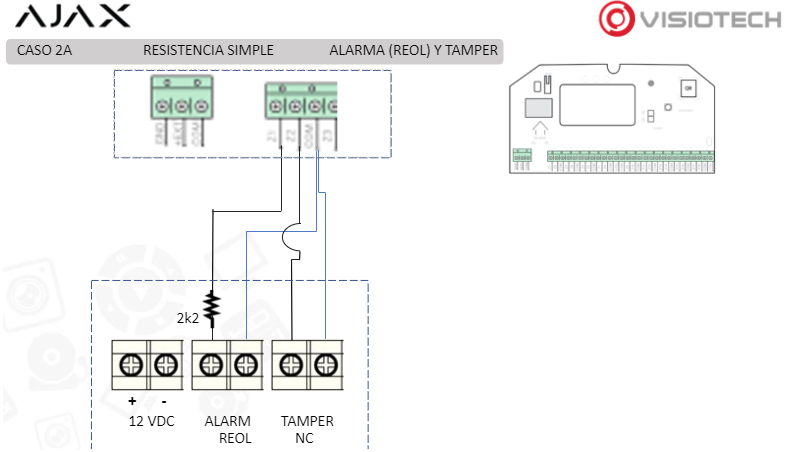

3ºC Alarm connection with RFL and tamper in NC.

IMPORTANT:

Tamper by default does not sound. Configure in:

Hub --> Service --> Sirens configuration --> If the lid opens
