AKUVOX - How to configure

The following devices were used for this test:

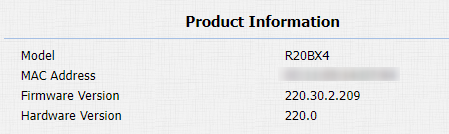

AK-R20B-4B:

AK-C315W:

AK-C315W:

We can work in "Single-tenant Manager" or in "Role:Project Manager"

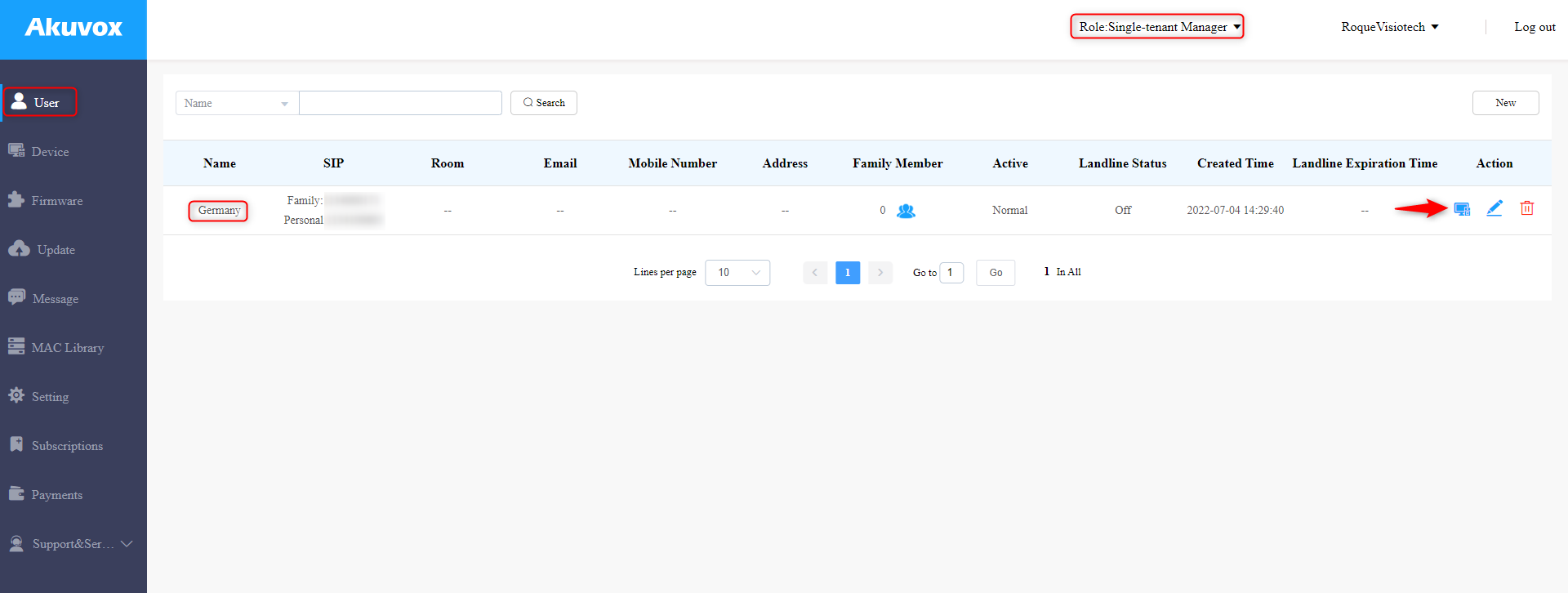

Work in the section: Single-tenant Manager:

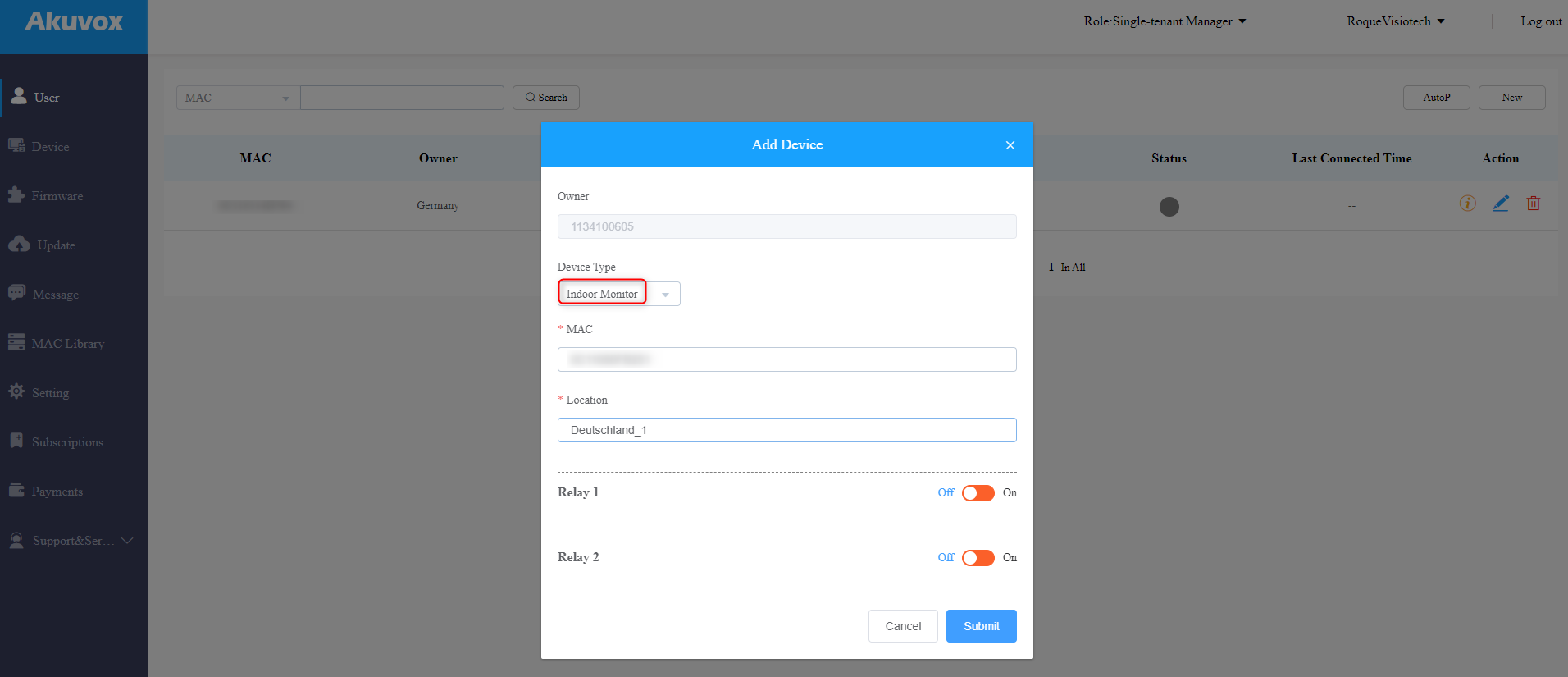

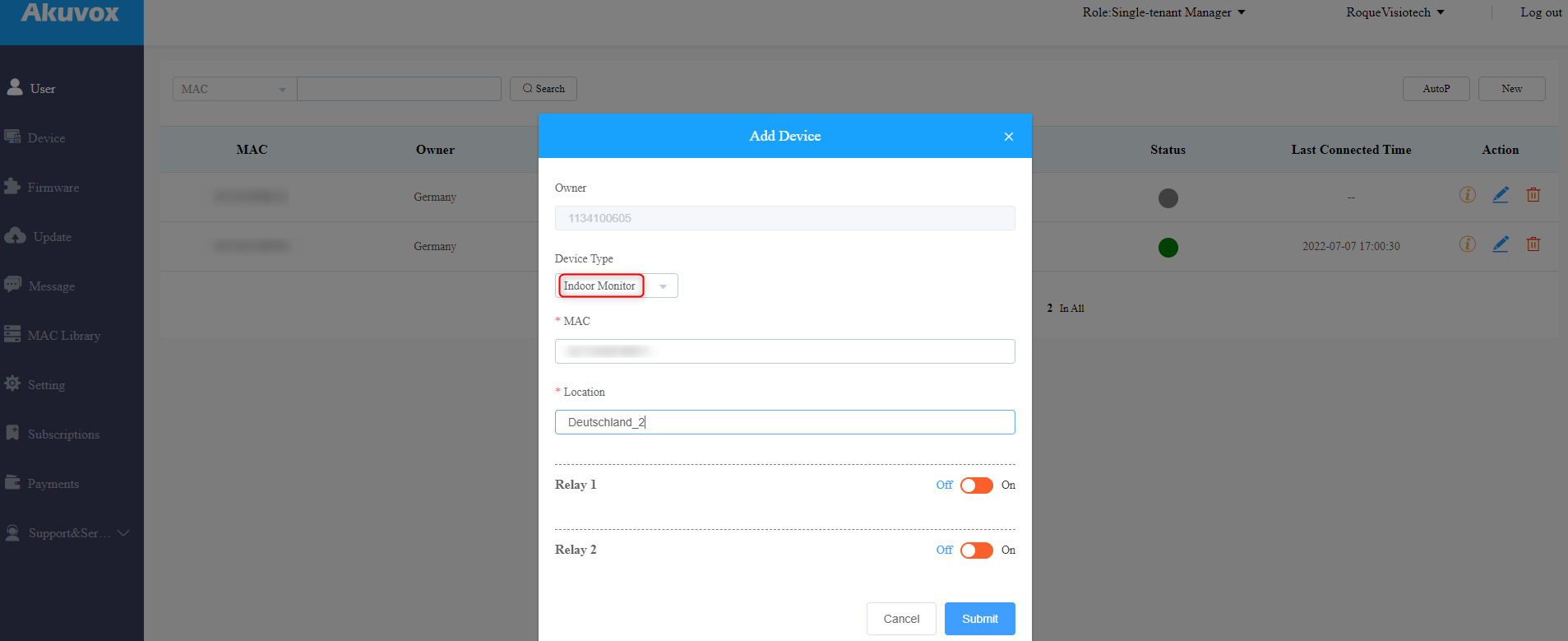

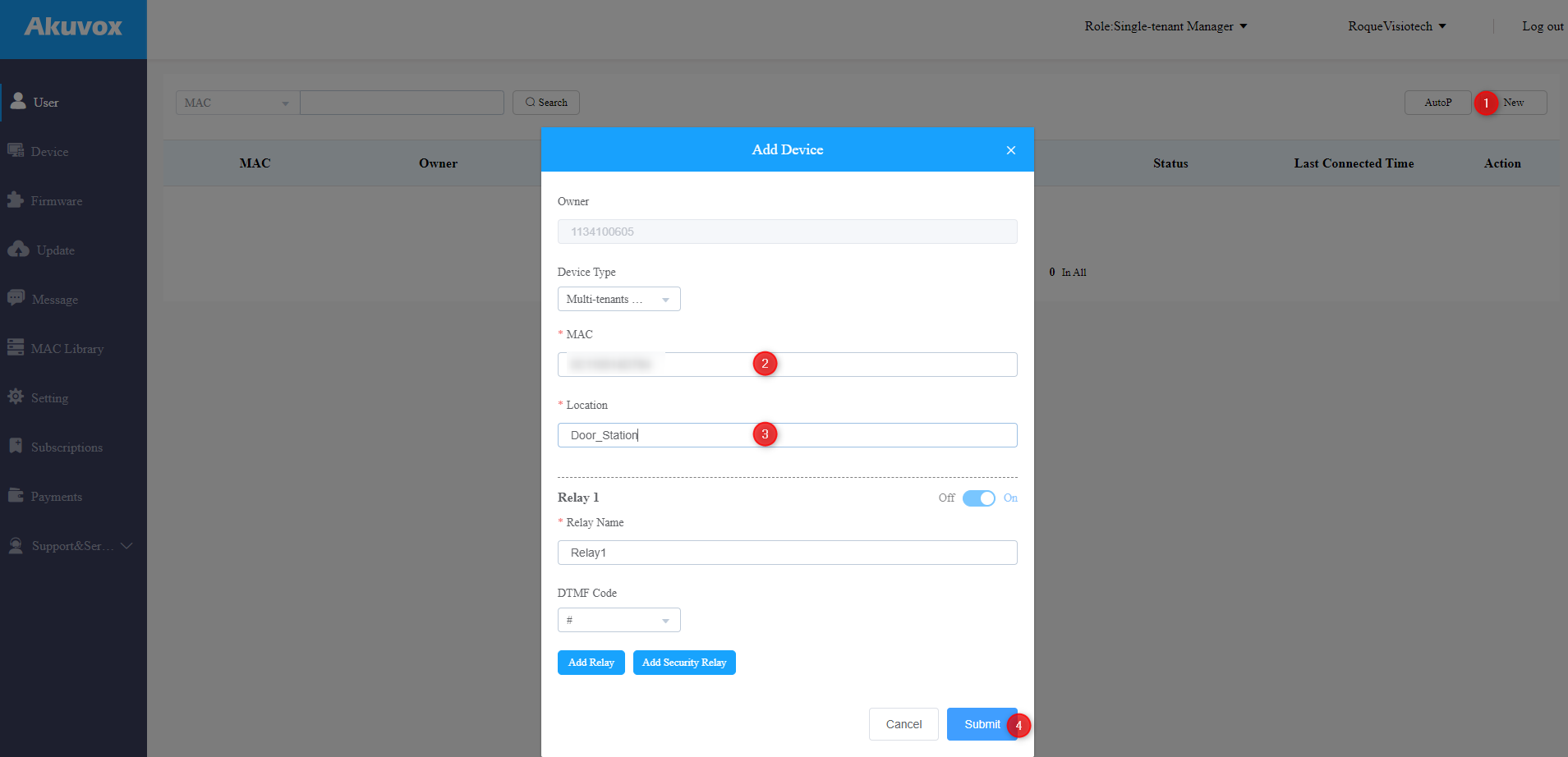

In Device Type we choose which device to add, these can be: monitor, outdoor panel or access control.

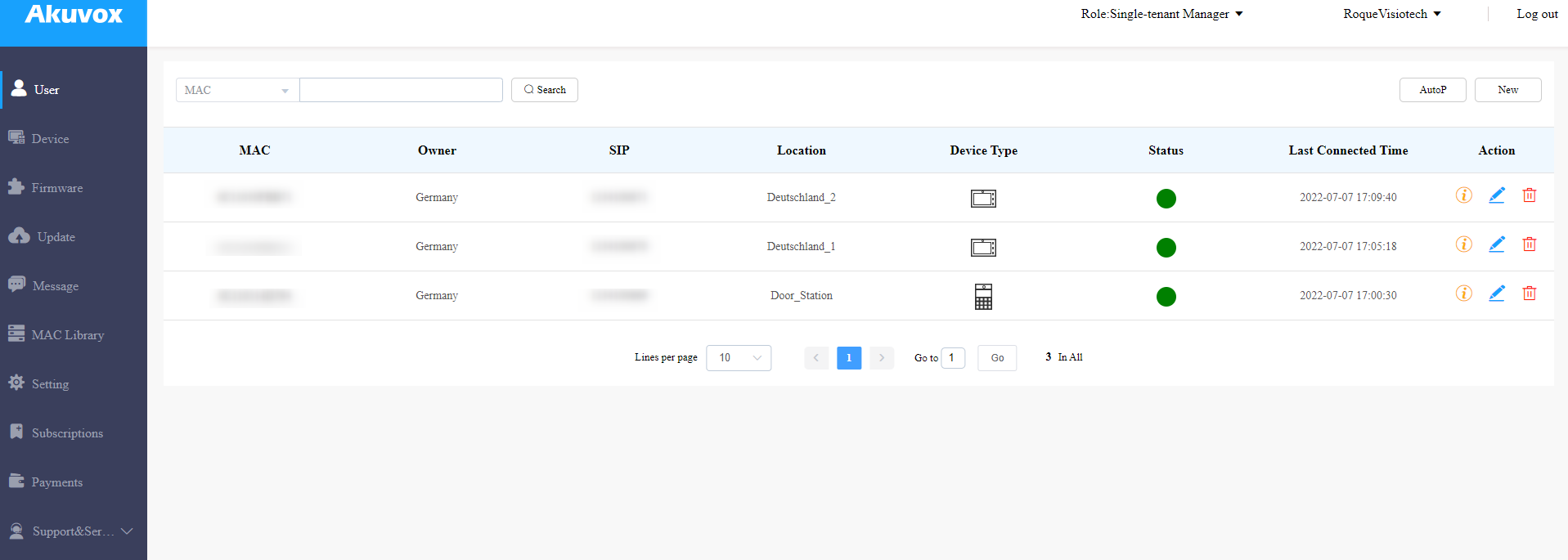

Once the devices have been added, there will automatically be communication between them, since they will be in the same project.

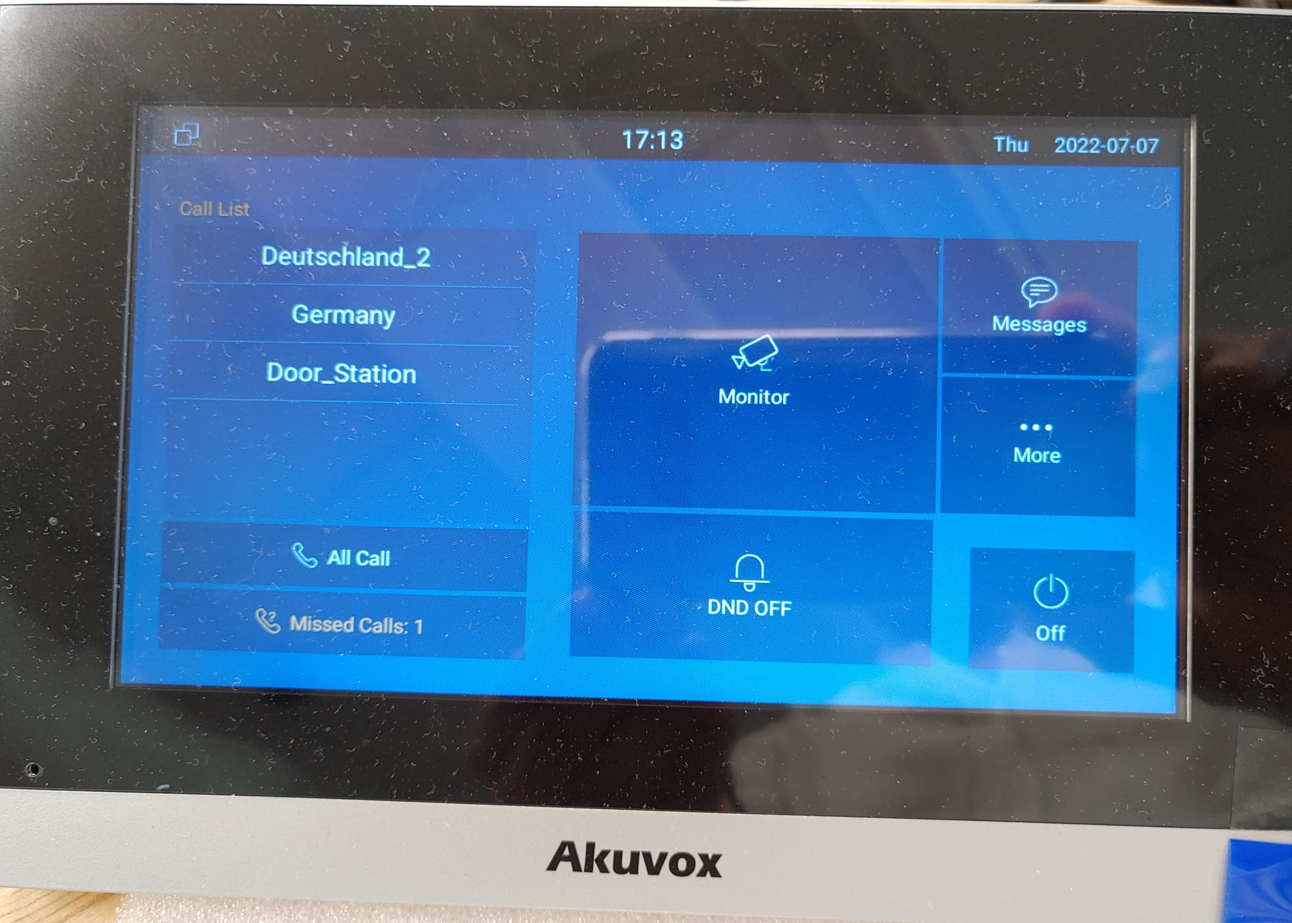

The monitor would look like this:

Subsequently, you can enter the outdoor panel menu to configure the call buttons.

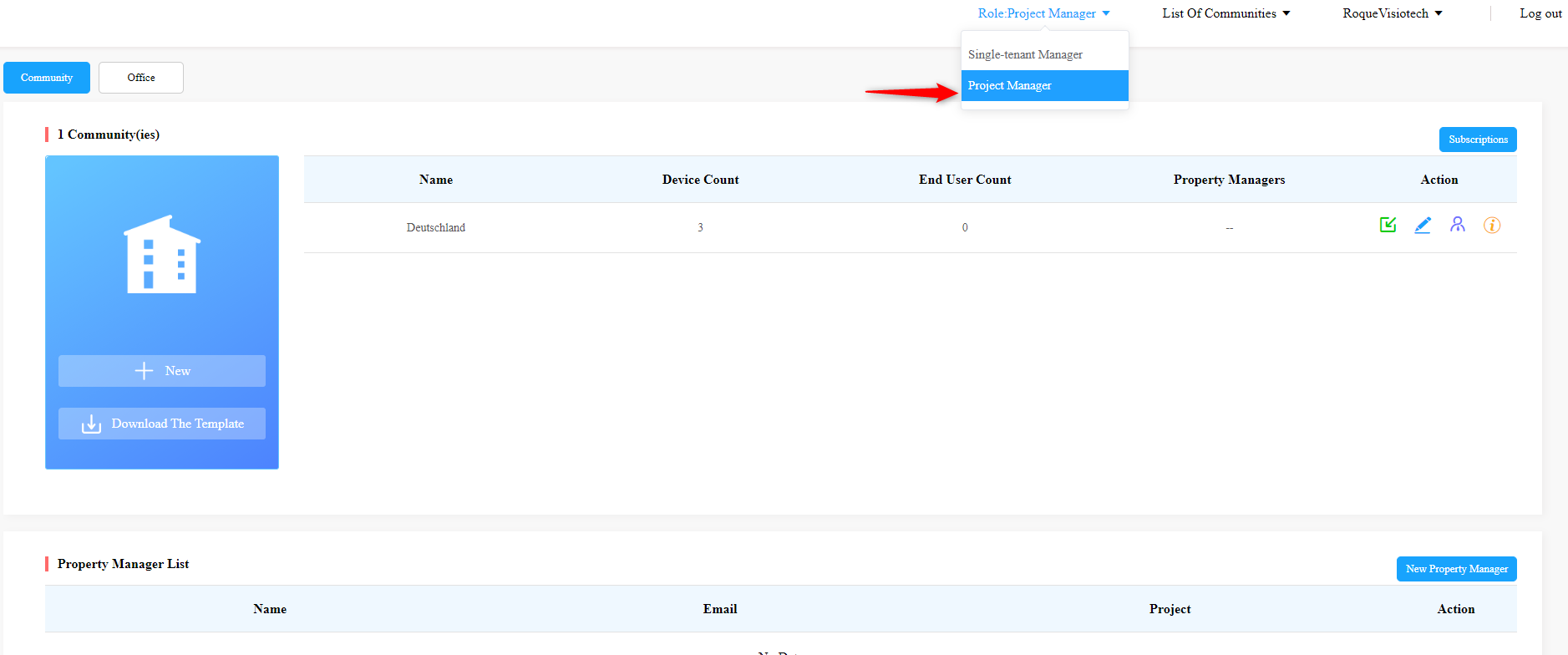

Working in the "Project Manager" section

We create a project, e.g. "Deutschland"

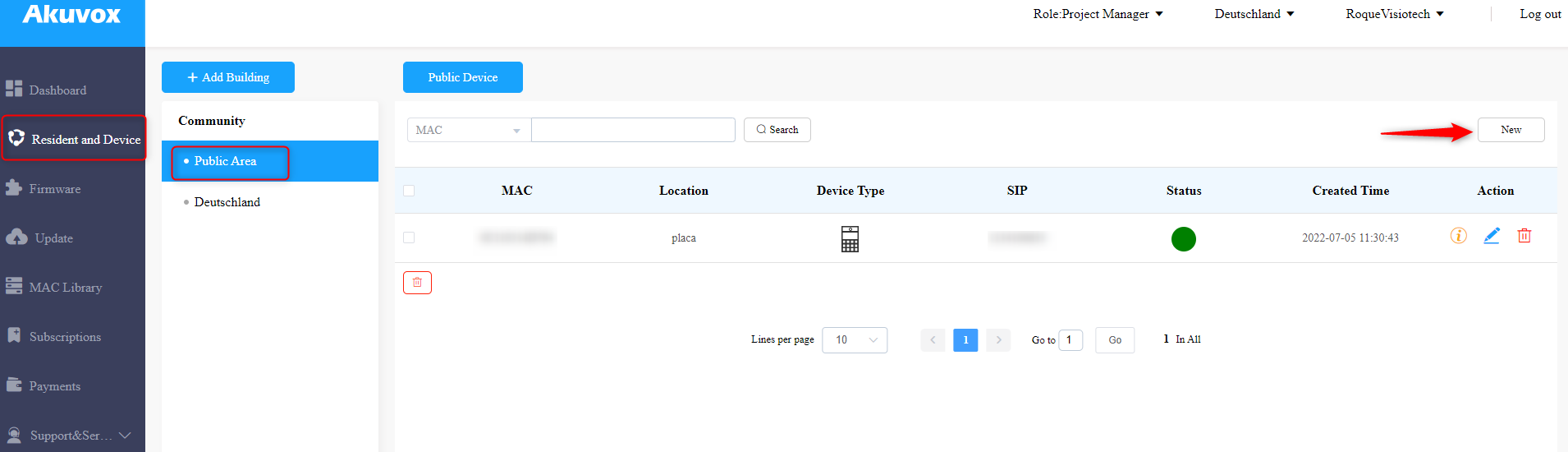

Once the project name is created we will start adding the devices to the cloud using the Mac of each device, as seen in the following image:

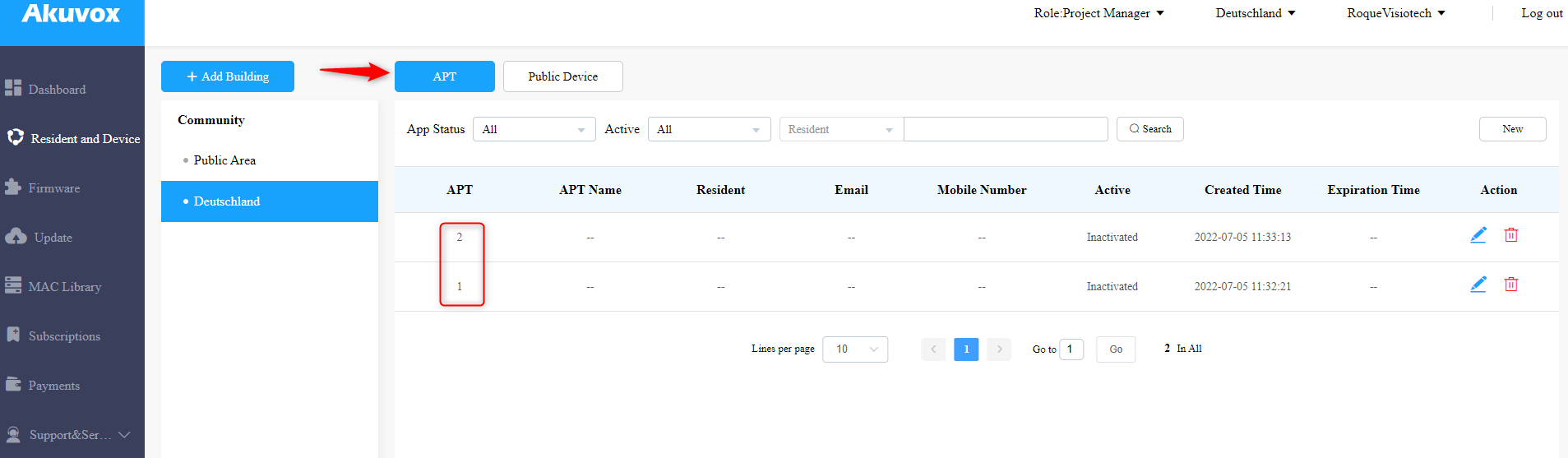

To add the monitors is done in the APT section:

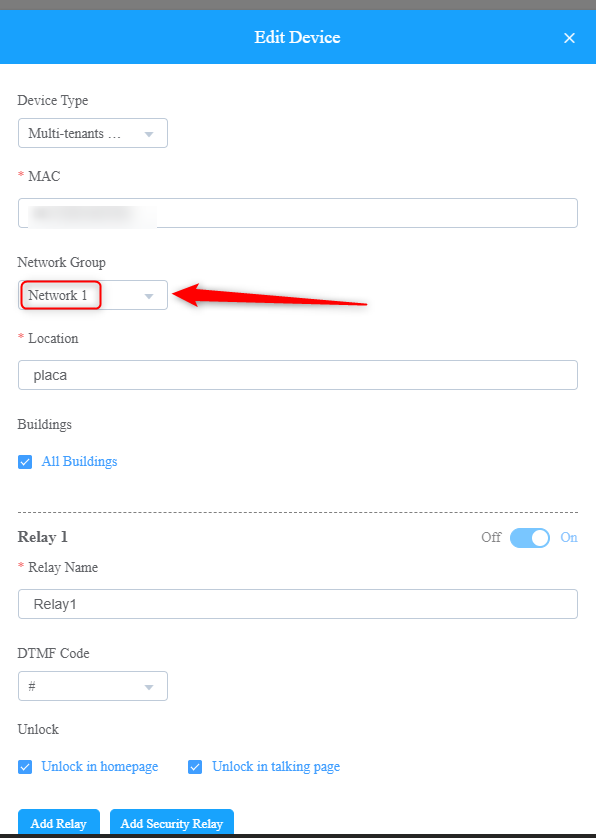

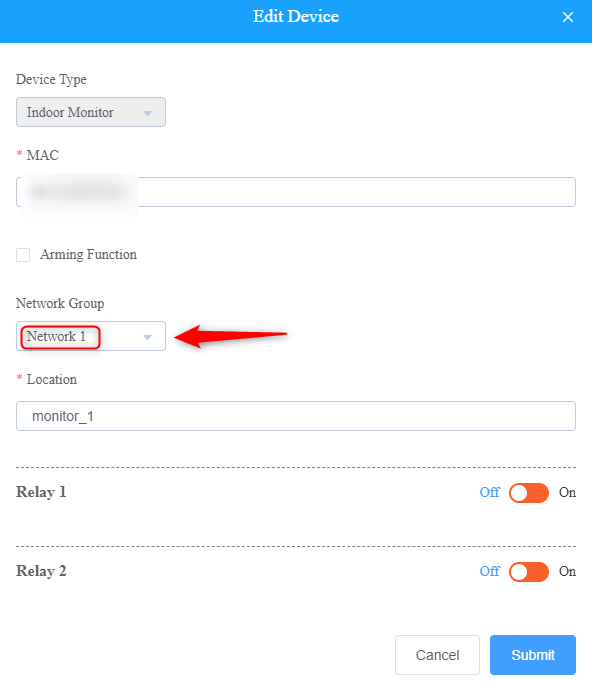

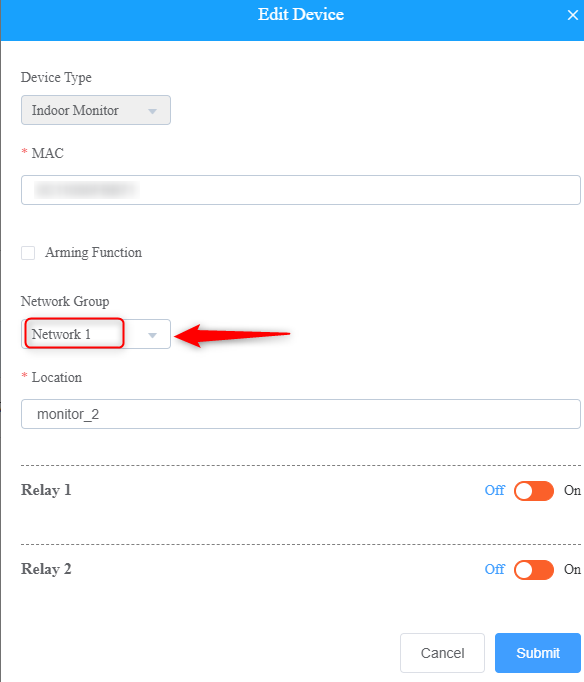

And it is very important to select the same network on the three devices so that later they can call each other with or without internet.

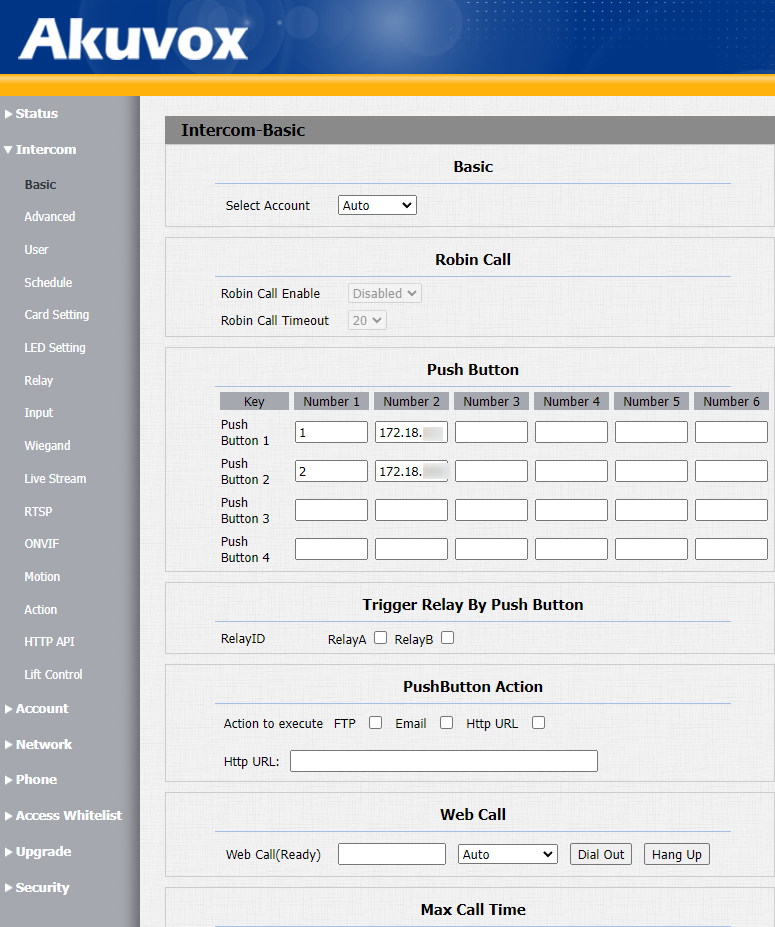

Once the Akuvox devices are added to the cloud, you will access the board, in this case with 4 buttons and configure the buttons on the board to set what each one will call.

Working in local network would be to follow the same steps, but it is very important that they are on the same network as seen in the pictures above.
