Configure 3 boards (VIMOD) with button panel (SF-VIMOD-KEY6) and 3 monitors (VIDISP) so that each button calls the desired monitor

How to configure 3 boards (VIMOD) with keypad (SF-VIMOD-KEY6)

y 3 monitors (VIDISP) so that each button calls the desired monitor?

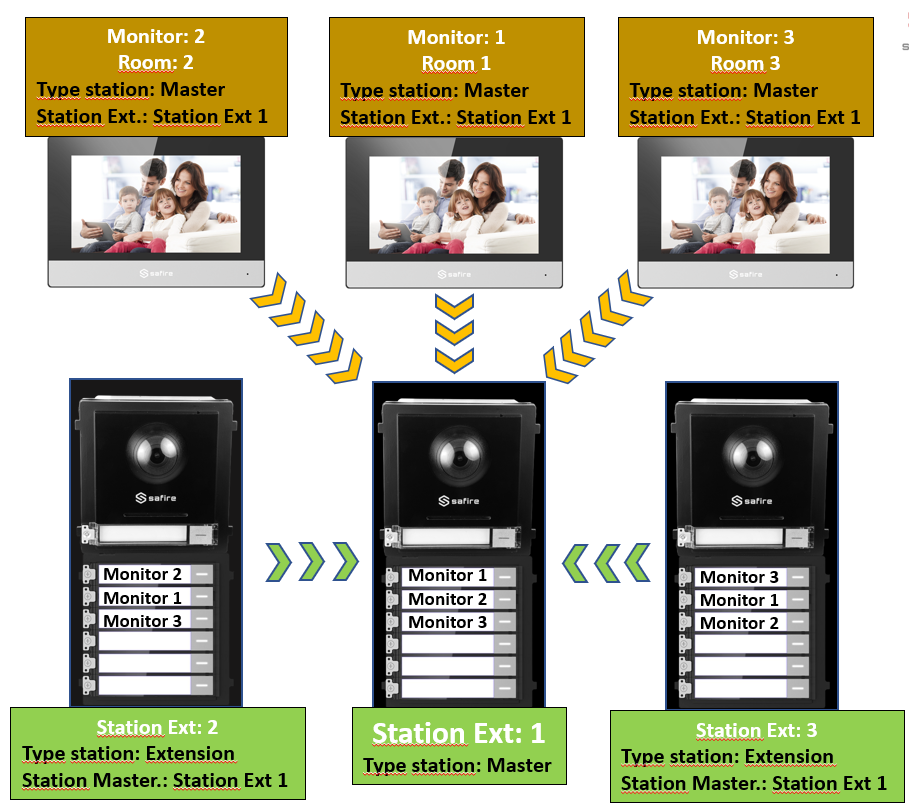

We can call any screen from any board and button panel. We will do it in the following way:

1- Configure the monitors in maters and pointing a the main board (Station Ext 1)

2- Configure the main board as master

3- Configure the 2 other boards as slaves of board main board

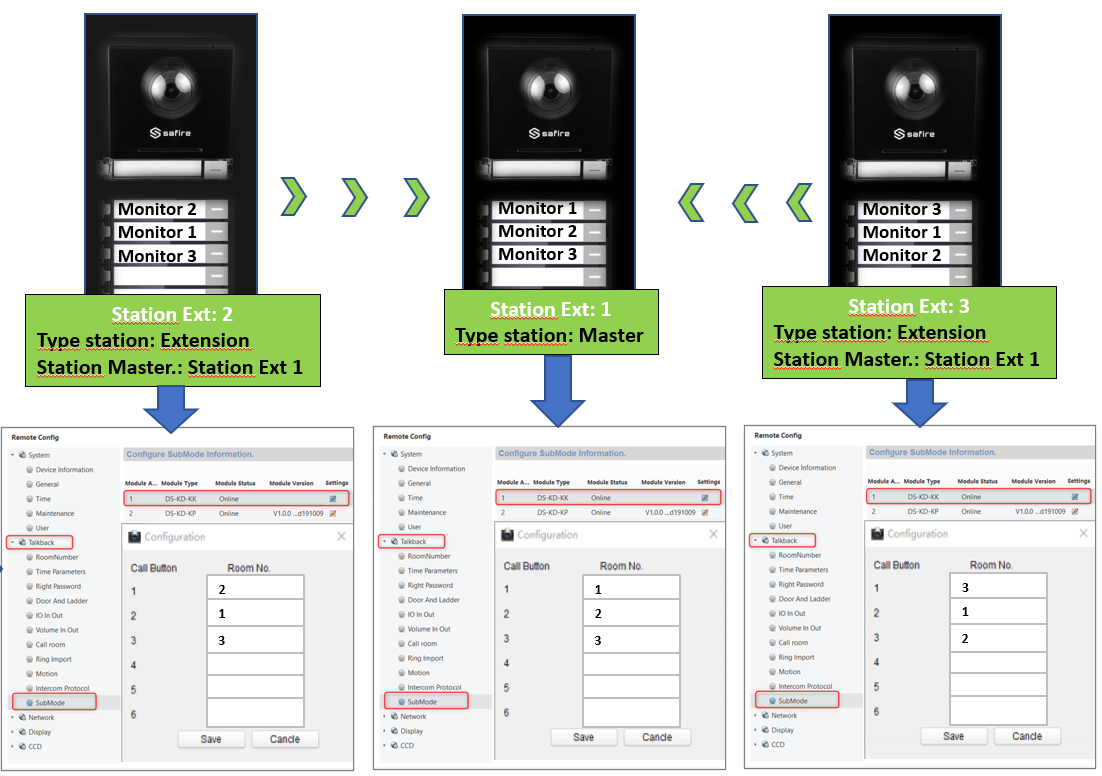

4- In Safire Control Center, assign the number monitor number (Room) to each button:

As we see in the example, we can configure each button to call the desired monitor.

Link to add a second panel, how to add it as an Extension:

Add second PANEL in Video door phones 2nd Generation SAFIRE
