Connecting an anti-handling controller to a SAFIRE face stand-alone terminal

Super Admin
02 May 2026
0 views

To connect the SF-AC2101-WR anti-tampering device with a facial standalone device, the following steps should be performed:

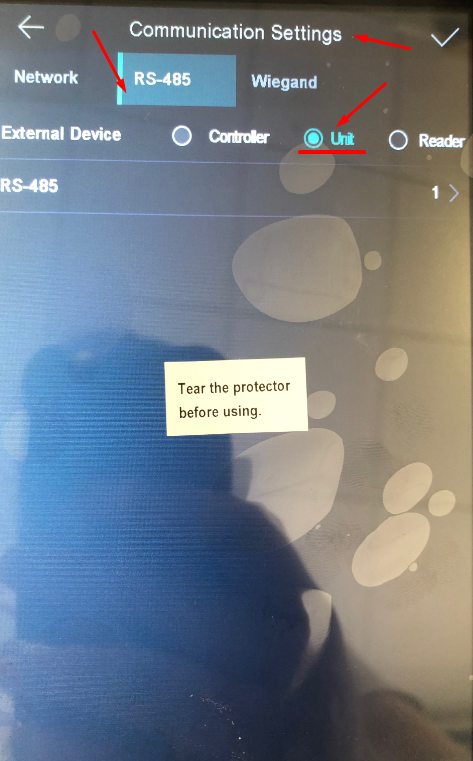

1-First, the RS485 connection of the reader must be configured as follows:

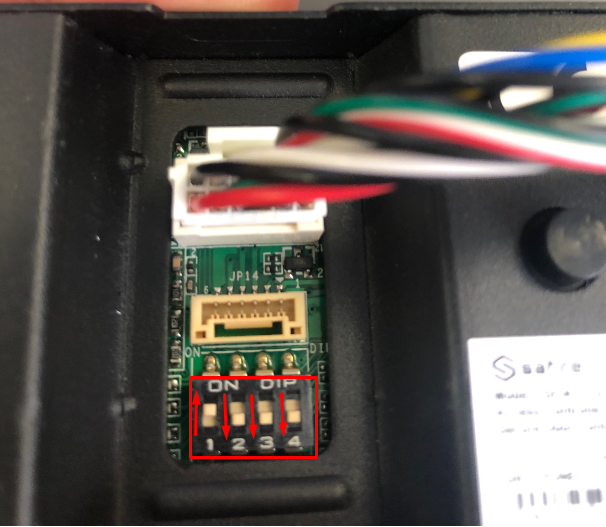

2-Once the RS485 connection between the controller and the facial reader is made, the controller pins must be configured as follows (and then reset the 2 terminals):
