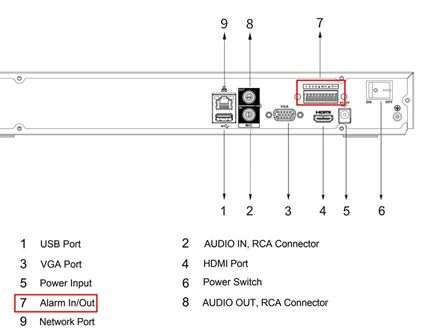

Connection of the second output of the X-Security Alarm Recorder

Super Admin
02 May 2026
0 views

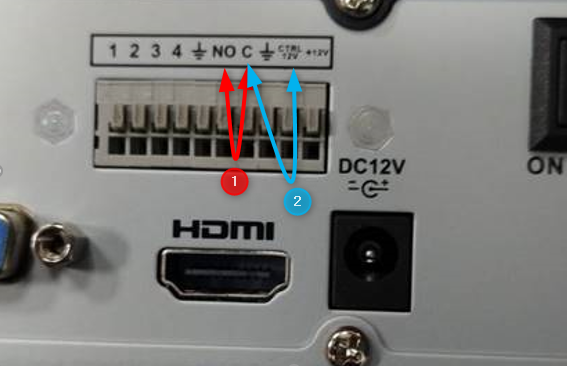

  • ALARM 1: NO + C
  • ALARM 2: CTRL 12V + C

As it indicates the CTRL 12V supplies 12 volts in continuous. The circuit is Normally Closed (NC) and when the alarm is generated it goes from 12V to 0V.
