DMTech | Reset | LA indicator

Access level 1

This access level is for all persons, who can be expected to identify themselves

and react to the fire alarm or fault. All indicator lights are visible.

The following features are available:

• Integrated siren suppression
• Show suppressed messages for Fire, Fault and Disabled components
• Display line status

Access level 2

This is an access level to persons, who are responsible for safety and are trained and

authorized to operate the panel under the conditions:

• Security
• Fire
• Fault
• Disabled components
• Test

The following features are available at access level 2:

• Exit Fire condition
• Suppression of the outputs
• Activated in case of fire
• Involuntary activation of the controllable outputs
• Suppression of the built-in siren

The change from Level 2 to Level 1 and vice versa occurs after a combination of buttons and the relevant information on the display

. The selection occurs with a combination of buttons 1-2-3. With this combination you switch from

access level 1 to level 2 and vice versa.

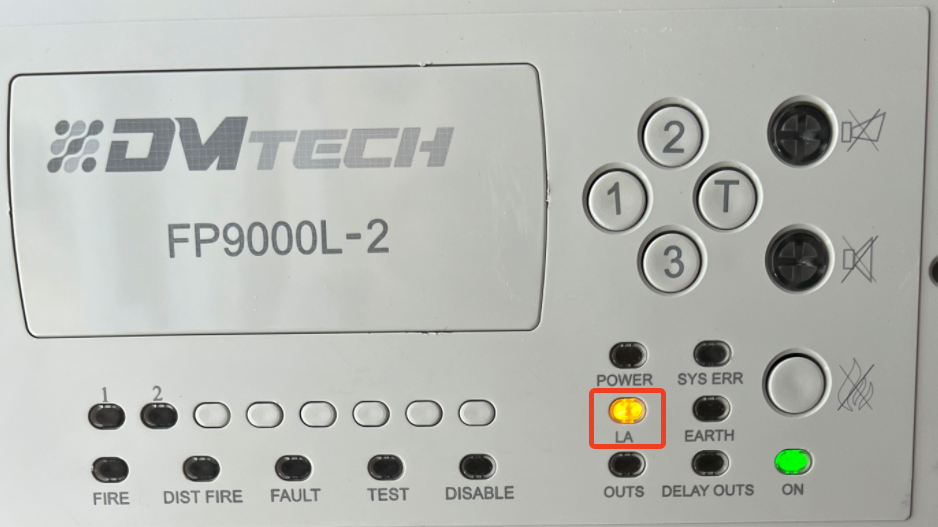

The "Access level" LED indicator shows the status, if the light is off we will be on

level 1, and if it is on we will be on level 2
