Environment:

  • DR-1000
  • DR-2000
  • DR-6500
  • DR-8500

Purpose:

When there is a problem with the NVR system, generate reports for troubleshooting.

Proceduce

  1. Go to the "Setup" icon on the front panel console.
  2. Click "System>Self-Diagnosis", then the Plus (+) to generate a report.

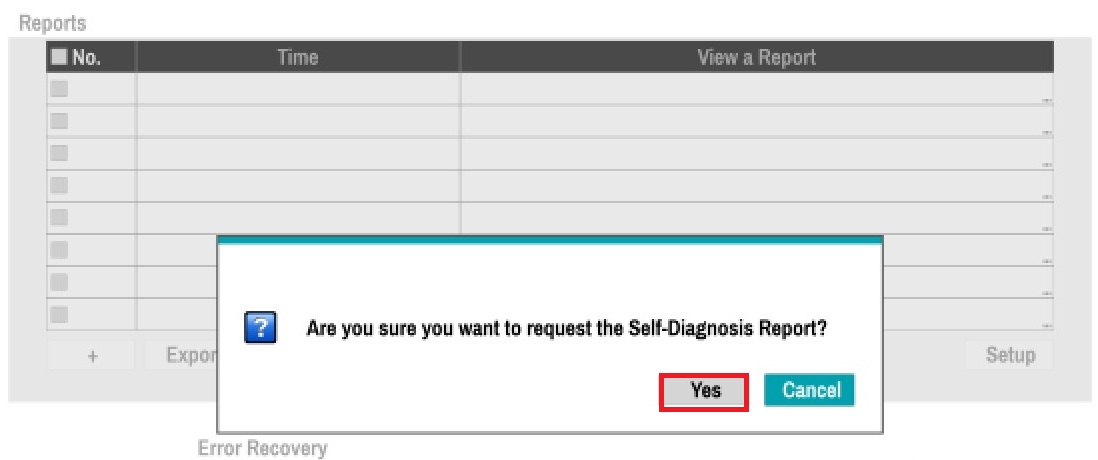

  3. Click "Yes" to generate a report.

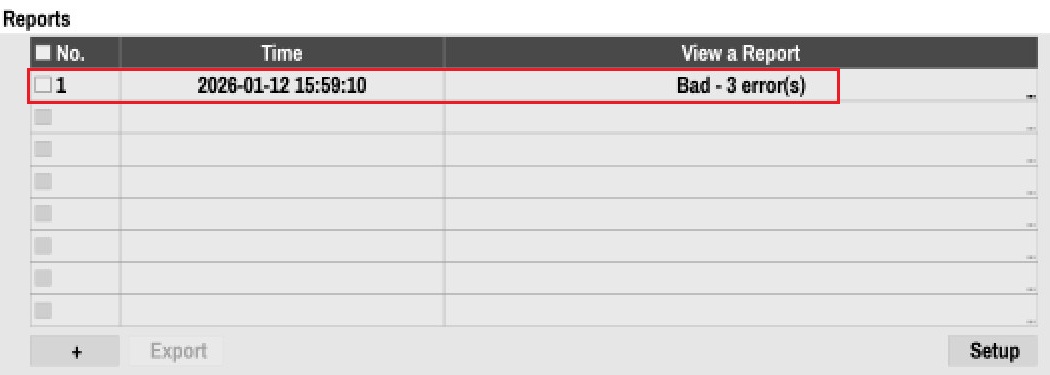

  4. Click on the "View a Report" field

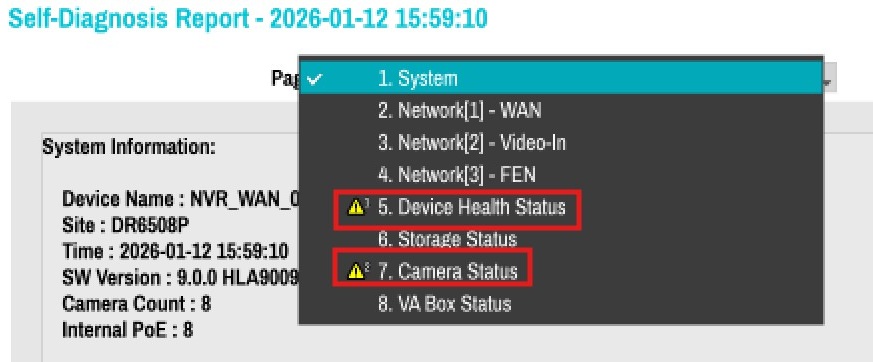

  5. Click on the "Page" field to review the errors showing a Yellow triangle with an exclamation.
  6. Click "Device Health Status" to review the error.

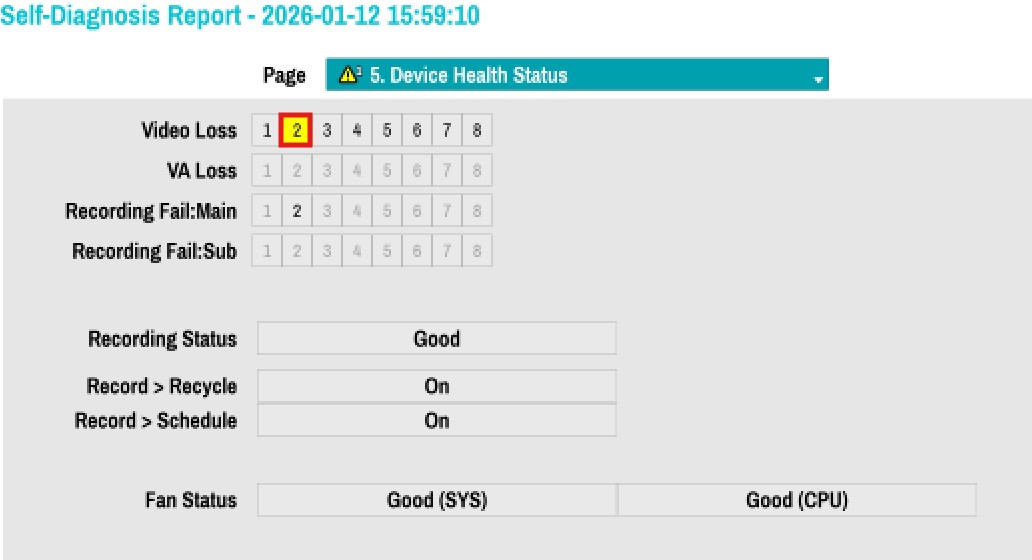

  7. Camera 2 is in Yellow, showing video lost.
    video lost.jpg

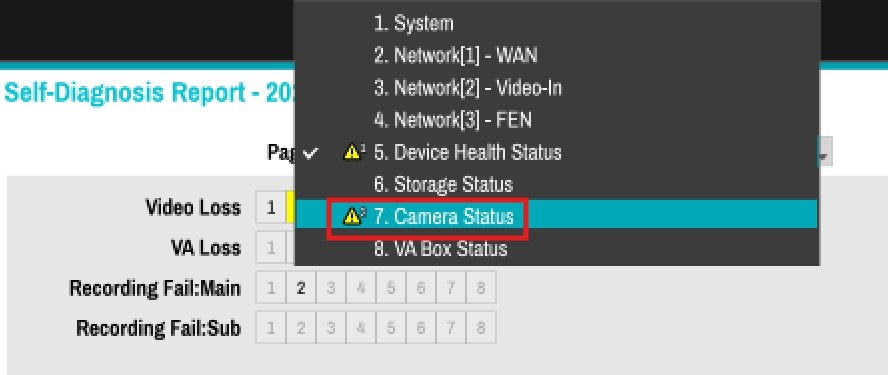

  8. Click on the "Page" field, then click on the "Camera Status."
    cam status.jpg

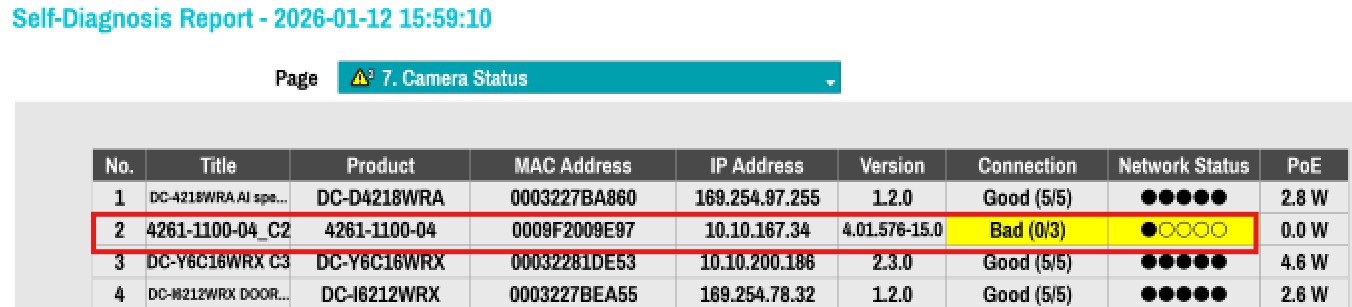

  9. Camera 2 shows "Bad"(0/3), 3 ping sent, 0 received.
    Camera status2.jpg
  10. The next step will be to check the network connection and the power to camera 2.
