HOW TO CONFIGURE CARDS IN SAFIRE SF-VI112-IPW-1MF VIDEO DOOR ENTRY SYSTEMS

Important note: the cards that come with the device are ENROLL cards, they do not serve as a user card.

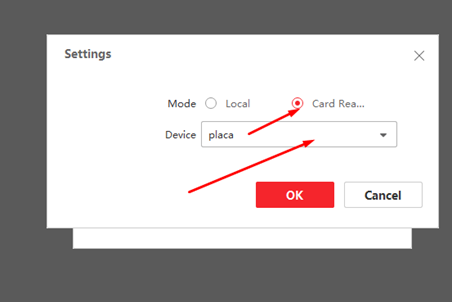

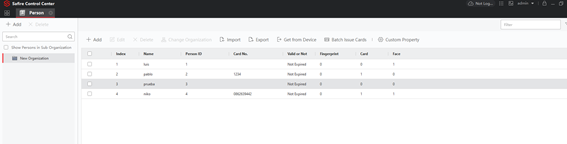

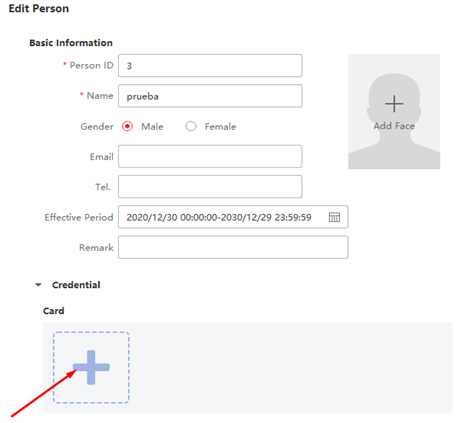

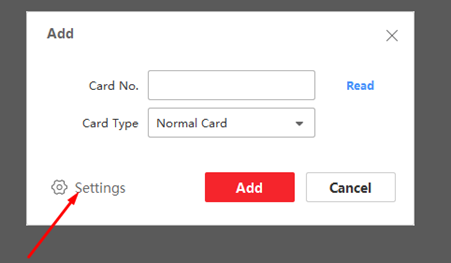

First of all, you need a MIFARE card to add it to the user, click on person, then register the person (name, id, etc). Next, select add card, click on settings and then select the video door entry system that will act as the reader.

Select the remote terminal and the card reader. Click on read and swipe the card.

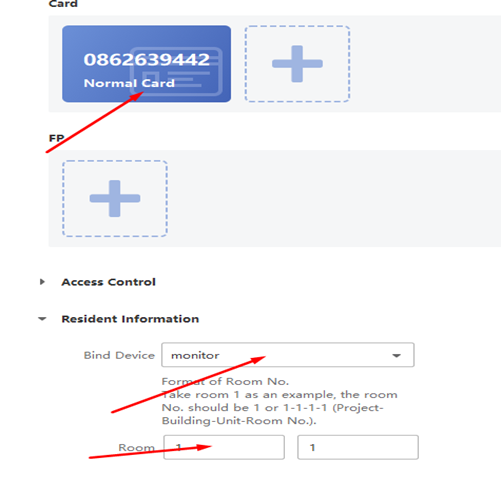

Finally, make sure that the device and the room are correctly configured.

Once the process is finished, the card will be added and will work correctly.

In the web version of the system you can read the cards and then obtain the card numbers from the device

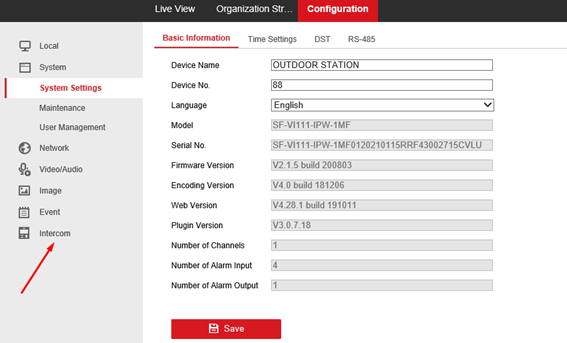

: Click on maintenance and device management in the configuration wheel

.

Then, look for the intercom option and click on it.

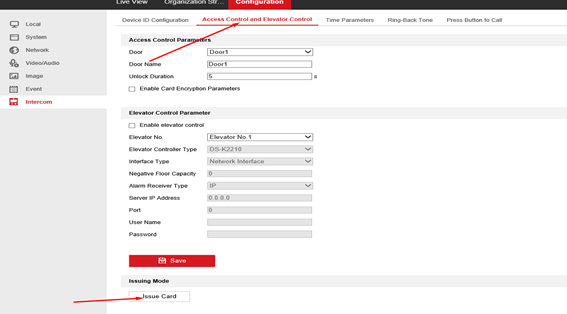

Select the access control and lift option and select read cards.

The reader will go into listening mode and you will have to swipe as many cards as you want to record. Once the process is finished, click on the read card button to finish the process.

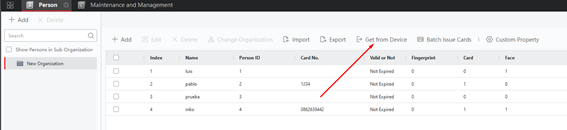

Go back to Safire Control Center, select the people option where you add the users and click on get from the device. We will see all the cards we have swiped and we will be able to modify the data to save them.
