How to create a QR code for facial access control or QR code readers for readers and controller

1. Open Safire Control Center (SCC)

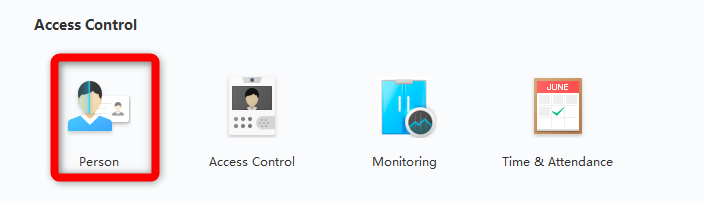

2. On the main page, click Person under the Access Control section

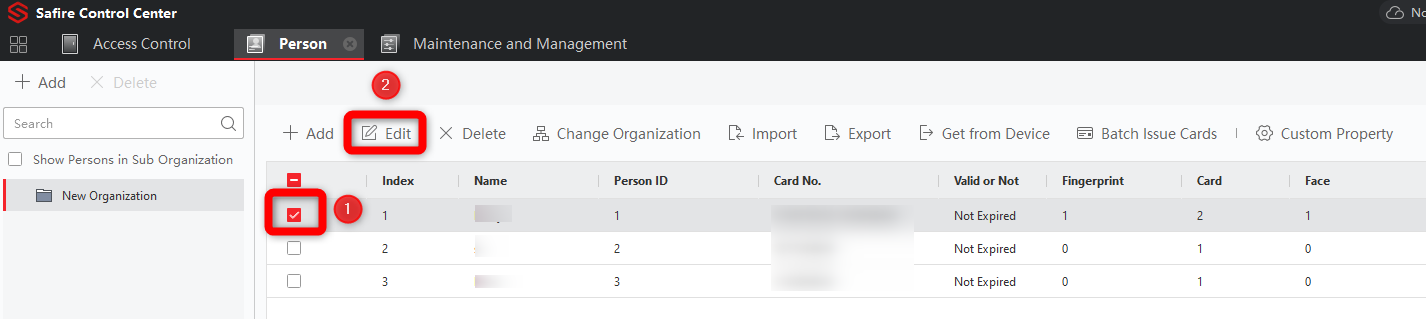

3. Select the person (1) for whom you want to create a QR access code and click Edit (2)

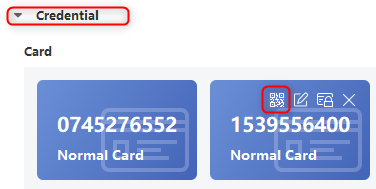

4. Move the mouse to the card from which you want to create a QR code and click on the QR image. If you do not have a card and only need the QR code, you can create a random card number

5. The QR code is created in a pop-up window

6. You can download the PNG image of the file from here:

How do I use a QR code to log in?

1. Go to the CAAC facial access control reader such as SF-AC3161MFDR-IP

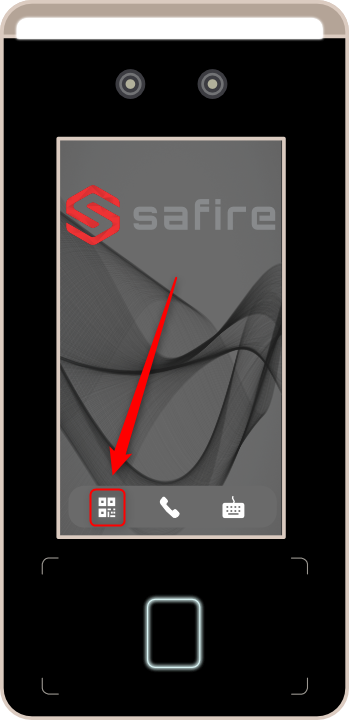

2. Select the QR code symbol

3. Display the QR code from the paper or the image of phone

4. When the QR code is successfully read, the device will register the entry
