[Linux-based NVR] How do I call a preset point using the AJ-001 joystick?

Question

How do I call a preset point using the AJ-001 joystick?

Answer

To call a preset using the AJ-001 joystick on the NVR, you must first configure preset points on the PTZ camera or through the NVR interface. Once presets are set, you can use the joystick to move the camera to a specific preset position by pressing Button 8 followed by the corresponding preset number.

Please follow these steps:

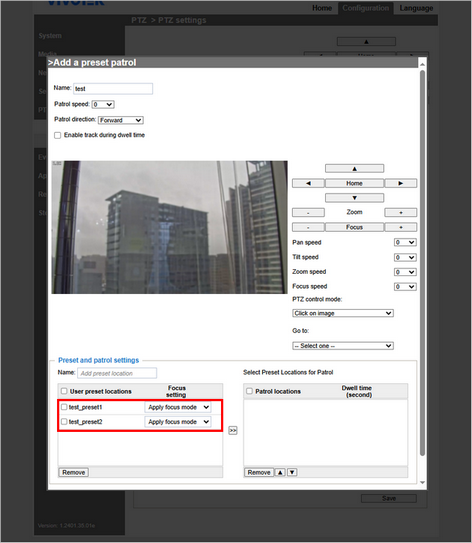

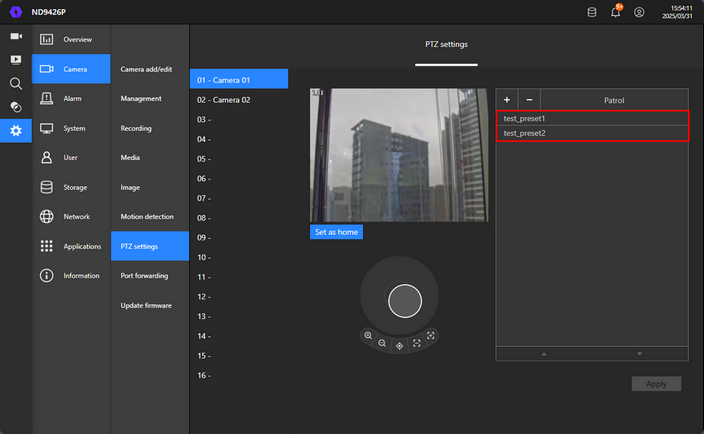

Step 1. Configure the preset: Set the preset point either directly on the PTZ camera or via the NVR interface.

Step 2. Select the PTZ camera: Click on the camera's view cell to make it active.

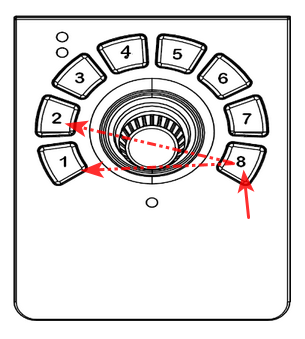

Step 3. Call the preset: Press Button 8, then enter the preset number. The camera will automatically move to the selected preset position.

Note: The preset number corresponds to the order in which the presets were configured.
