Master-Slave Configuration SF-VI112-IPW-1MF

To set up the Master-Slave configuration with two SF-VI112-IPW-1MF devices

The master board is added with the monitor's own configuration wizard:

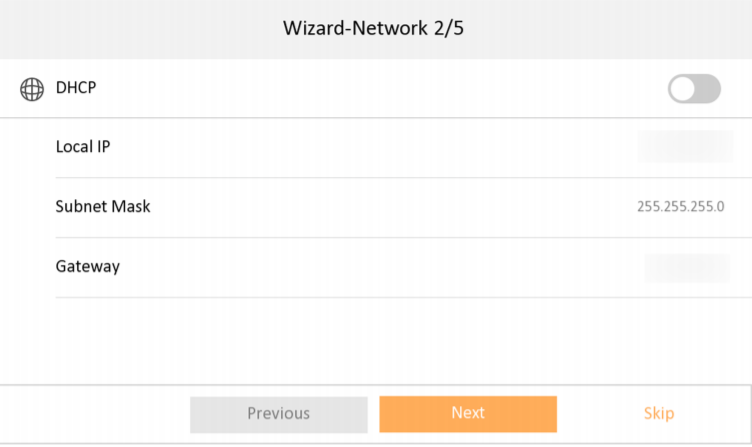

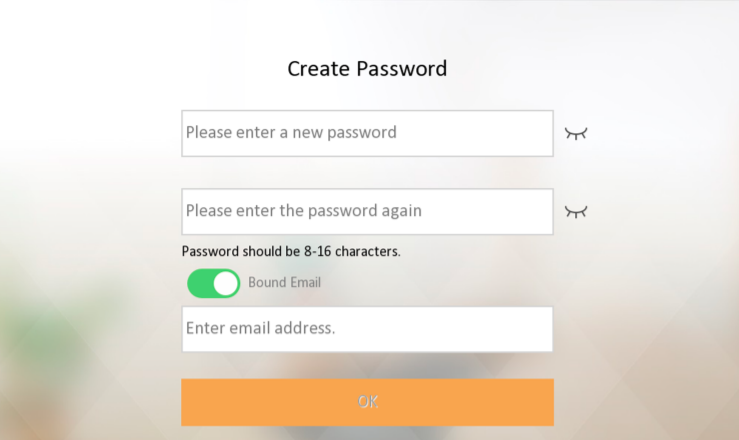

First, a password is set for the device, in addition, to the network addresses.

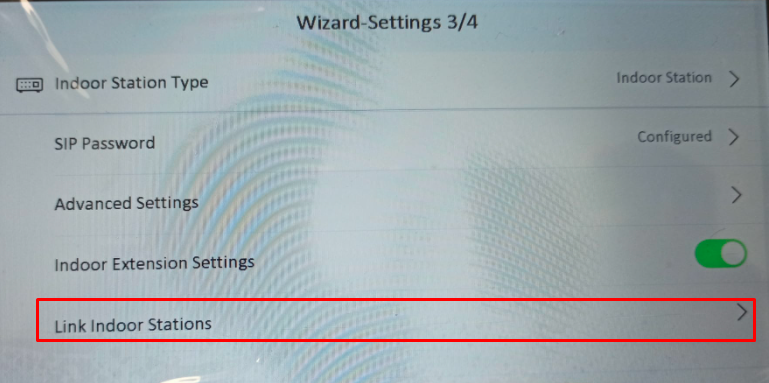

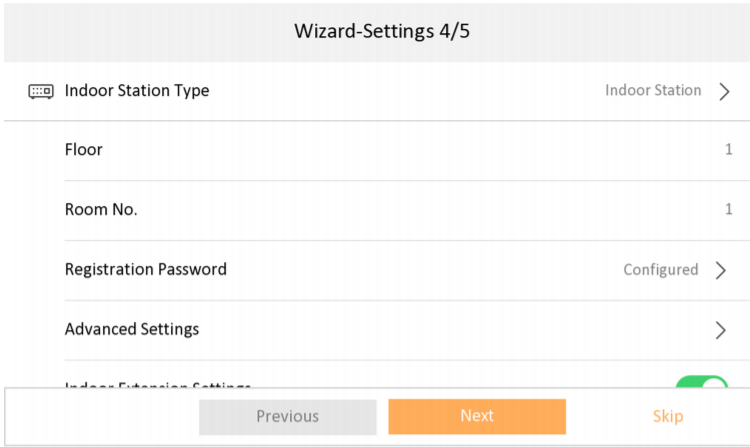

You configure it as a master monitor and add a SIP password (if you have slave monitors

they are also added here).

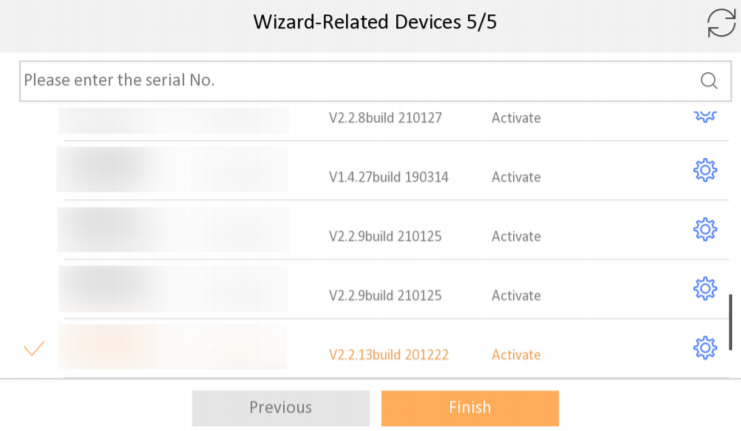

And finally, the master board that will be linked to the device is activated.

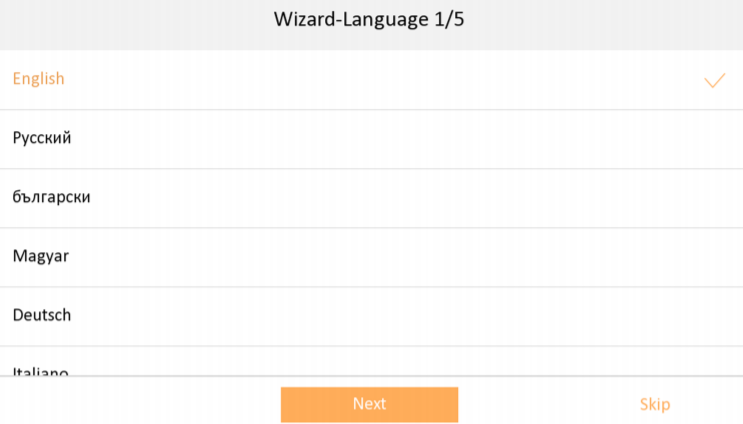

(if the language is different from English, wait for the device to reset).

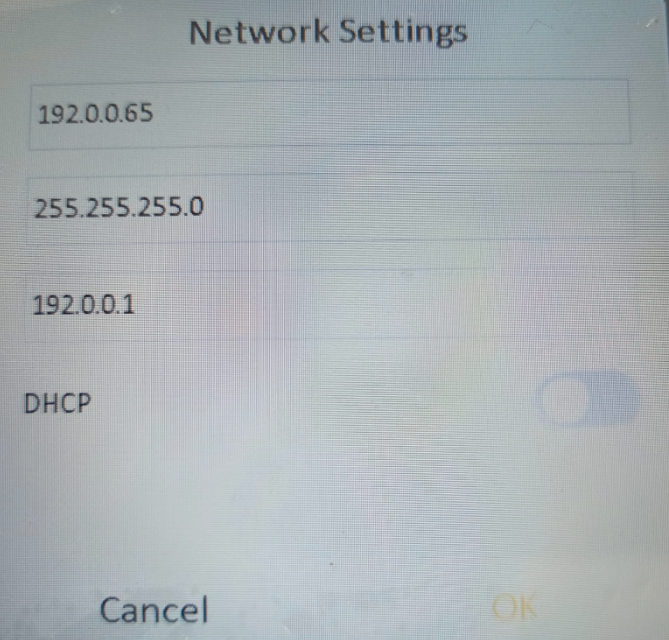

Change the IP address.

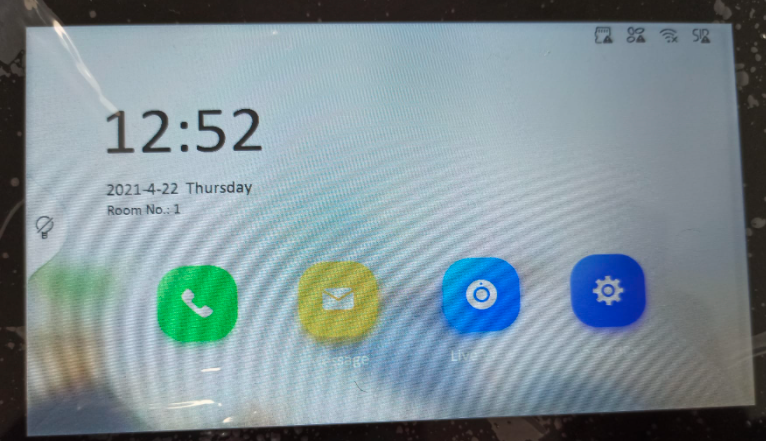

Finish and you have the monitor added correctly.

To configure a second board as a slave, follow these steps:

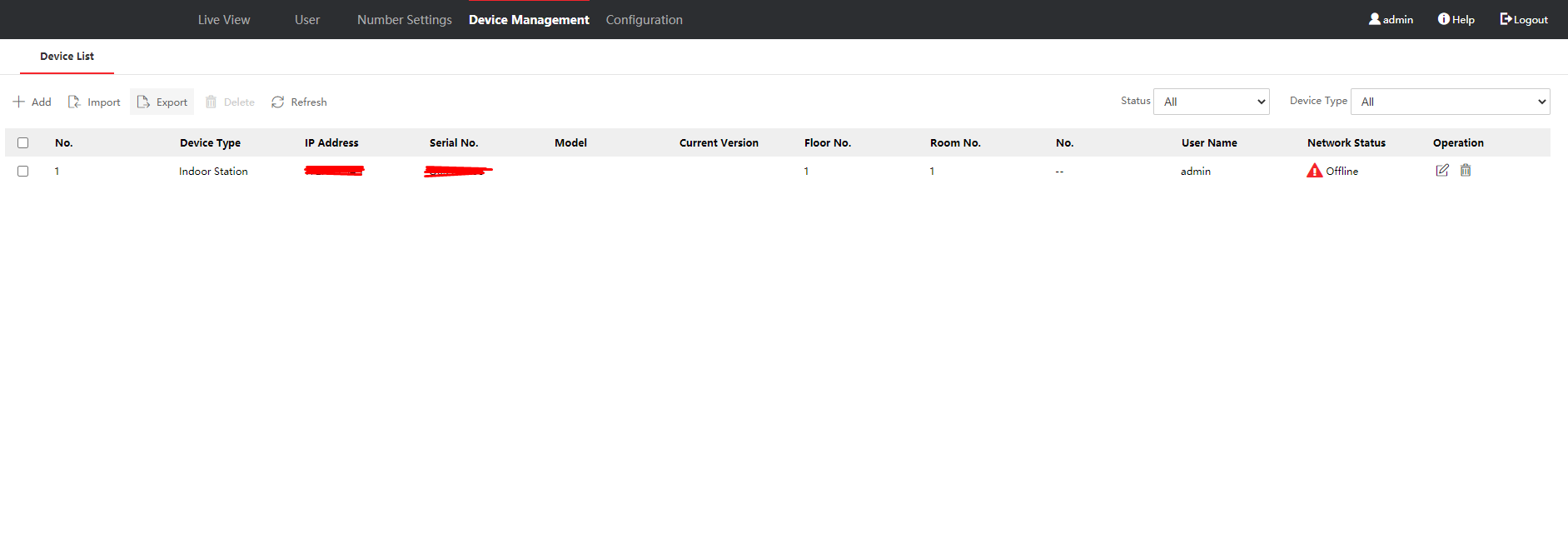

1. Go to the browser and go to the IP address that has been configured and enter the administrator credentials. Click on "device management" and you will see that you have the monitor added.
2.

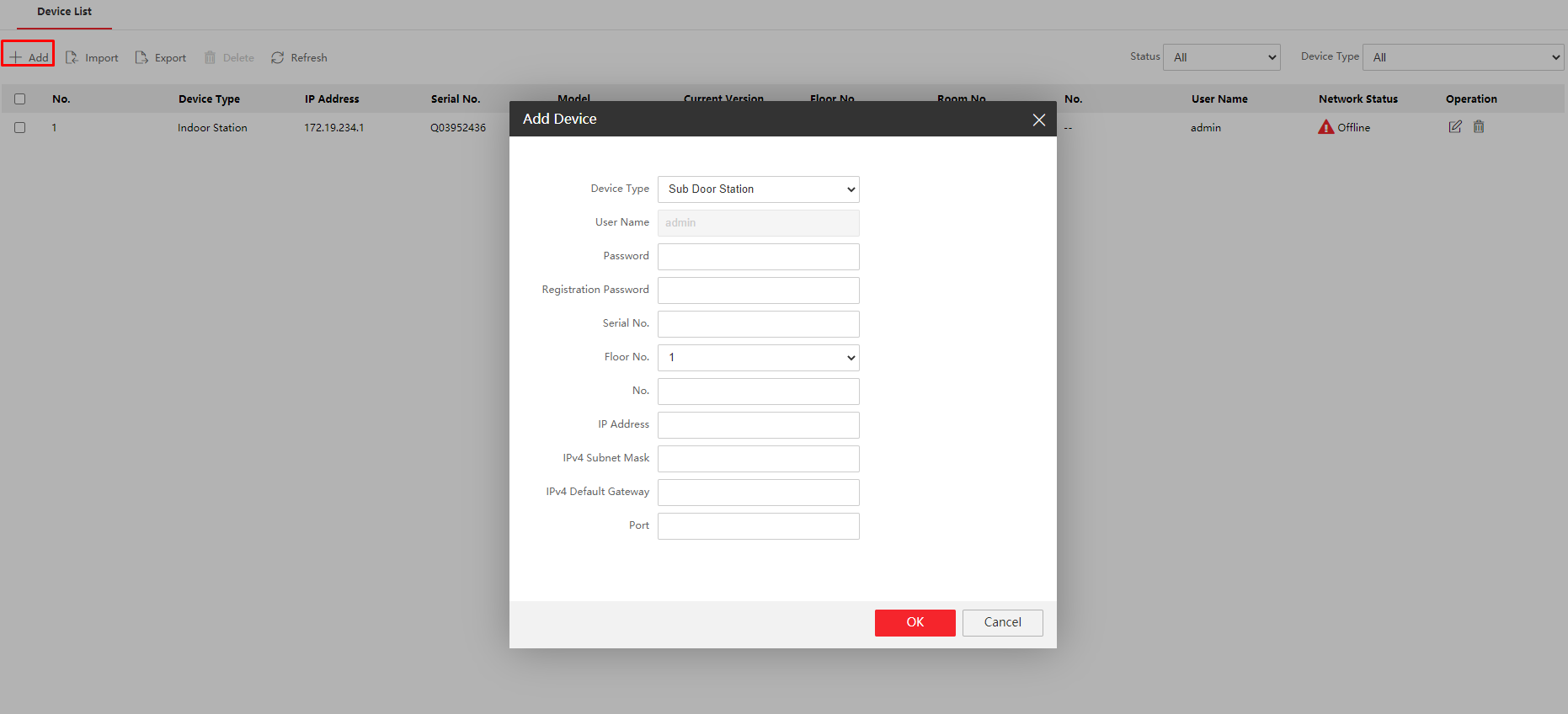

3. Then add the slave monitor.
4. The password must be the same as the one you have set on the monitor before, otherwise it will not work.
5. **The default port will be 8000.

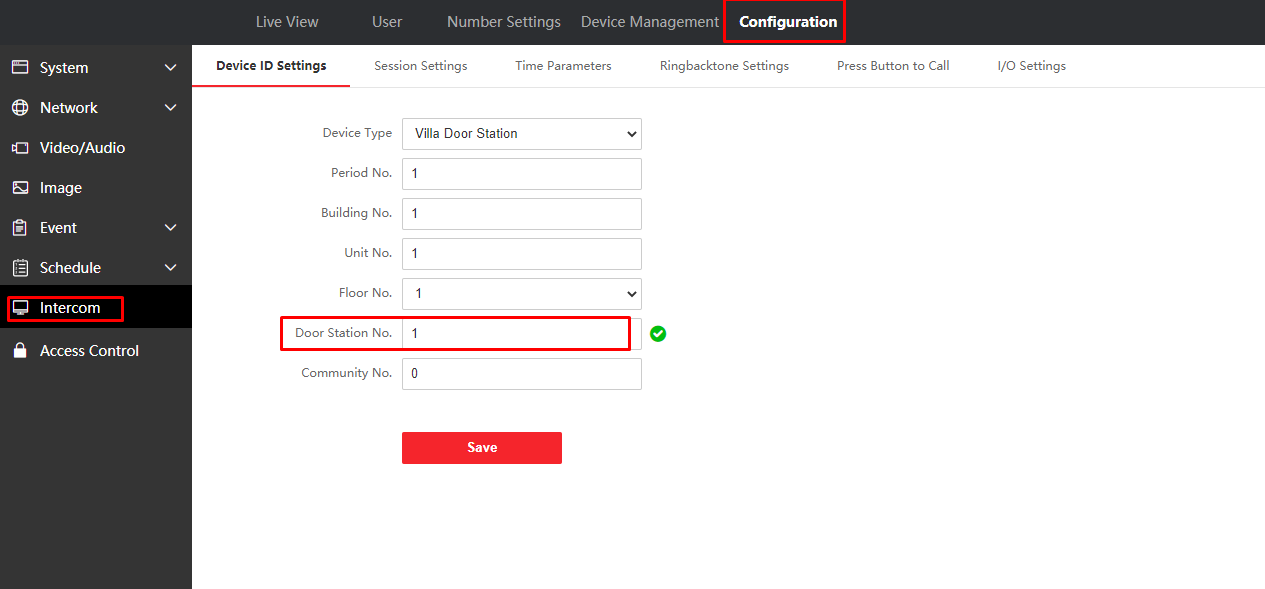

6. Open the browser of the other board and go to configuration --> Intercom --> Device ID Setting.
7. Change the door station parameter from a 0 to a 1, i.e. to make it a slave. The device will then reboot.
8. When the device has restarted, you will see that the menu has changed, i.e. the Device Management submenu no longer exists.
9.

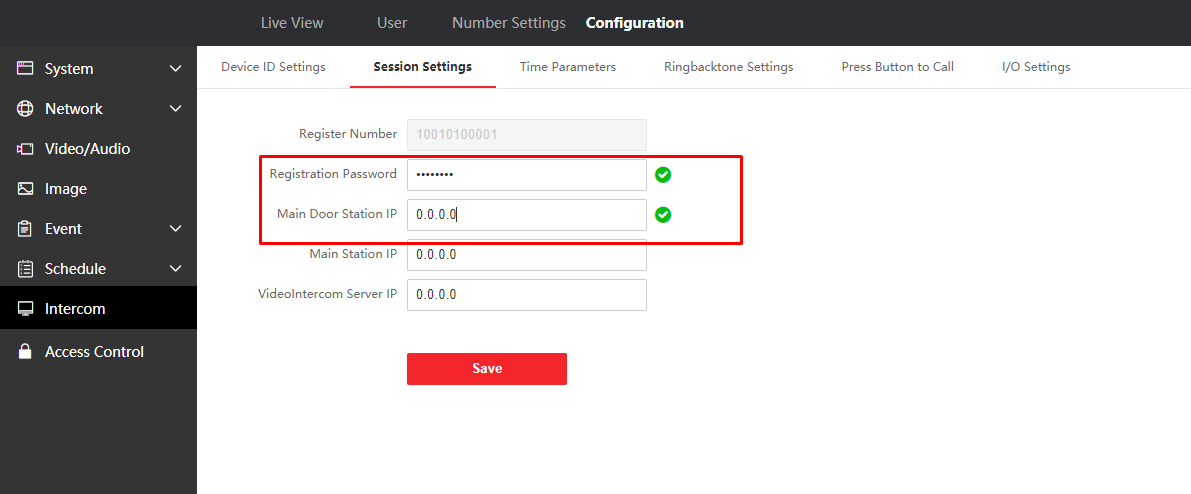

10. Finally, go again to "Configuration" --> "Intercom" --> "Session Settings" and enter the IP address of the master board and the password that was added earlier, which must be the same as that of the monitor.
11. Once these steps have been carried out correctly, the device will be configured as a slave and will make the calls to the monitor correctly.
