Network parameter configuration in CrossChex

This tutorial will explain how to modify the network parameters of a device from the Anviz CrossChex software.

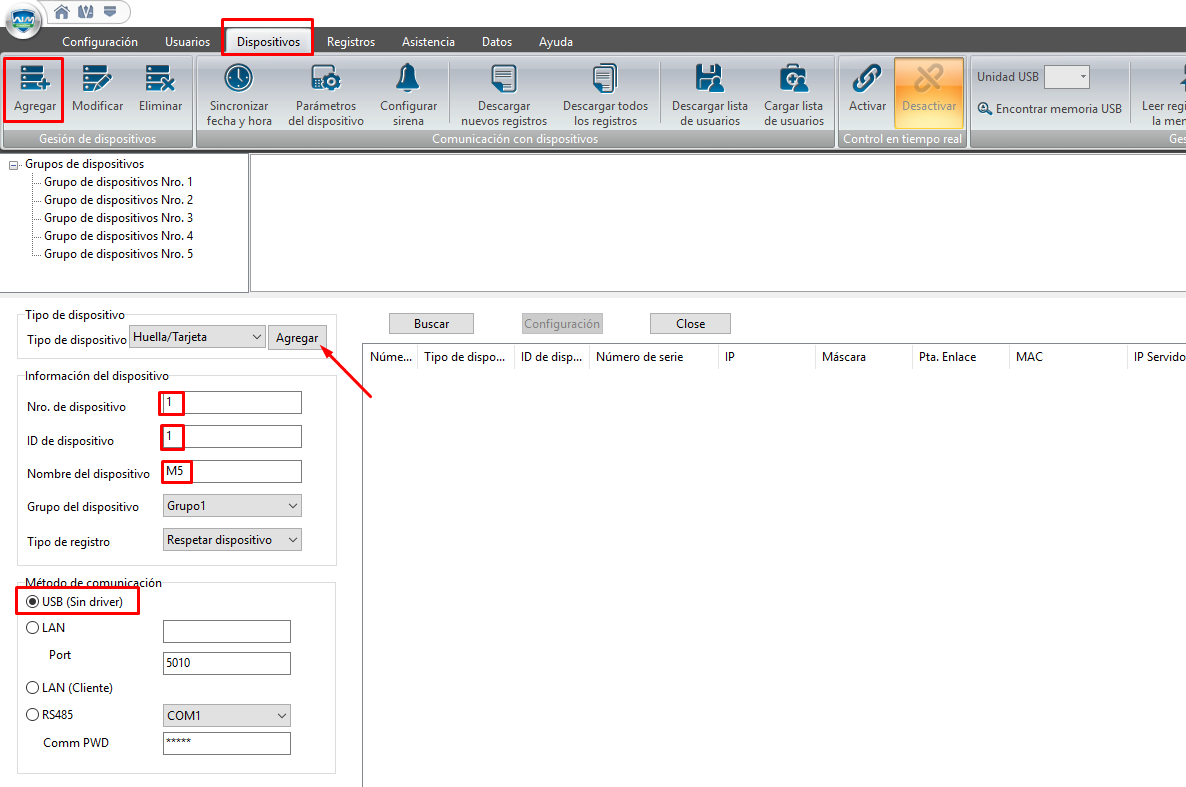

To change the network parameters of the device, you must first add it via USB. To do this, the following image is taken after connecting the device to the computer. In the DEVICES tab you click on ADD (in this example you add a device without Anviz M5 screen), because it does not have a screen, the ID number is put at random. You should make sure that for the method of adding you select: USB (without driver) and finally click on add:

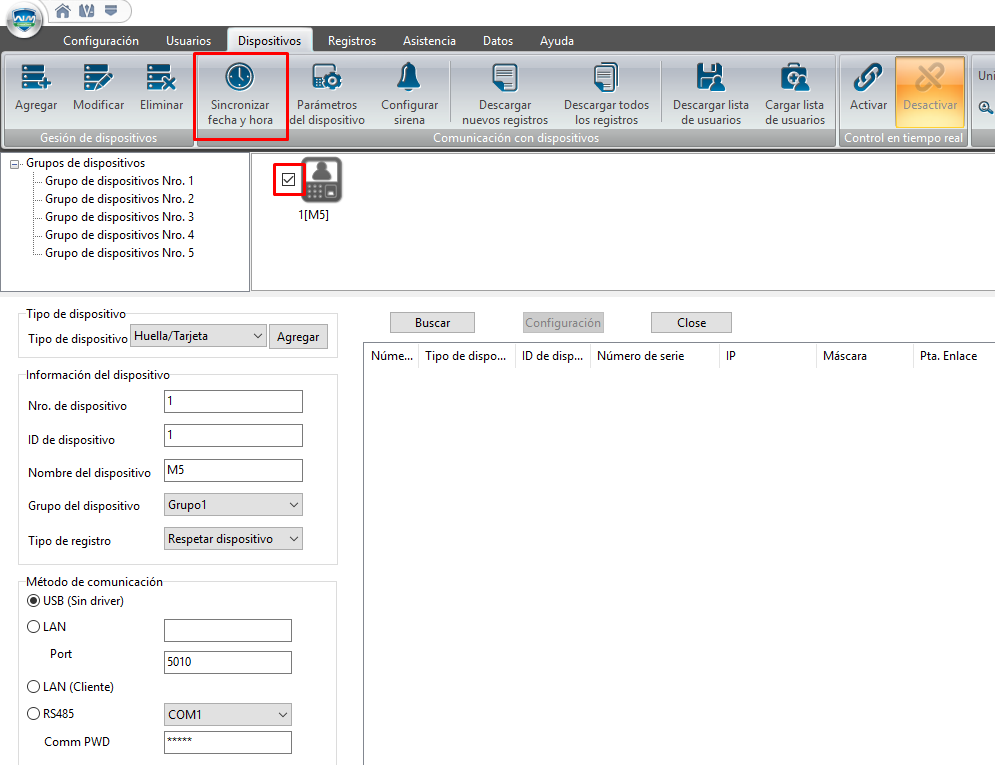

Once this action has been carried out, it is necessary to verify that the device is connected correctly. To do this, click on SYNCHRONIZE DATE AND TIME, selecting the device, as shown below:

Synchronization must be successful:

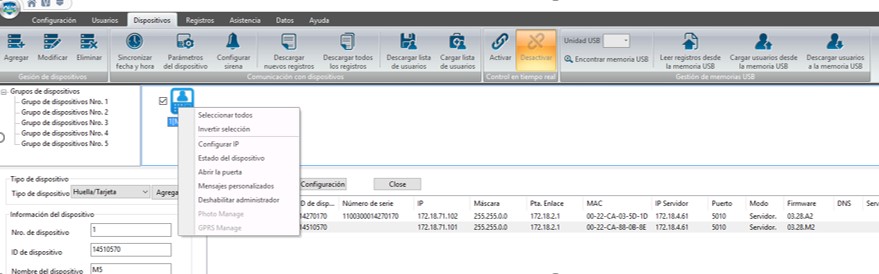

You can now configure the device parameters by right-clicking on the device and selecting "Configure IP":

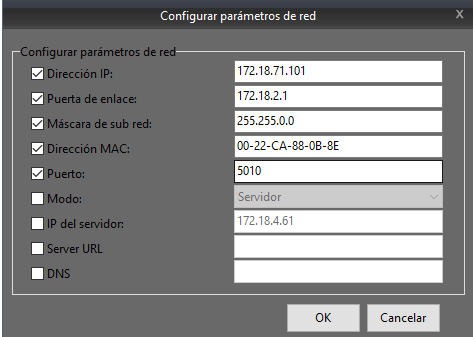

A window with configurable network parameters opens. These parameters must be included in the network in which you want to use the device (it is important do not modify the MAC address, as it is specific to each device):

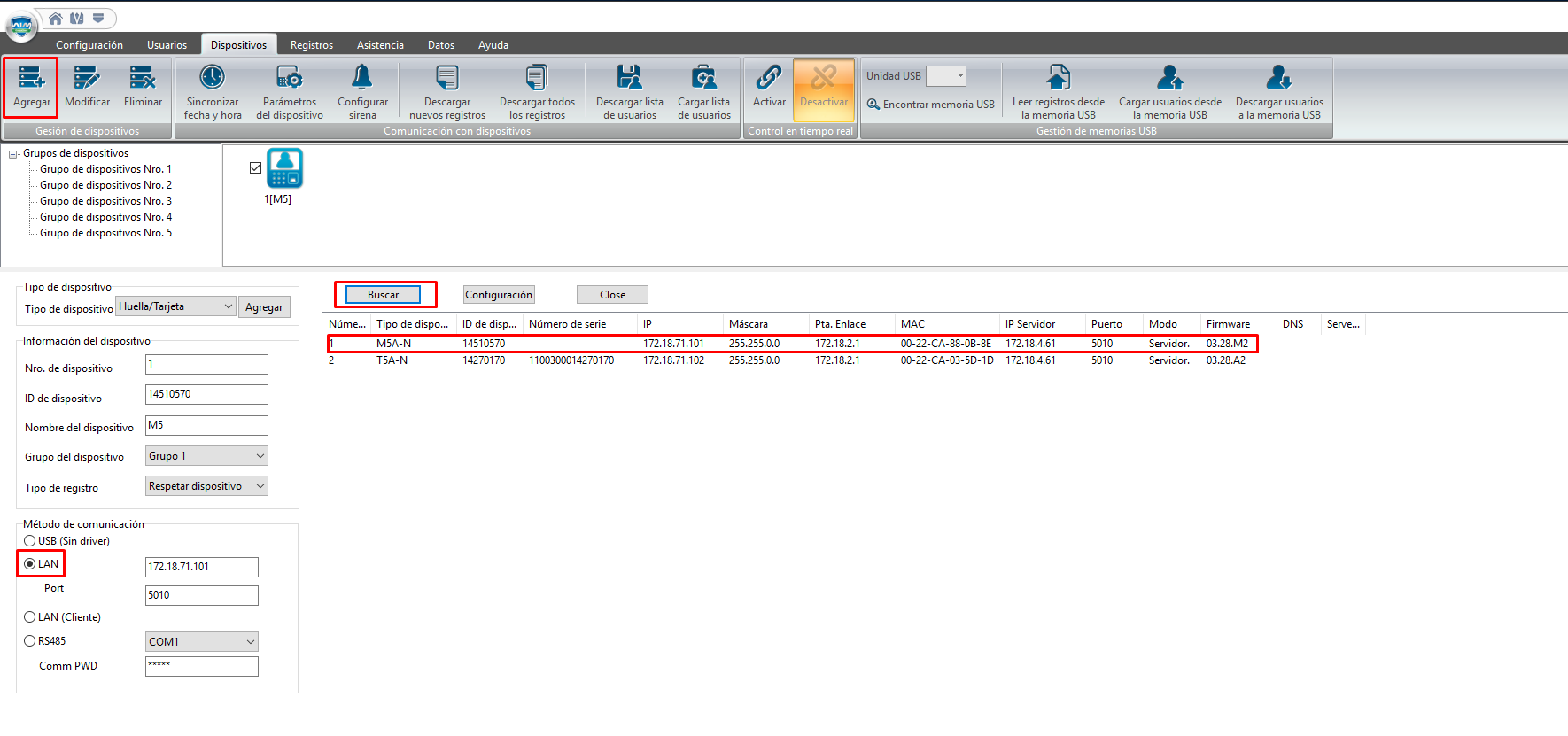

Once these parameters are loaded into the device, the device must be restarted and networked. If everything is correct it should appear in the network search list with the modified parameters:
