SF-AC3161MFDR-IP Wiring Installation

Note:

Avoid backlight, direct sunlight and indirect sunlight

For better recognition, there should be a light source in or near the installation environment

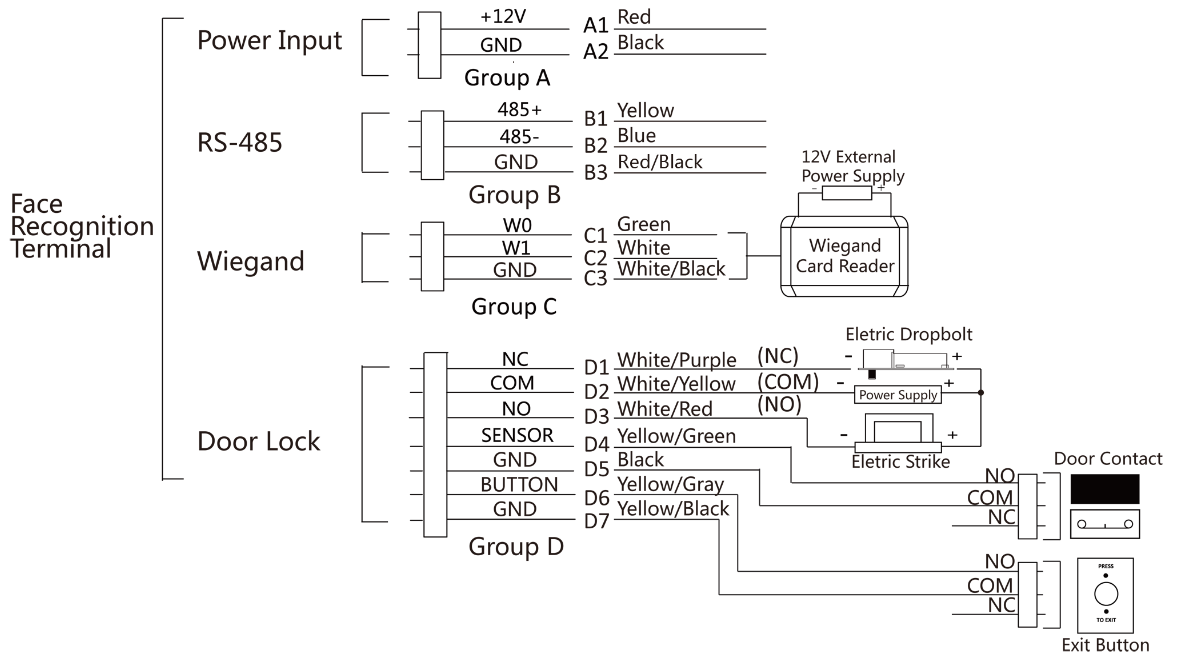

Normal wiring device

You can connect the terminal with normal peripherals.

Note:

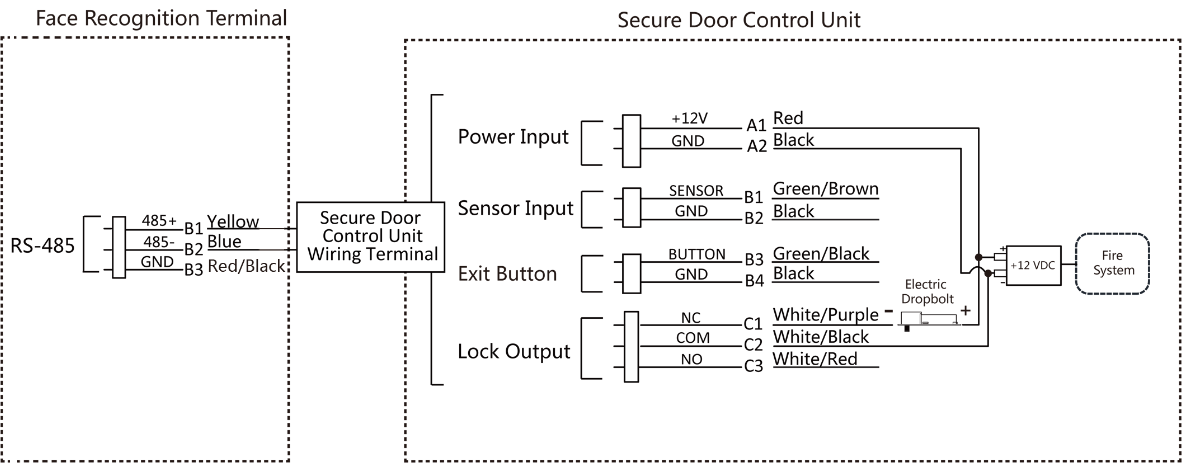

The safe door control unit must be connected to an external power supply separately. The suggested external power supply is 12V, 0.5A
