Simple board and monitor configuration

For this tutorial the R20A board + Monitor C315W.

The first step is to access the AKUVOX cloud installer to start the configuration.

Remember that all the configuration is done from the cloud and it is not necessary to use any software locally on the PC.

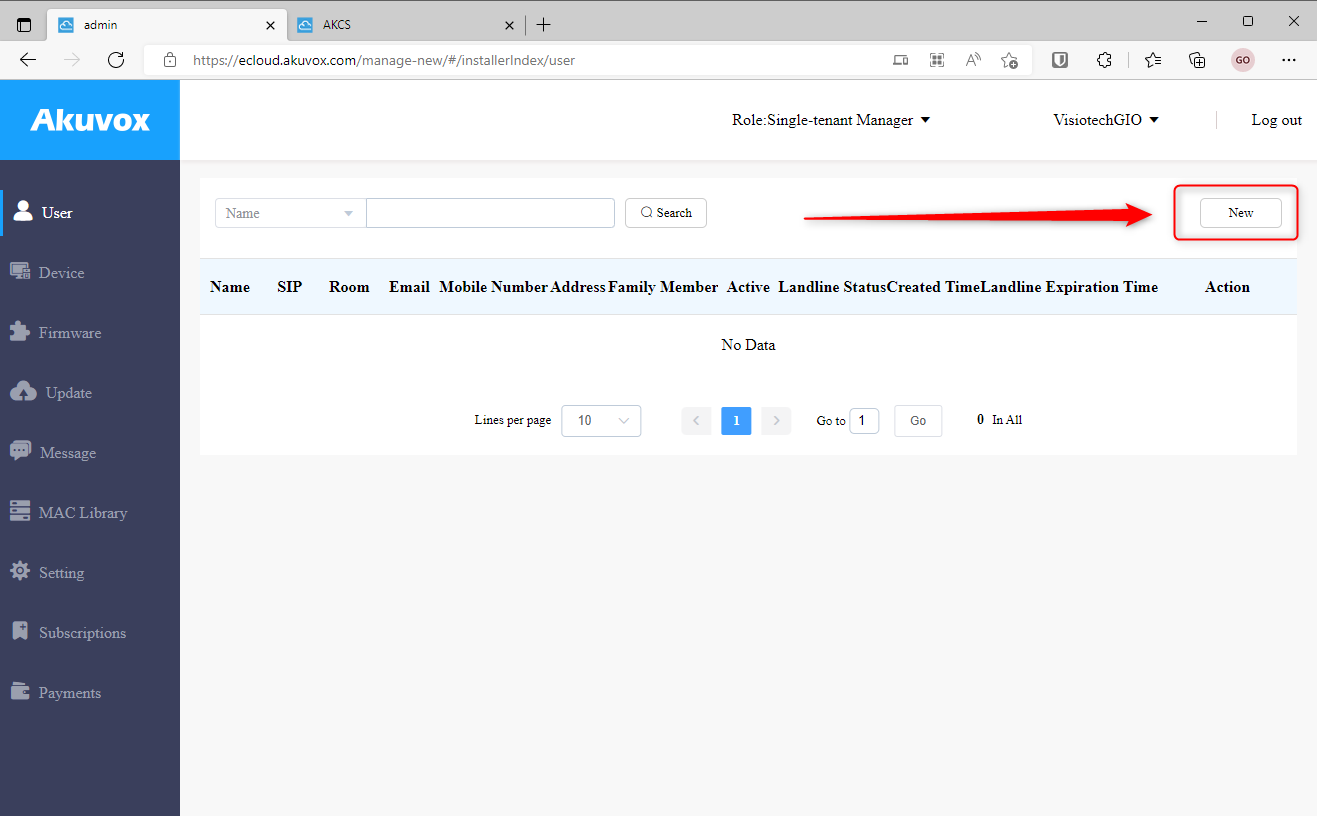

Once inside your cloud account, you must create a new "USER", this "USER" we will take as a reference as a project, therefore understand it as a new project.

Step 1 - Create USER (Project)

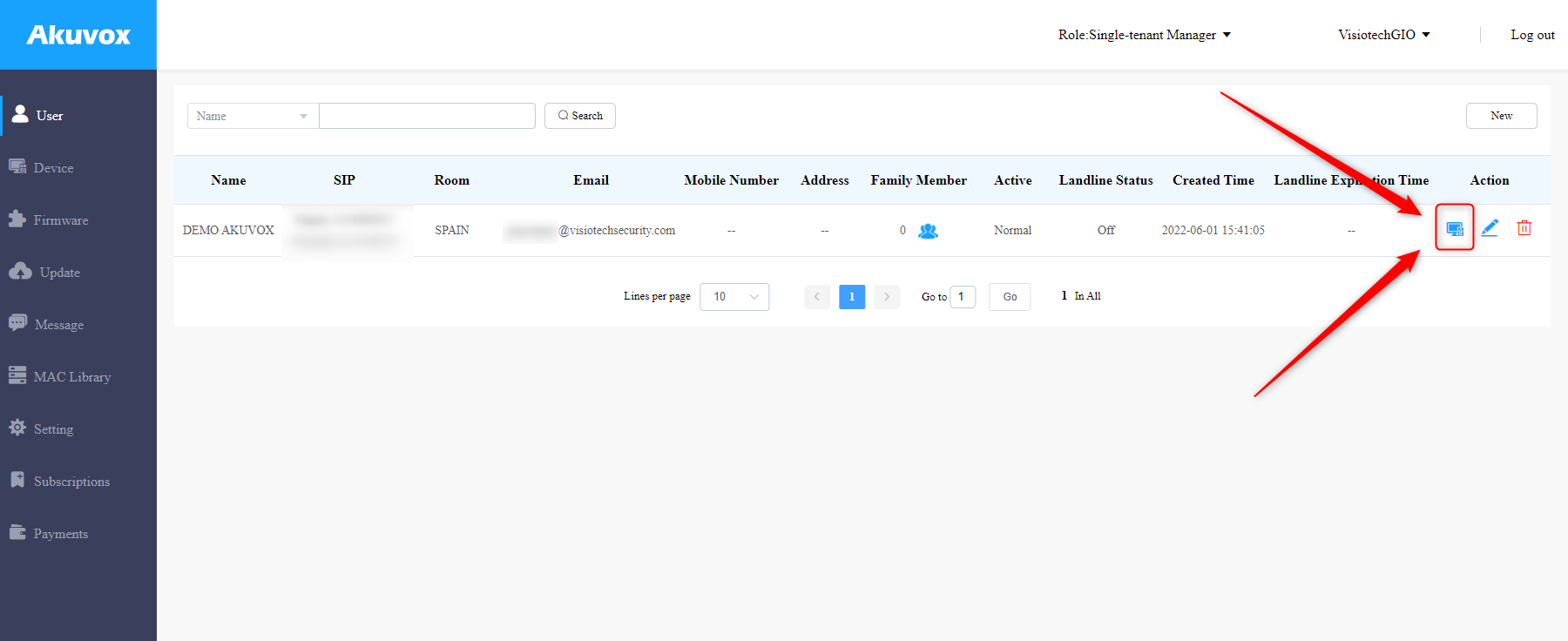

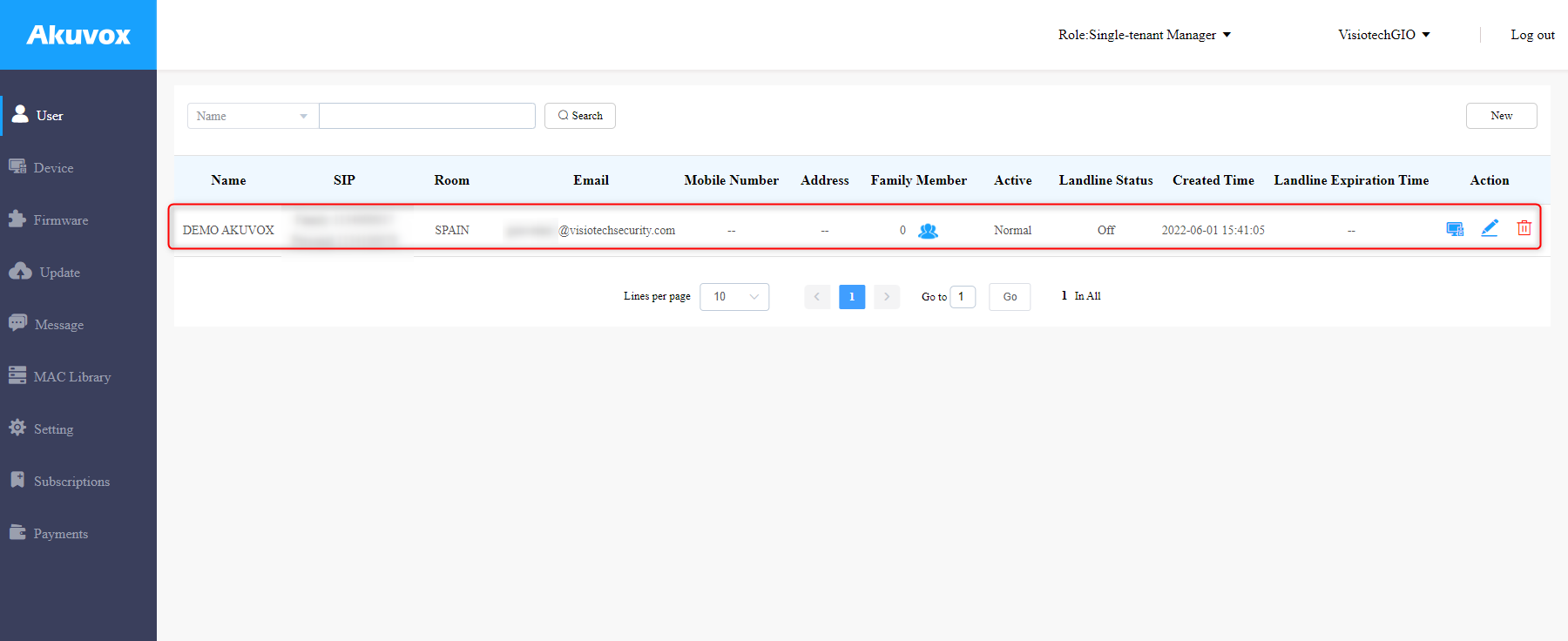

Once the project is created the result will be

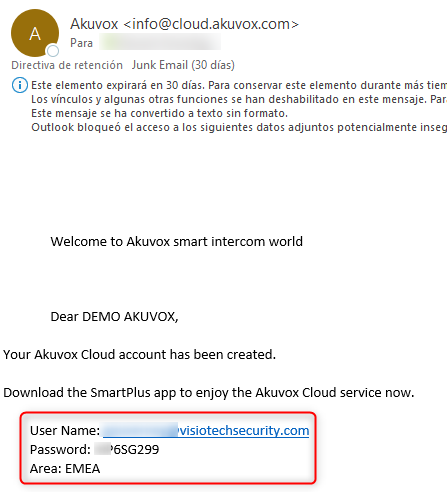

:IMPORTANT: the email must be the end customer, as it will be with this email that will access the Akuvox app to access the doorman. The password is generated automatically and you will find it in the same email.

Step 2 - Link the devices to the project.

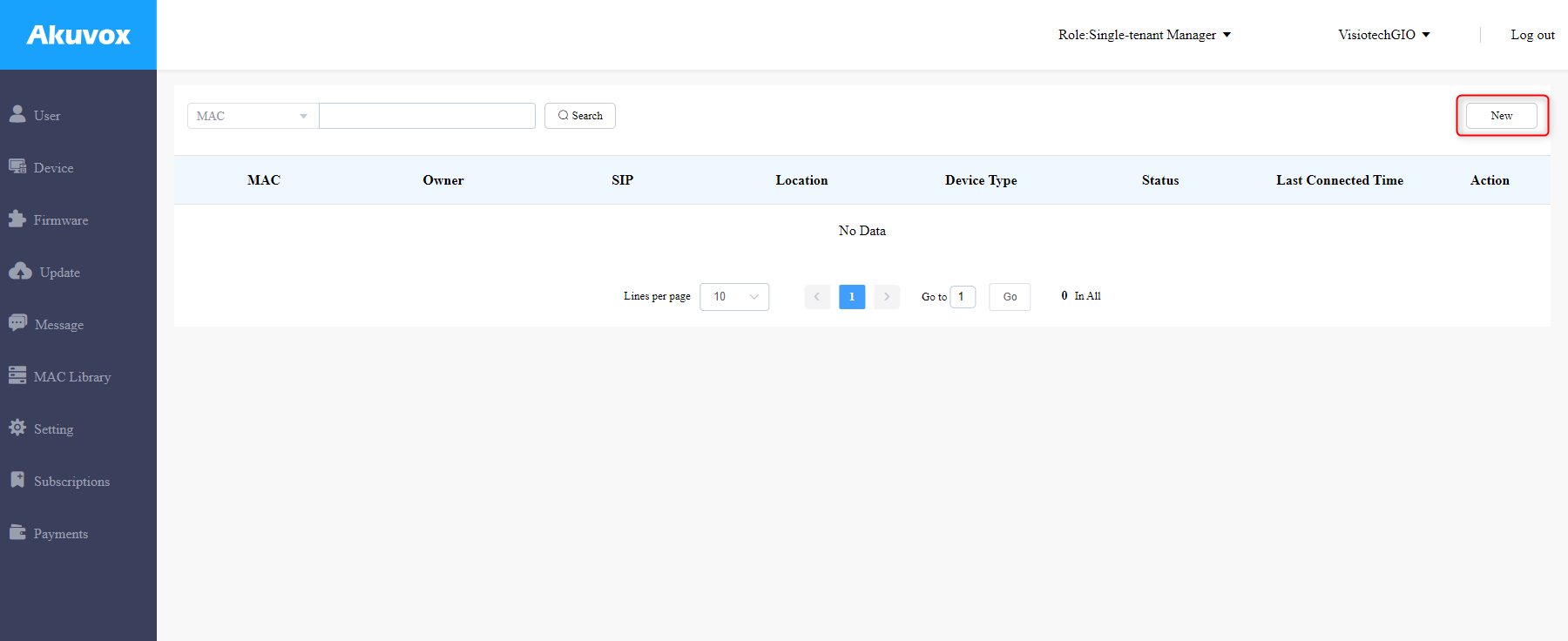

Choose "NEW"

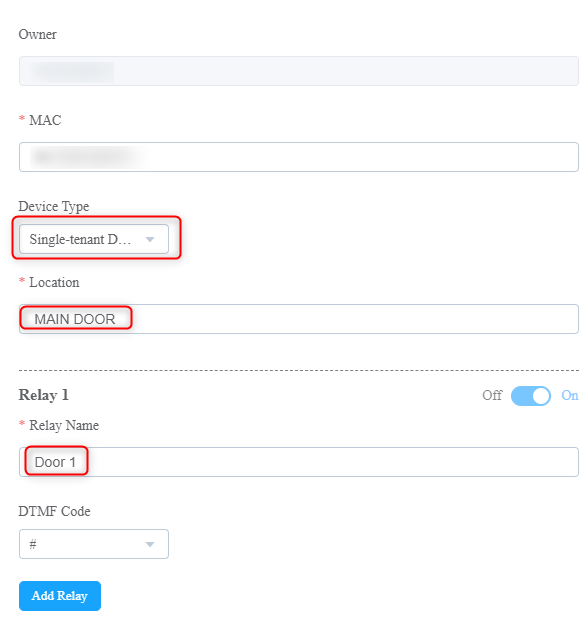

Once NEW is selected, select the type of device (Outdoor unit), we must choose "SINGLE-TENTANT DOORPHONE" and then apply a name for easy location and if necessary change the name of the relay associated to its respective door.

If there is a need, you can add the second relay.

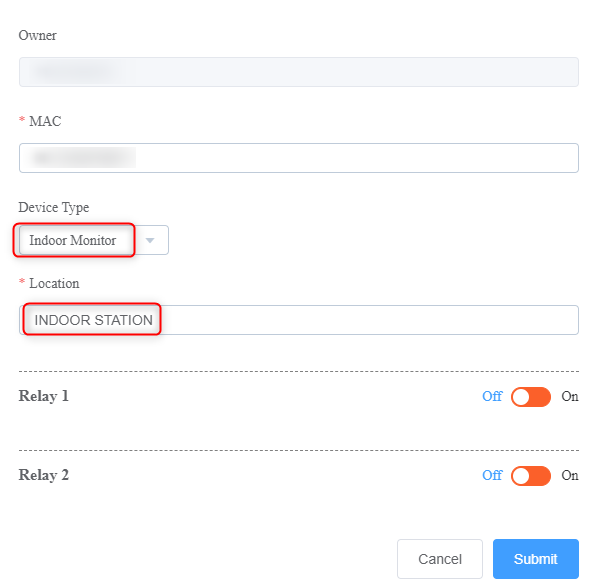

Step 3 - Repeat the process for the monitor (Remember that in AKUVOX the monitors also have a web interface).

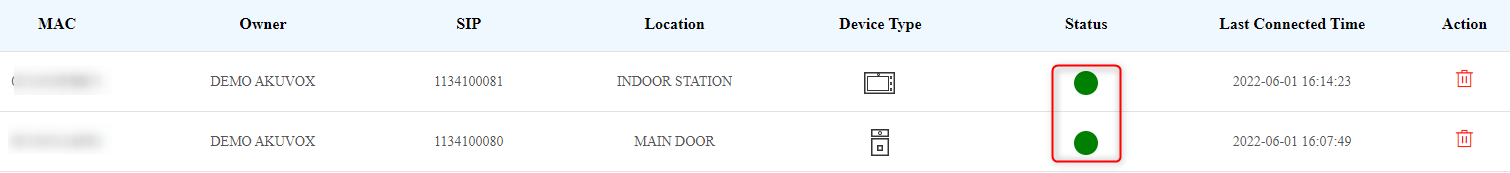

Once the project is created and the two devices are linked to the project, the cloud will take care of the configuration automatically.

--------

MOBILE CONFIGURATION

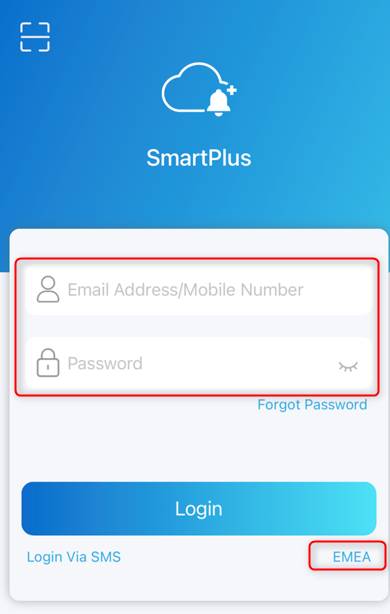

1 - Download the Akuvox SmartPlus appThe

login data is sent automatically when it is created in the project, for this reason it is very important to check if the end customer's email is valid or not

.

Very important also to select the area correctly, this information is also in the email.

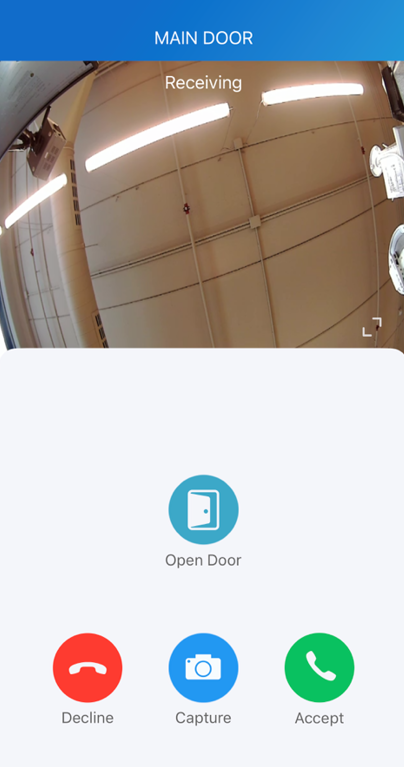

Once the access to the app has been identified, the devices will be online and working.
