TC-D55xx | How to change output resolution

Environment:

• TC-D5523 Series

Procedure:

1. Connect the camera to an analog monitor.
2. Press down into the button to access the on-screen display "MENU" from the camera.

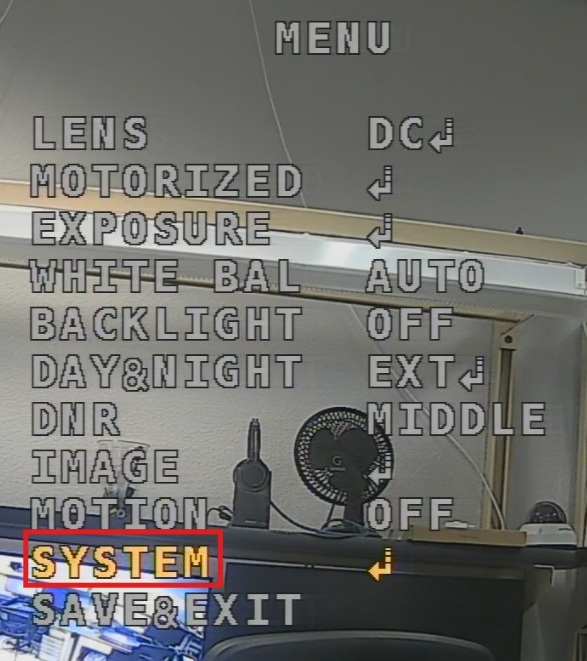

3. Press downward on the button to navigate to the "SYSTEM" menu


4. Press down into the button to select the "SYSTEM" menu.

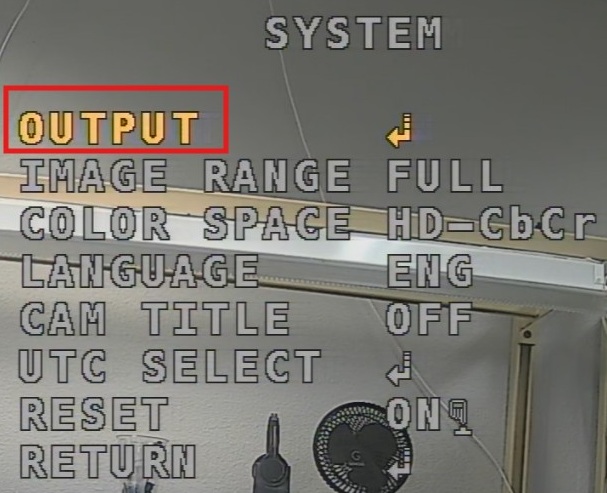

5. Press down into the button to select the "OUTPUT" menu.

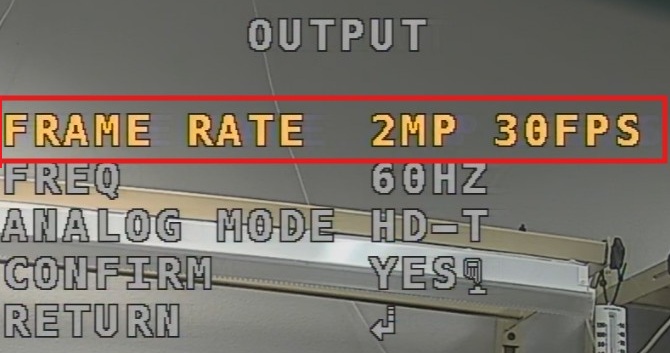

6. Press "Right" on the button to switch the resolution option.

7. Press down into the button to select changes.

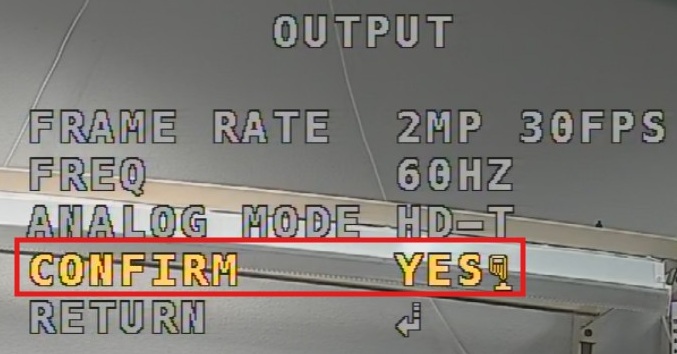

8. Press downward on the button to navigate to "CONFIRM."
9. Press down into the button and hold until the camera refreshes

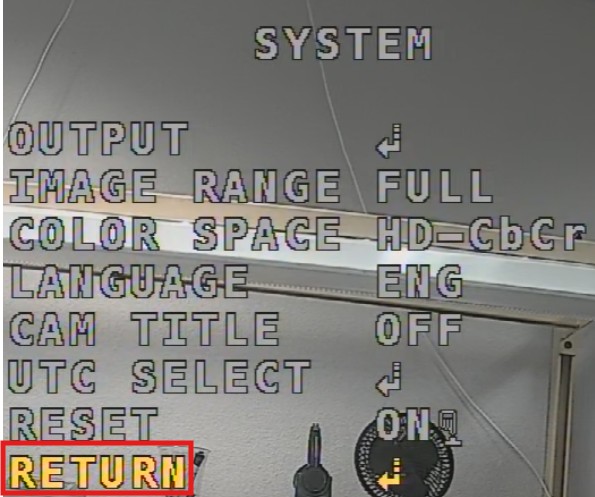

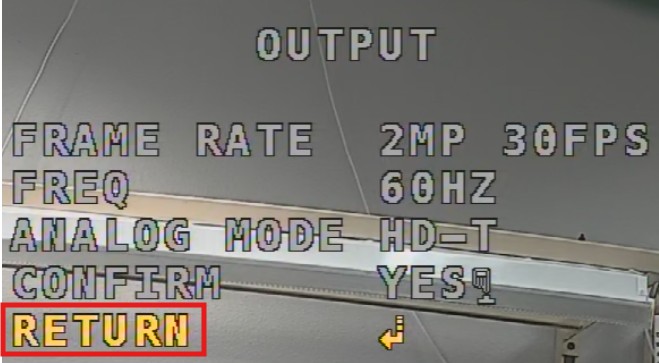

10. Press "Downward" on the button and select "Return" by pressing down into the button.

11. Press "Downward" on the button and select "Return" by pressing down into the button.

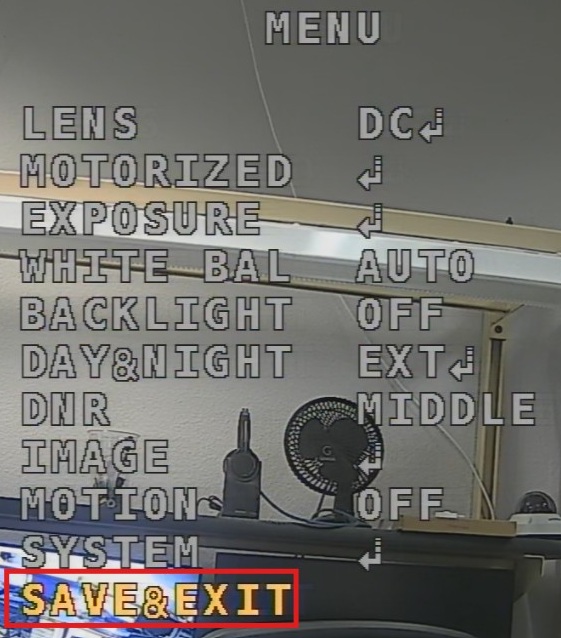

12. Press "Downward" on the button and select "SAVE&EXIT" by pressing down into the button.

13. Done.
