Activation of excessive temperature alarm output on ZK-PROFACEX-TD / ZK-PROFACEX-TD-T / ZK-SPEEDFACE-V5L-TD by ZKTeco

Zkteco's access control thermographic terminals can be configured so that their alarm output is activated when a reading with incorrect temperature feedback is taken.

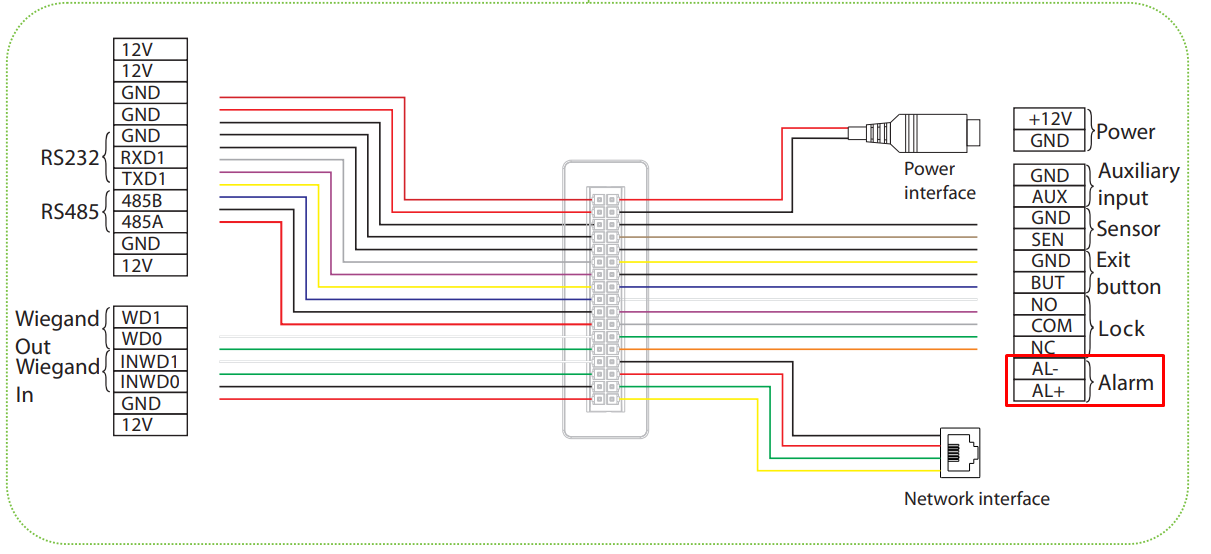

The alarm output is an open dry contact that will be closed when the alarm event occurs:

The following option must be activated in the terminal, which will activate the alarm output when reading with excessive temperature: "Activate external alarm"

Once the option is activated, when it detects a temperature above the set temperature the alarm output will be activated and kept closed until a person with normal temperature is registered (or deactivated from the software).
