Fix a Recorder That Went Offline
This guide helps you troubleshoot a Swann Security recorder (DVR, NVR, NVW, MaxRanger4K™, AdvancedX™) that has lost remote access and is no longer showing as online in the app.
By the end of this guide, your goal is to see Agent Cloud Link Status: Connected
Before You Start (Quick Checks)
- Make sure the recorder is powered on
- Router is powered on (and you have the Wi-Fi credentials if using wireless setup)
- Have access to the recorder’s local menu (monitor + mouse)
- Choose Your Recorder Type:
If you haven’t already, review the basic requirements for getting your recorder online:
What You Need to Make Your Swann Security Recorder Go Online
Pick Where You Want to Start
Choose the situation that best matches what happened:
- Agent Cloud Link Status is Connected, but I can't access my cameras remotely →
- Changed ISP or router →
- Moved the recorder to a different location or network →
- Nothing changed, it just stopped working →
- It went offline after power outage →
- Using a wireless (NVW) recorder and connected to Wi-Fi →
Scenarios
Changed ISP, Router, or Network
(Most common reason a security recorder loses remote access)
When you change internet providers, routers, or move homes, your network settings also change. This can prevent the recorder from getting a valid IP address.

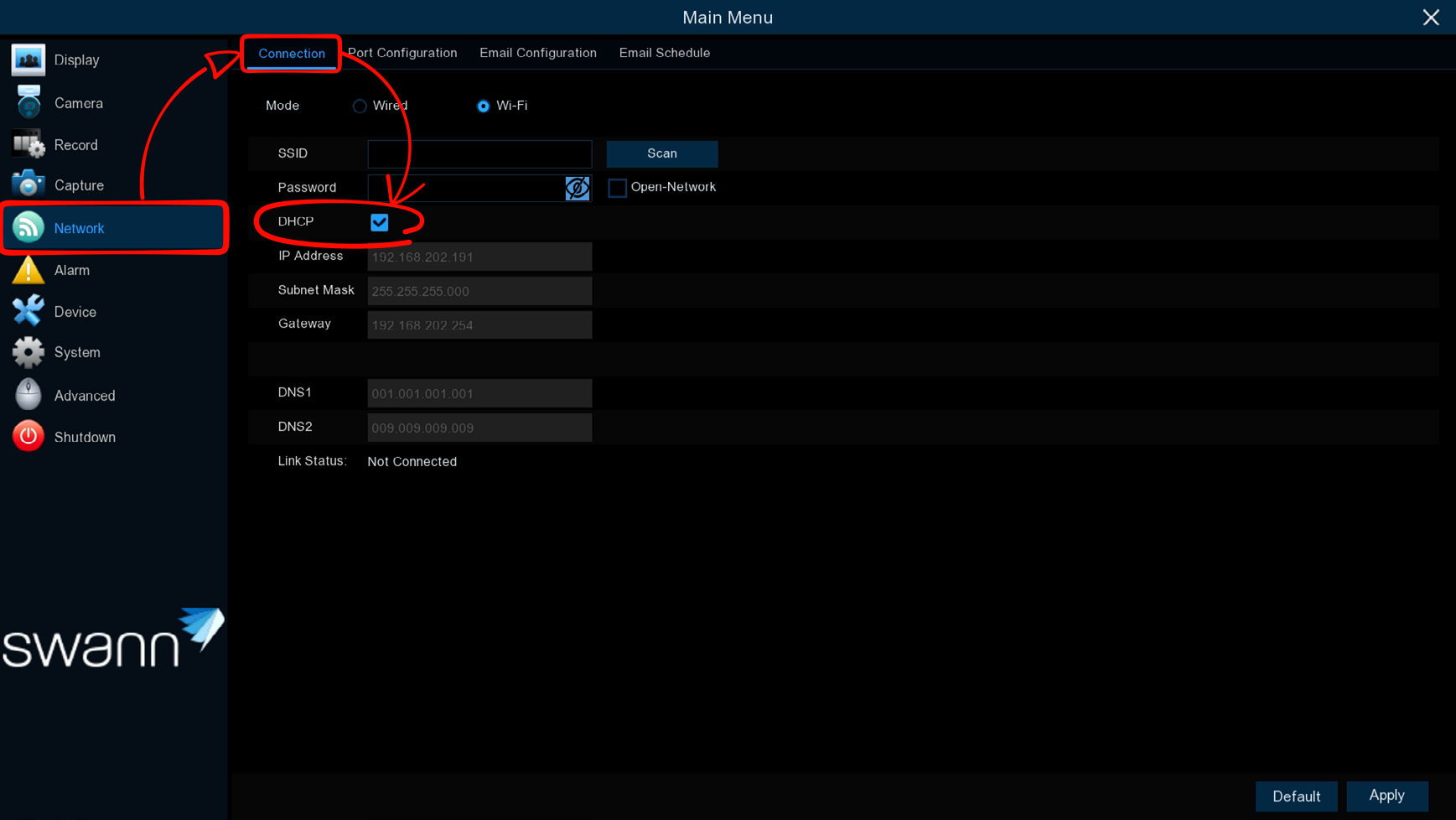

Set the Recorder to DHCP

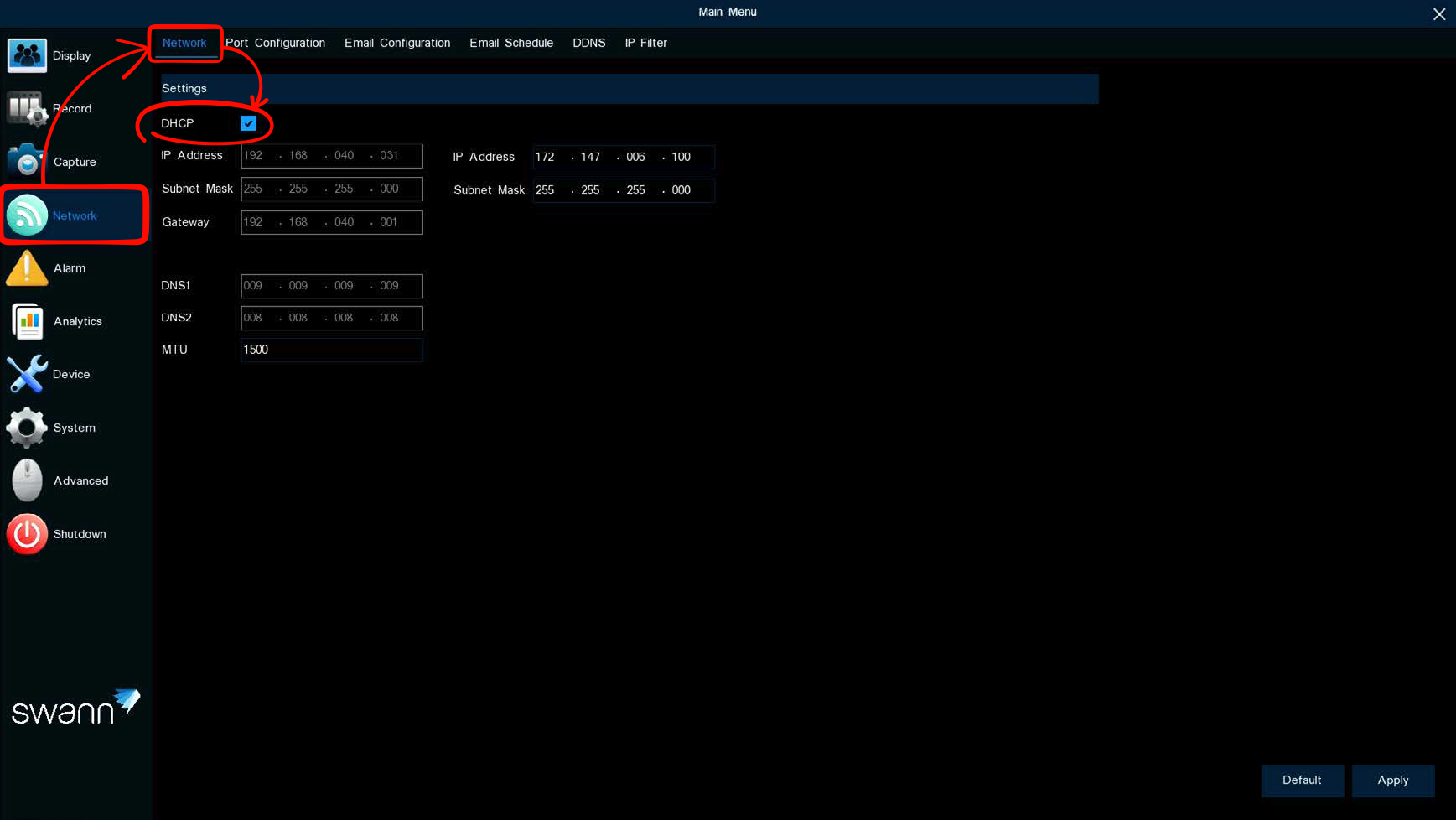

- On the recorder, go to Main Menu > Network > Network / Connection
- Make sure DHCP is selected or enabled.
- Click to save the settings
- Reboot the recorder
Why this helps? DHCP allows your router to automatically assign a compatible IP address to the recorder.
If That Didn’t Work

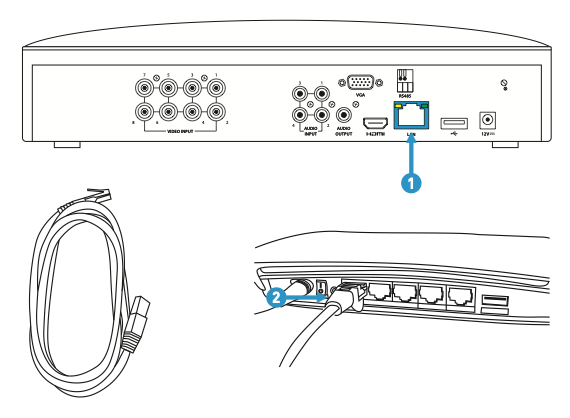

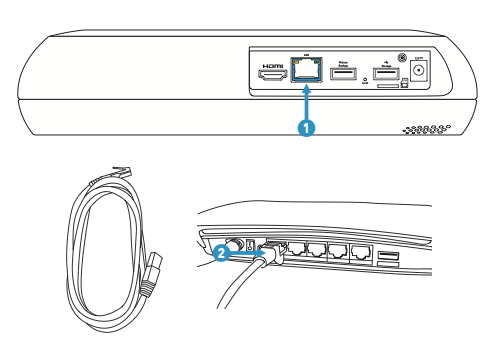

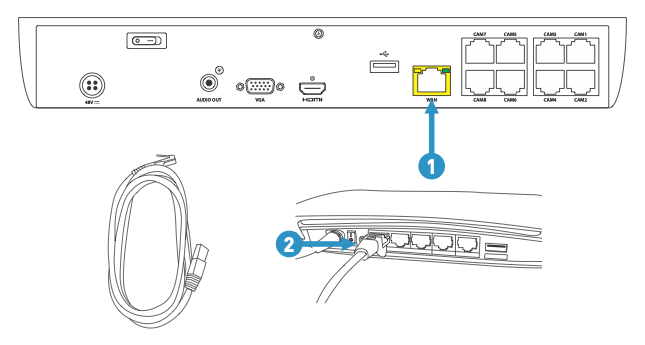

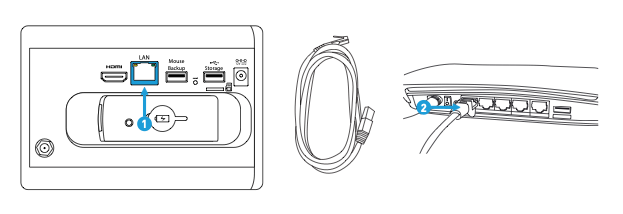

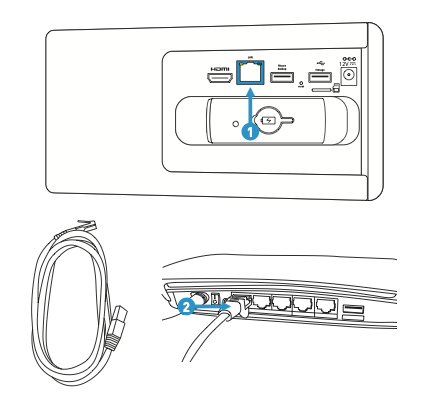

- Ensure the Ethernet cable is firmly connected
- Confirm the cable goes directly to the router, not a modem-only port
- Reboot both the router and recorder
Nothing Changed, But It Stopped Working
This is less common, but it does happen. Temporary network issues or failing cables are usually the cause. Even a sudden power outage can disconnect the system.
Power Cycle Everything
- Turn off the recorder and router (and modem, if separate)
- Wait 30 seconds
- Power everything back on
- Check Agent Cloud Link Status
Why this helps? Rebooting clears temporary communication errors between devices.
Check the Ethernet Cable
If the recorder is wired directly to the router:
- Replace the Ethernet cable with a known-working one
- Reboot the recorder and router again
If still offline:
- Plug the cable into a different LAN port on the router
- Reboot everything once more
If it works:
The recorder is fine—the original router port or cable was faulty.
Bypass Intermediate Devices
If your recorder connects through:
- A wall Ethernet port
- A network switch
- A wireless extender or powerline adapter
Try this:
- Connect the recorder directly to the router
- Reboot both devices
Why this helps? Intermediate devices can fail or lose configuration without obvious signs.
Last Resort for Wired Recorders
If Agent Cloud Link Status still shows Disconnected:
- Perform a Factory Reset
- Choose Reset Type: Network Only
NVW Recorders and Connected to Wi-Fi
(For recorders connected via Wi-Fi)
If You Did NOT Change the Router
- Reboot the NVW recorder
- Reboot the router
- Check Agent Cloud Link Status
If You Changed the Router: You must reconnect the recorder to Wi-Fi
Best Practice (Recommended) – Set your new router’s Wi-Fi name (SSID) and password to match the old one.
This allows all wireless devices—including the recorder—to reconnect automatically.
If Wi-Fi Credentials Were Changed
- Open Main Menu
- Go to Network > Connection
- Re-enter the correct Wi-Fi name and password
- Save and reboot
Follow this article for a more detailed instruction
If It Still Won’t Connect: Perform a Factory Reset
- Select Reset Type: Network Only
- Reconfigure Wi-Fi settings afterward
Isolation Test: Is It the Recorder, Phone, or Network?
This quick test helps identify where the problem is coming from by checking one thing at a time.
Try Mobile Data Instead of Wi-Fi
- On your phone (Phone A), turn Wi-Fi off
- Turn mobile data (4G/5G) on
- Open the Swann Security app and try live view
Why this helps? If this works, your recorder is online. The Wi-Fi network you were using may be blocking access.
Try a Different Phone (optional)
- Sign in to your Swann Security account on another phone (Phone B)
- Try viewing the cameras
Why this helps? If it works on another phone, the issue is with Phone A or its app, not the recorder.
Tip: If Phone B works on the same Wi-Fi, the app or phone settings may be the cause.
Turn Off Any VPN
- Disable any VPN on your phone
- Restart the app and try again
Why this helps? VPNs can block secure connections needed for remote viewing.
What the Results Mean
- Works on mobile data → Wi-Fi network issue
- Works on another phone → Phone or app issue
- Works after VPN is off → VPN was blocking access
In these cases, the recorder does not need further troubleshooting.
Final Check: Confirm the Recorder Is Online
On the recorder:

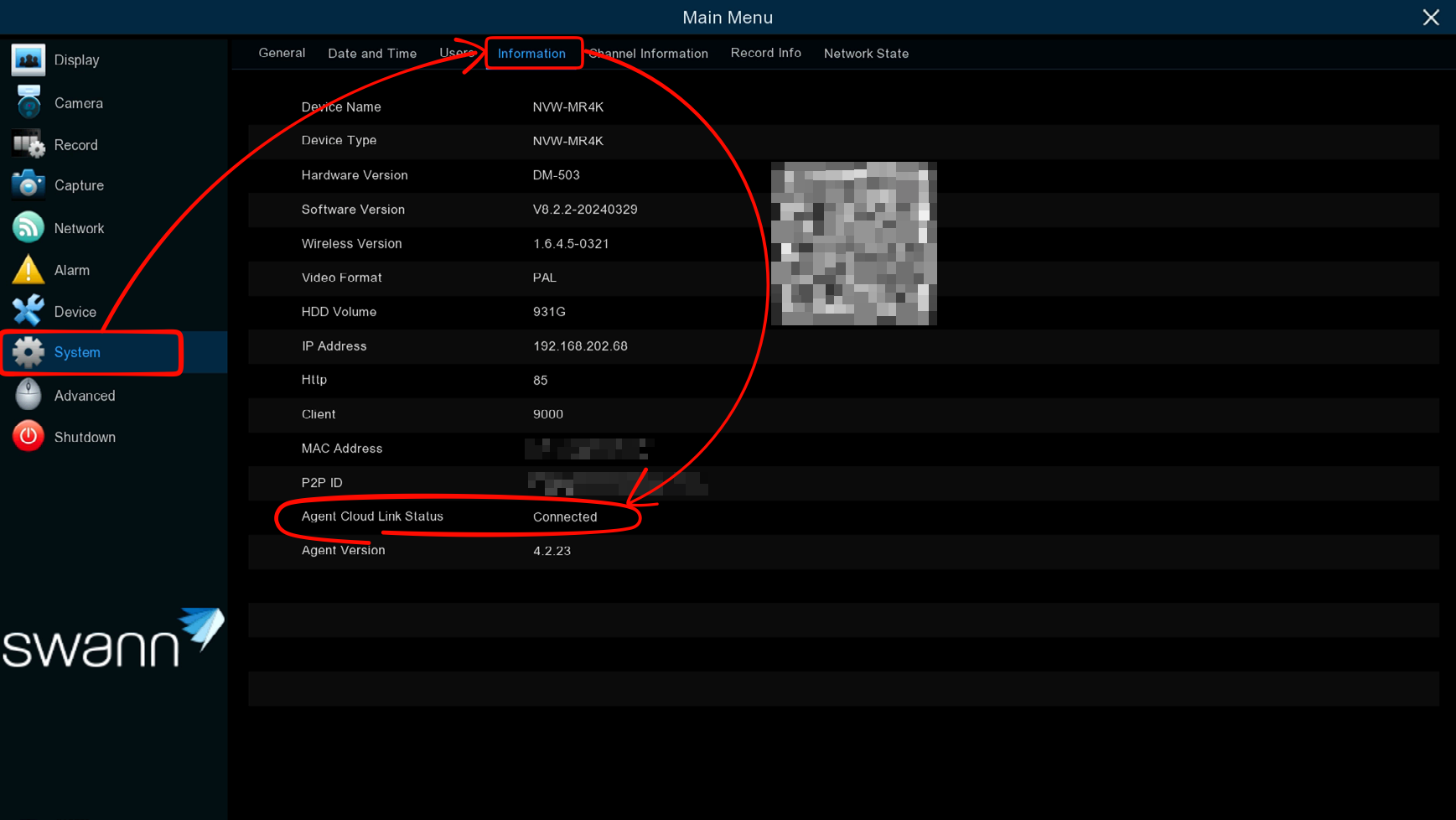

- Go to Main Menu > System > Information
- Check if Agent Cloud Link Status:
Connected
This means your recorder is successfully back online and accessible remotely.
Agent Cloud Link Status is "Connected" but you still can't access it remotely? → Perform the Isolation Test
Summary & Next Steps
- Network changes (ISP, router, moving homes)
- Wired vs wireless recorder troubleshooting
- Cable, router port, and extender checks
- When and how to reset network settings only
Still Not Working?
If the recorder still won’t show Connected, contact Swann Support with:
- Recorder model number
- Network setup (wired or wireless)
- What steps you’ve already tried
