How to activate the relay output by intrusion event in Xtralis

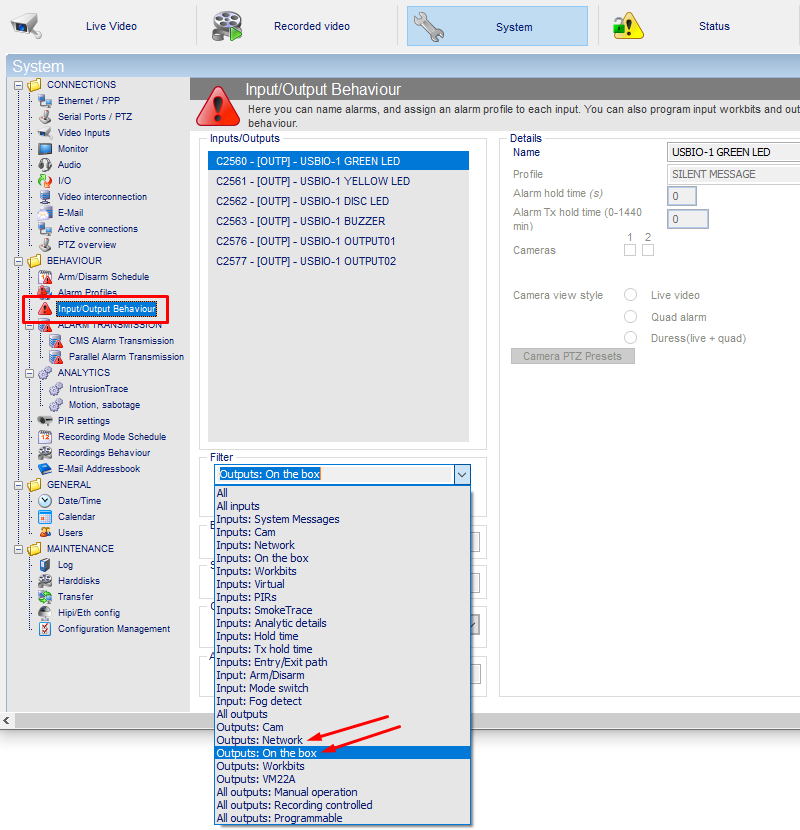

To activate a relay output in Xtralis (either the one integrated in the unit or through the relay module) due to an intrusion event, configure it in the Input/Output behaviour section by selecting the option of outputs in the box (for units with relay inputs and outputs) or network (for units with input/output module, added as the Gateway)

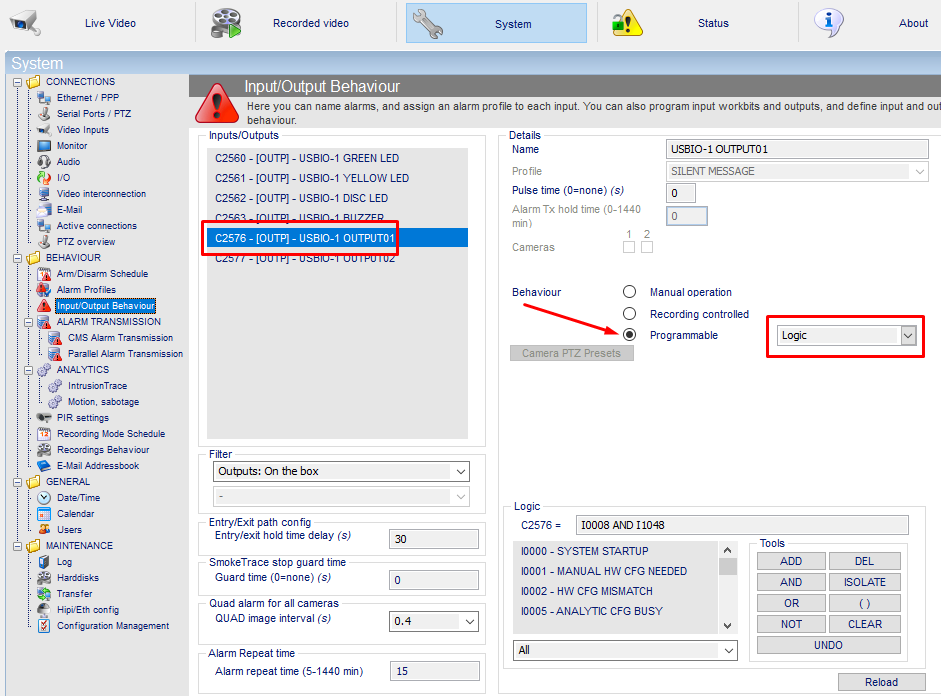

Select the output you want to activate and configure it in programmable mode:

Logical operations will allow us to define in which mode that output will be activated with combinations in which several events have to be executed at the same time or by any of the two, for example:

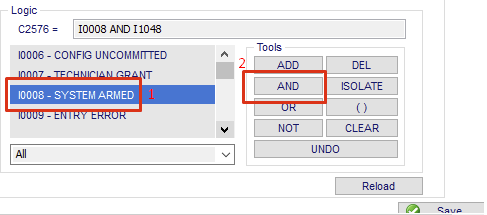

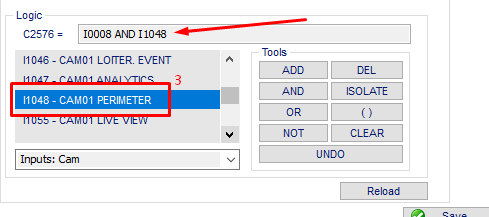

• Armed System AND Perimeter of camera 1

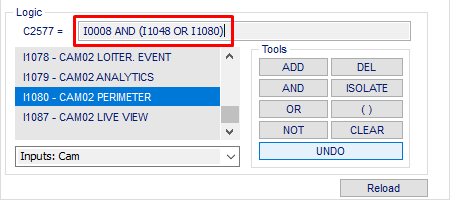

• Armed system AND Perimeter of any of the cameras (in this case of camera 1 and 2)

In this case emphasize the OR brackets, since they are logical operators and the meaning would change.
