How to configure the SNMP monitoring service on SAFIRE (or Hikvision) equipment

The steps to follow are hereby presented:

- install the specific MIB search engine

- log into the recorder via another search engine (e.g. Internet Explorer)

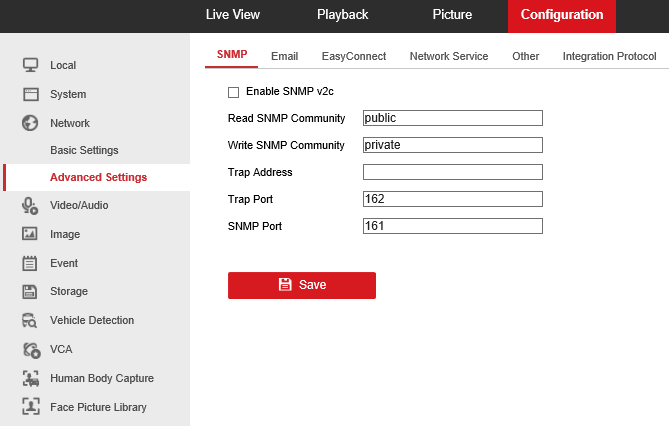

- navigate the machine menu as follows: Configuration-->Network-->Advanced Settings-->SNMP, and once entered the section of interest click on Enable SNMP v2c

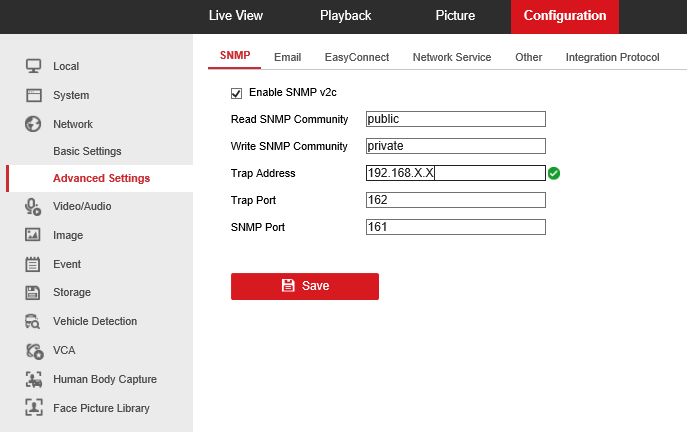

- insert in the Trap Address tab the IP address of the computer on which the MIB has just been installed and click on Save

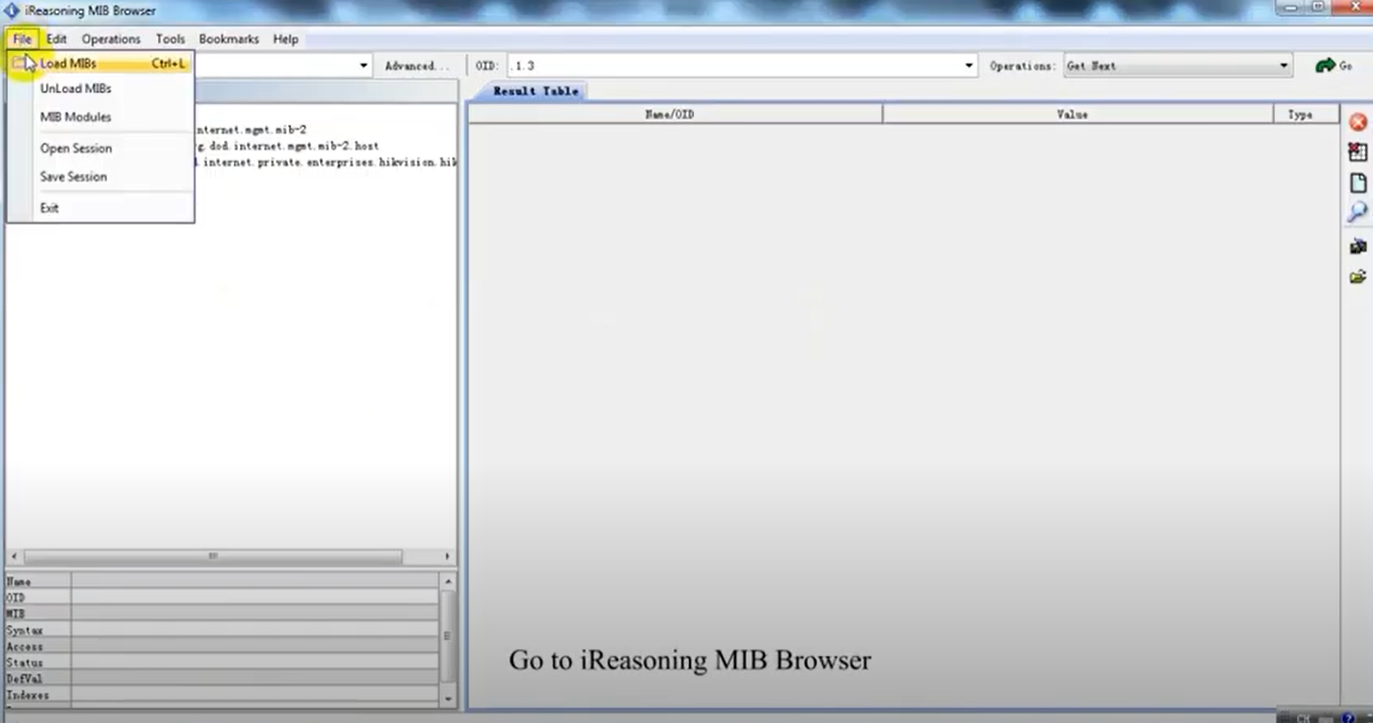

- click on File and then on Load in the MIB search engine

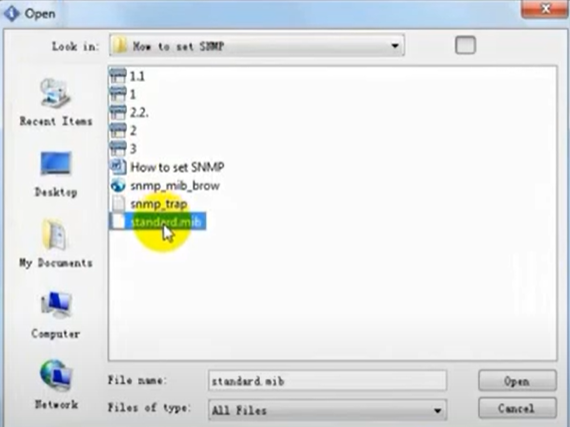

- open the SNMP file you want to use

- insert, in the upper left bar, the IP address of the recorder and click on Advanced Parameters

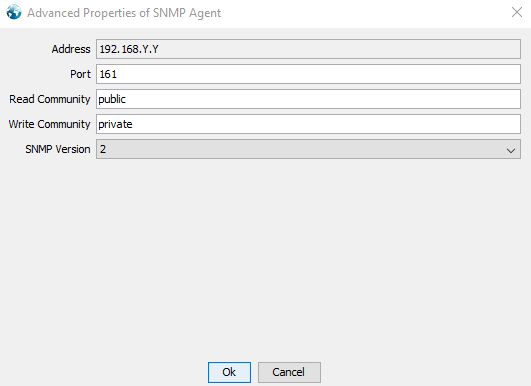

- fill in the fields of the window that opens with the same data as previously set in the configuration menu of the recorder (except for the IP address, clearly) and click on Ok

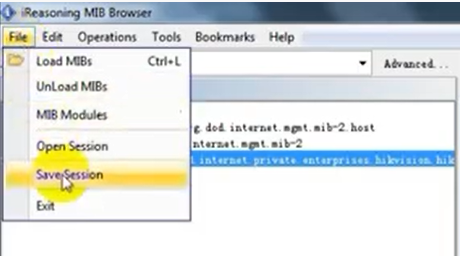

- click on File again, then on Save Session and choose a path to save the configuration

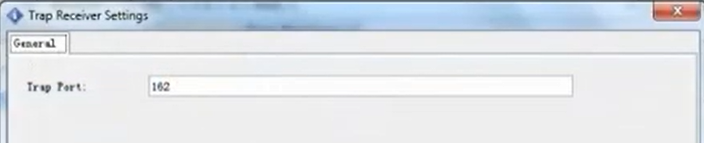

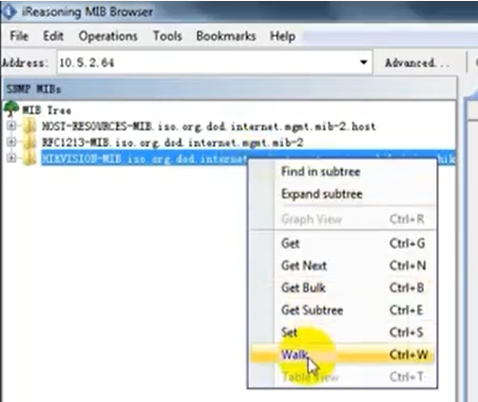

- click on the created path, then click on Walk; further on Tools and Trap Receiver to also configure that port (in particular in Tools-->Option), which in the example above we had configured in the recorder as the 162

In this way we can already visualize, in the bar called Operations, all the start/restart/stop events of the recorder.
