How to install a hard disk drive if the DVR without the hard drive cable?DT81BC & DT81BD

Applies to: DT81BC & DT81BD

DVR can record and playback only after a hard disk is installed. Otherwise, you can only preview the real-time recording.

Note: Before installing a hard disk drive (HDD), please make sure the power is disconnected from the DVR. Please make sure you are using the surveillance hard drive instead of PC hard drive.

Steps:

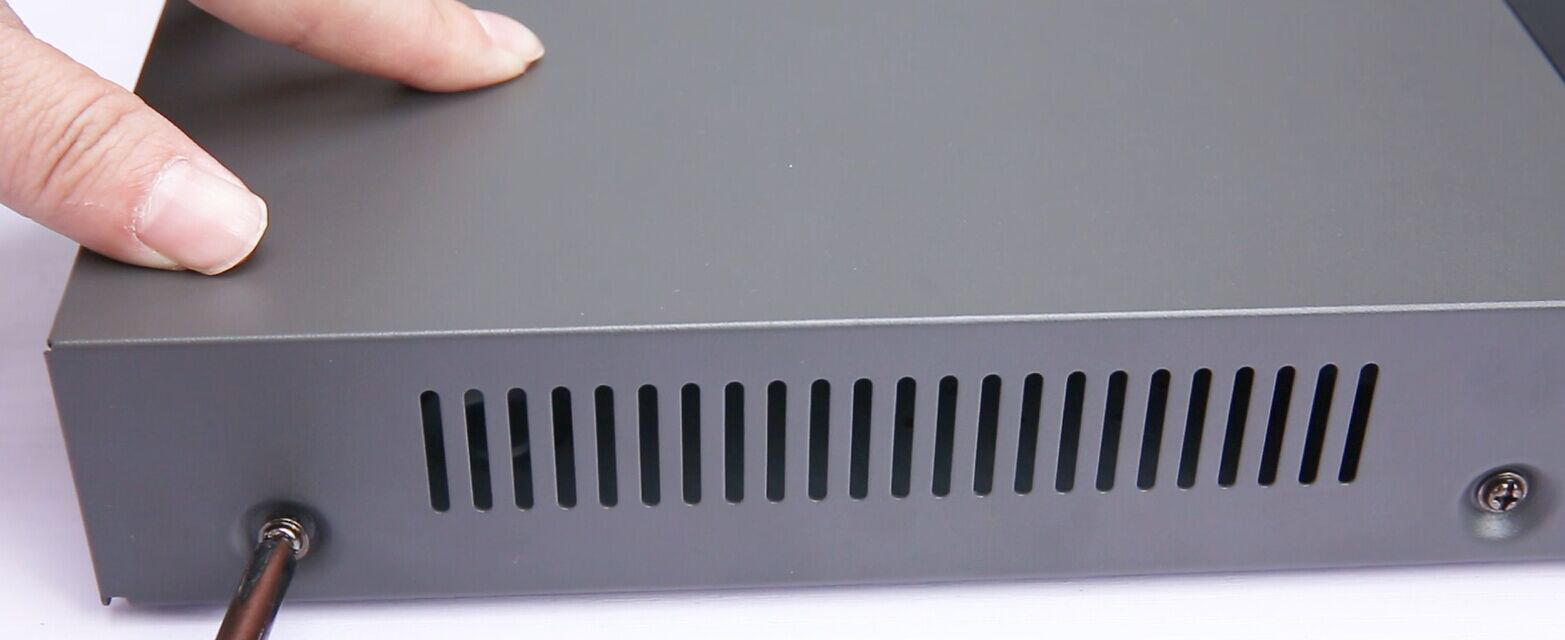

1. Remove the cover from the DVR by unfastening the screws on the back and side.

2. Since this model doesn't need hard drive cables, please plug the hard drive into the main board plug directly:

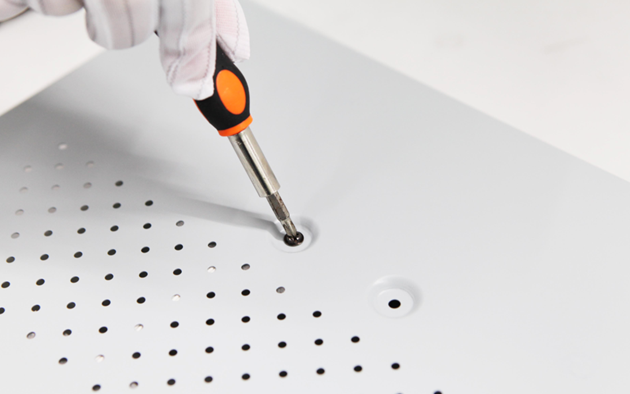

3. Place the HDD on the bottom of the device and then fasten the screws on the bottom to fix the HDD.

4. Put back the cover of the DVR and fix screws.
