NIVIAN - NEW USER INTERFACE - ADD CAMERA NV-CAM30W - NV-KIT430W / NV-KIT-830W

Recommendations:

* Power supply should be connected to the camera before starting the search process.

* The recorder and the camera must be connected to the same local network via rj-45 ethernet cable.

* Once the camera is added, you must disconnect it from the local network, when the wifi connection of the camera and recorder is successful.

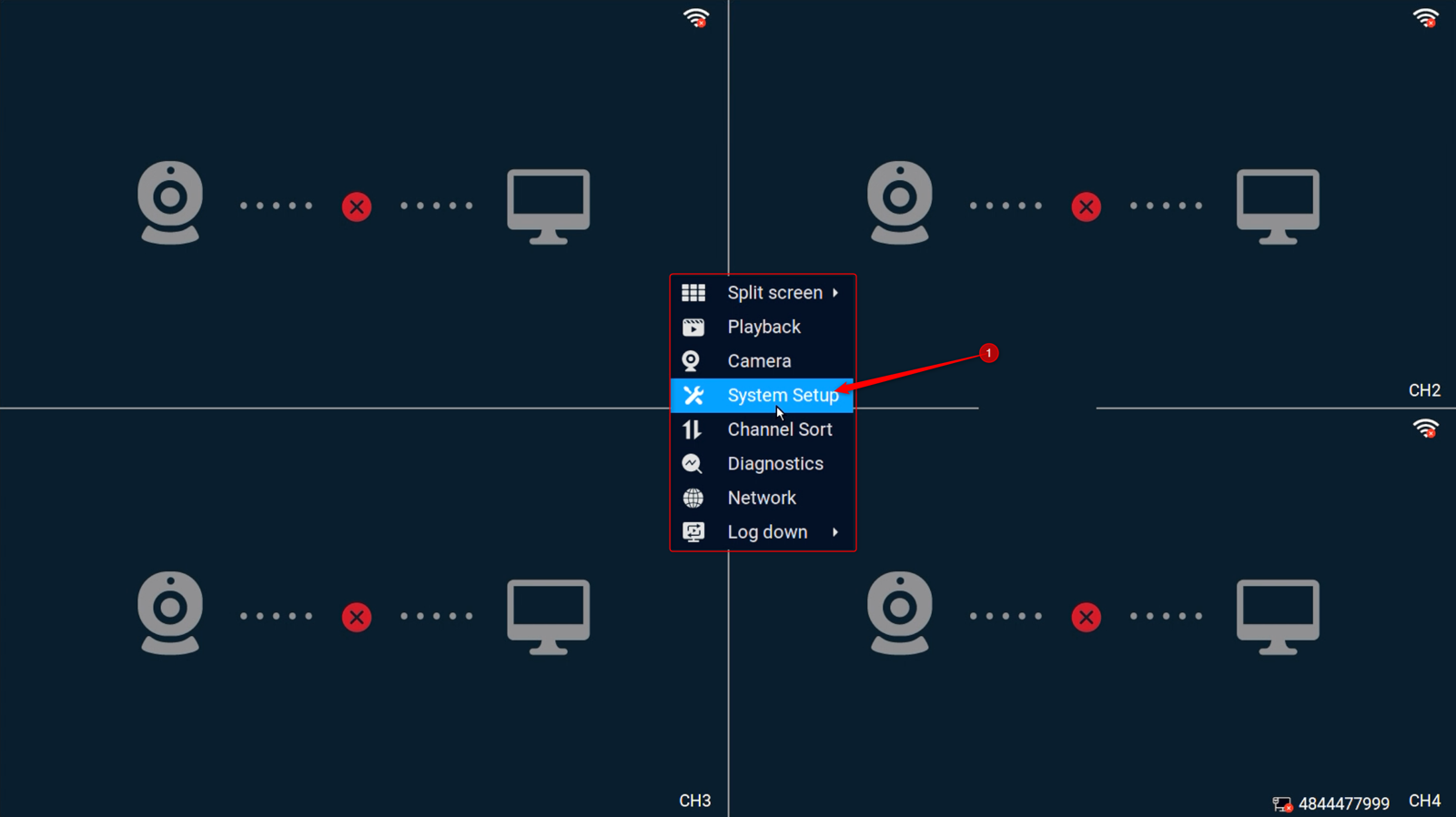

1- Login to the recorder and right click anywhere on the screen and select "configuration".

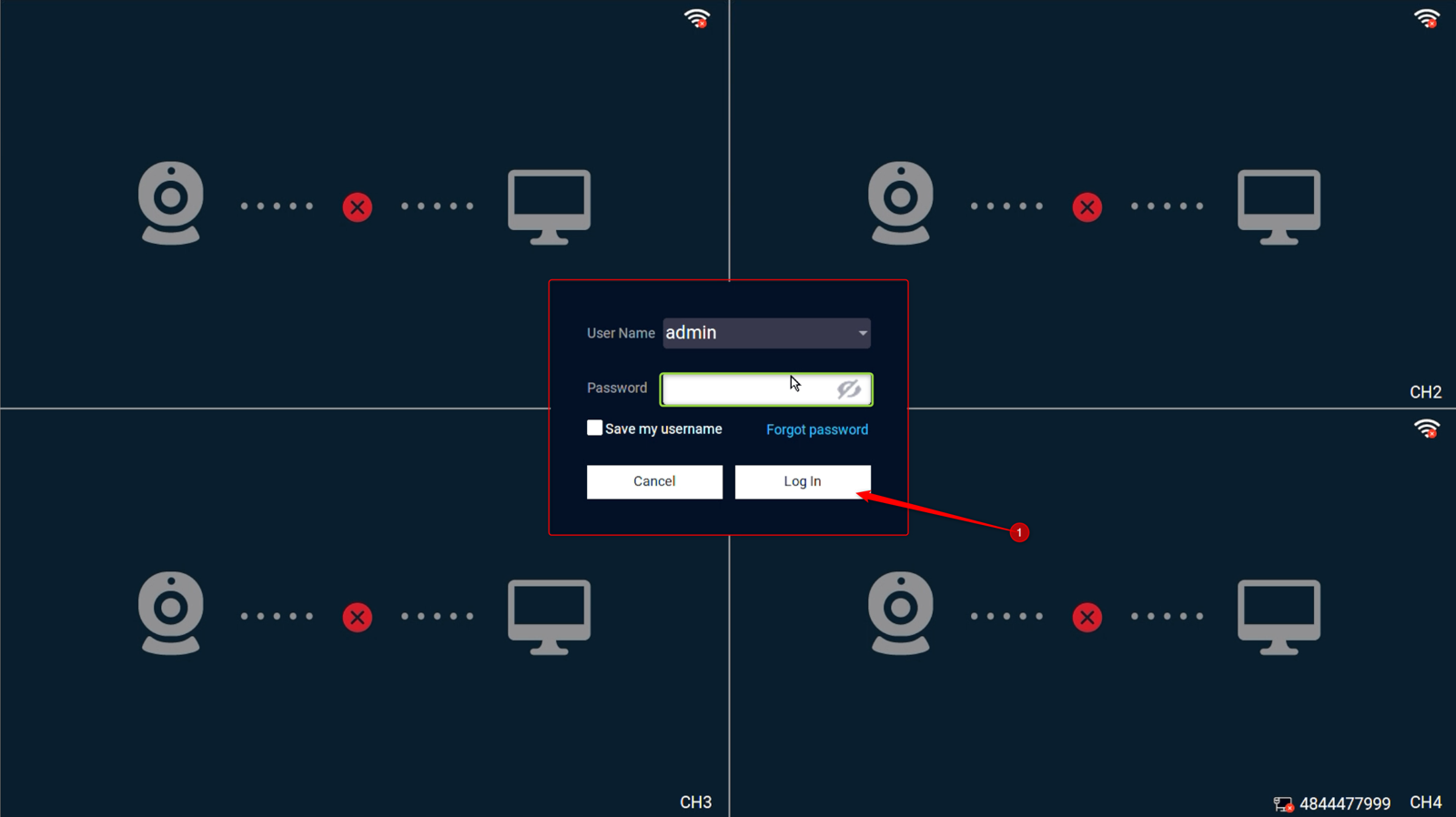

2 - Login with the user "admin" and the password that has been previously configured, if none has been assigned, the default password is blank, i.e. leave the field empty and click ok.

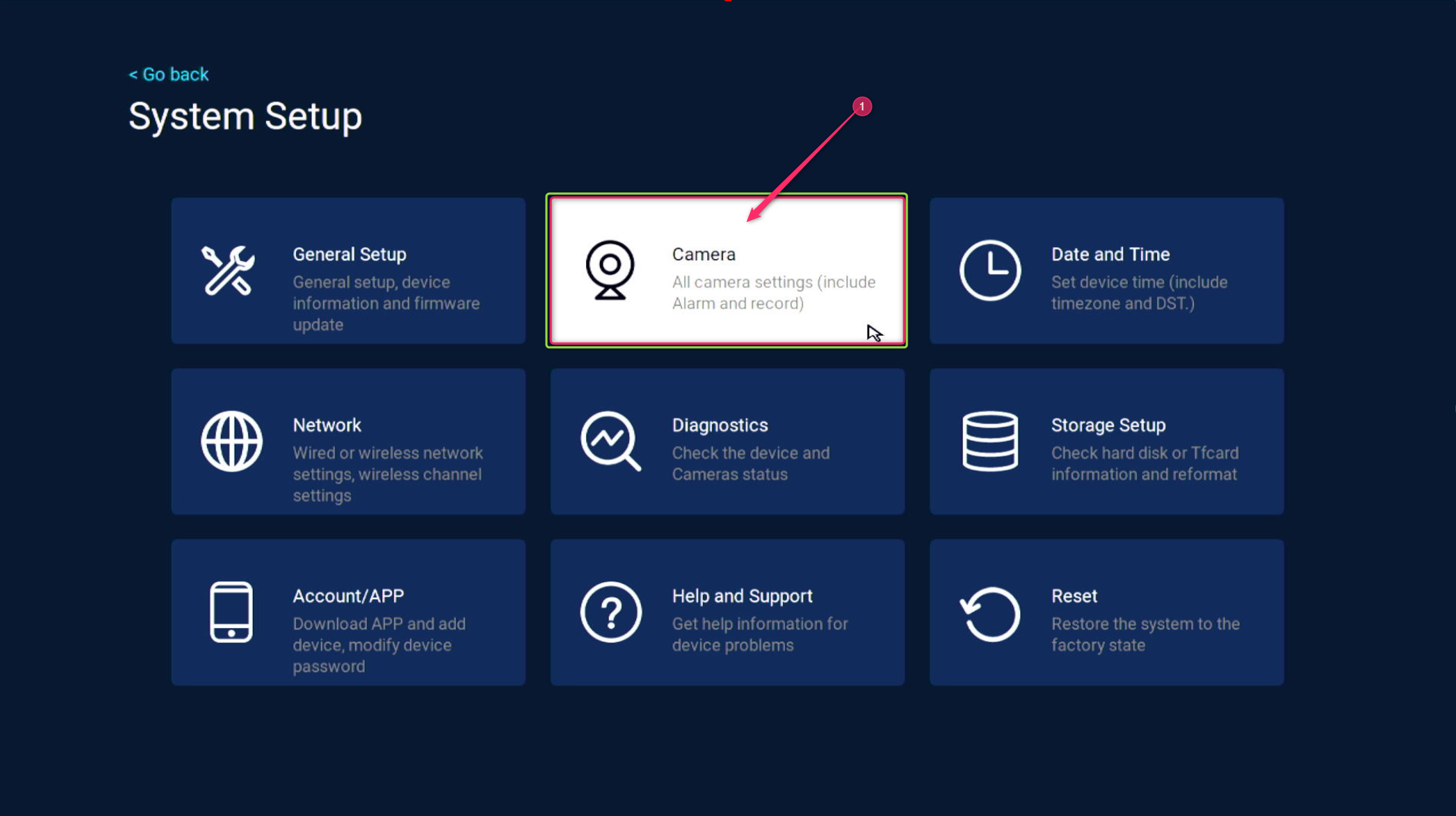

3 - Click on the "Camera" menu.

4 - Click on the "+" button

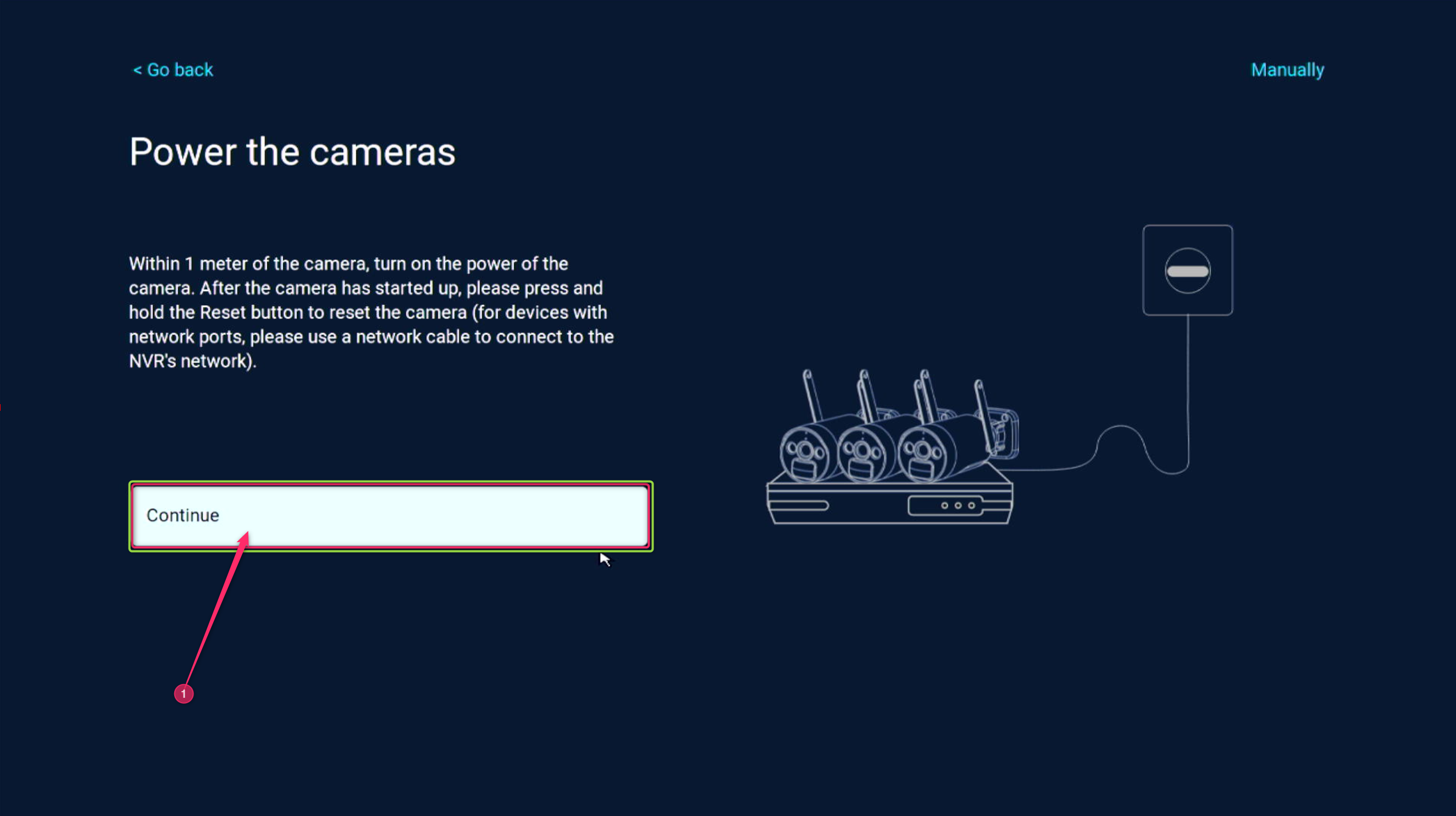

5 - Click on the "Continue" button, the search process will start.

6 - The cameras are automatically added to the recorder, after this process you must click on "continue" and then on return.

Disconnect the network cable from the camera, since now the connection between the camera and the recorder is through the proprietary wifi network generated by the recorder itself.

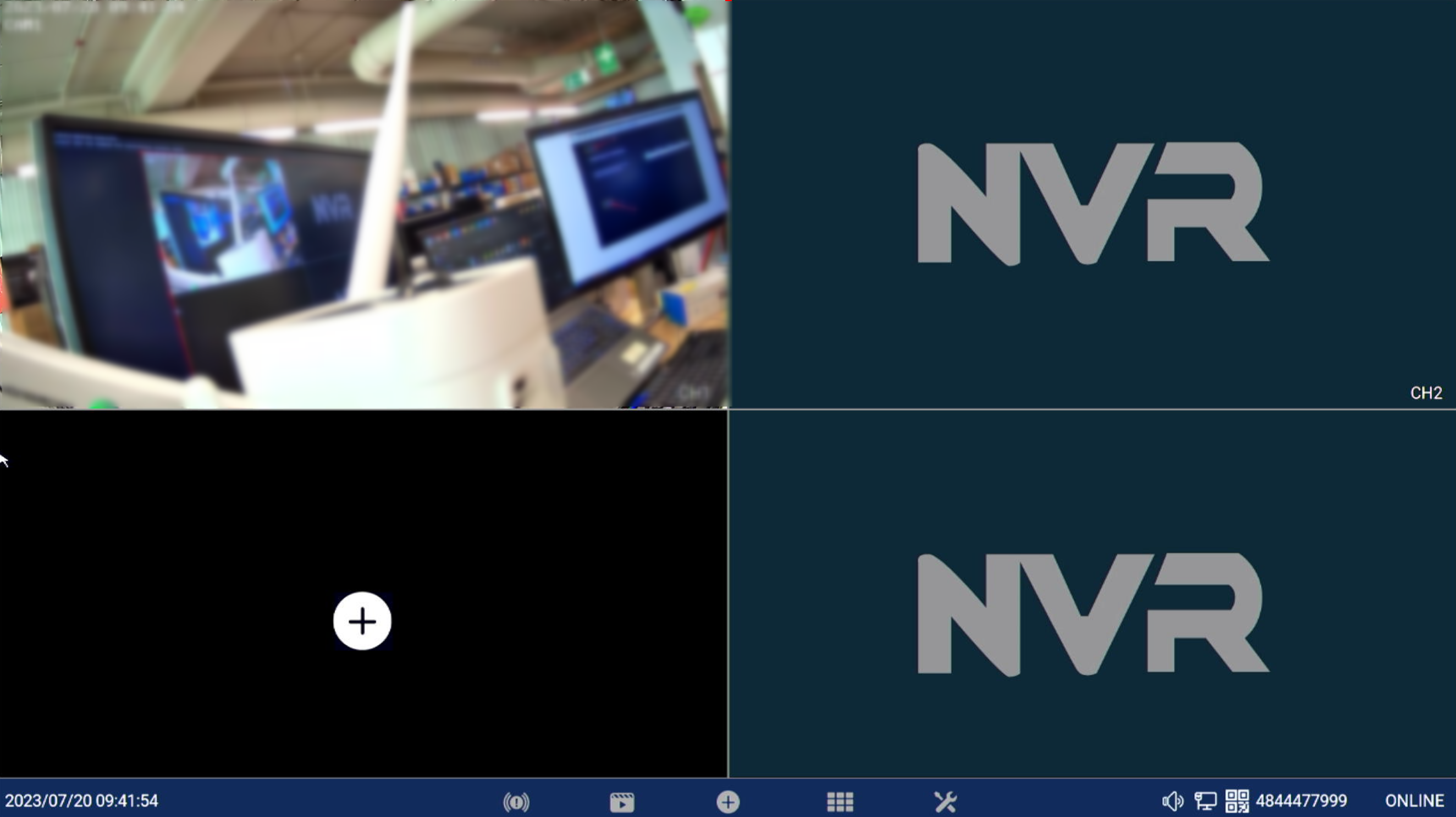

7 - The camera is now visible on the recorder.
