Safire Smart - Missing Smart options Face detection, Smart Events, or Video Metadata

For this article, we used a Safire Smart camera SF-IPB585ZA-4I1 firmware version: 5.1.3.0(47353)

Event options:

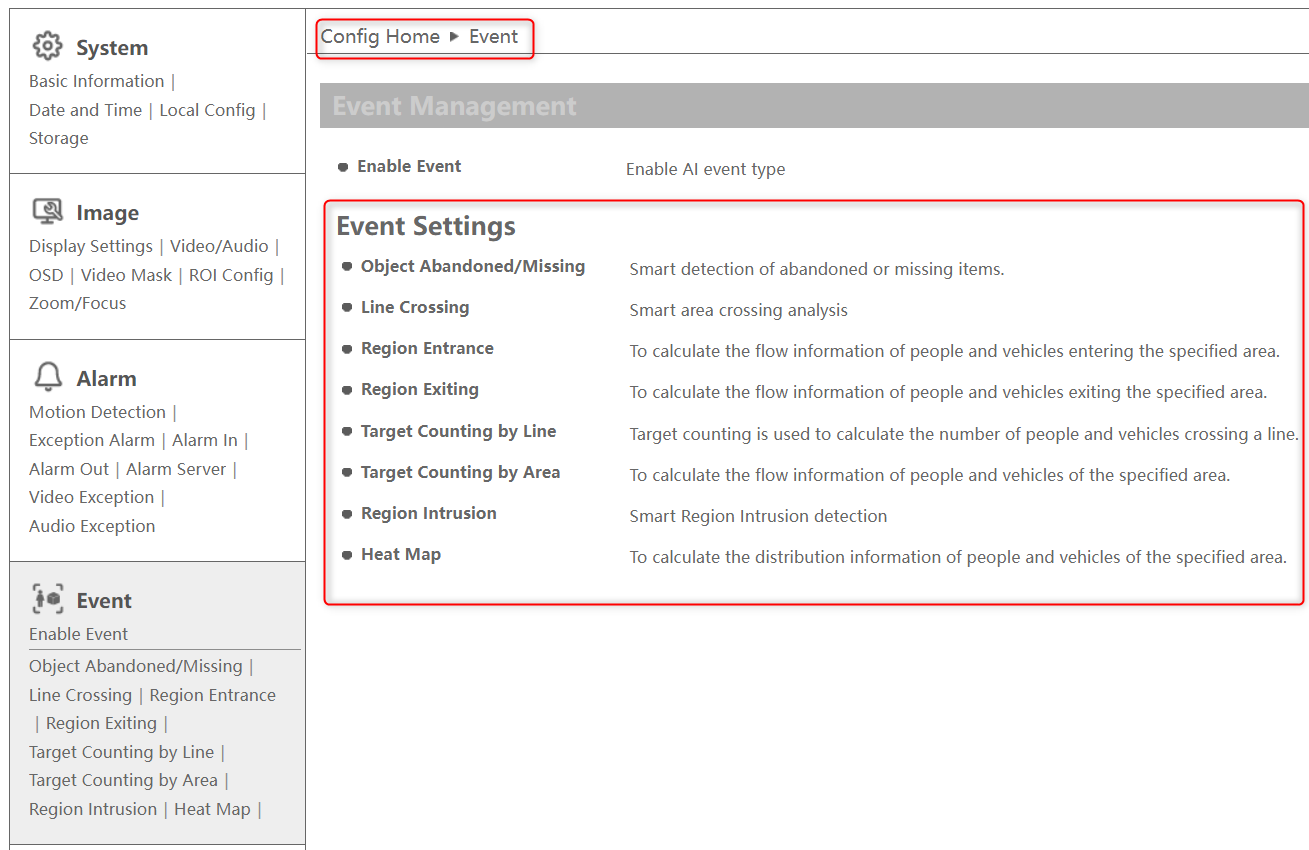

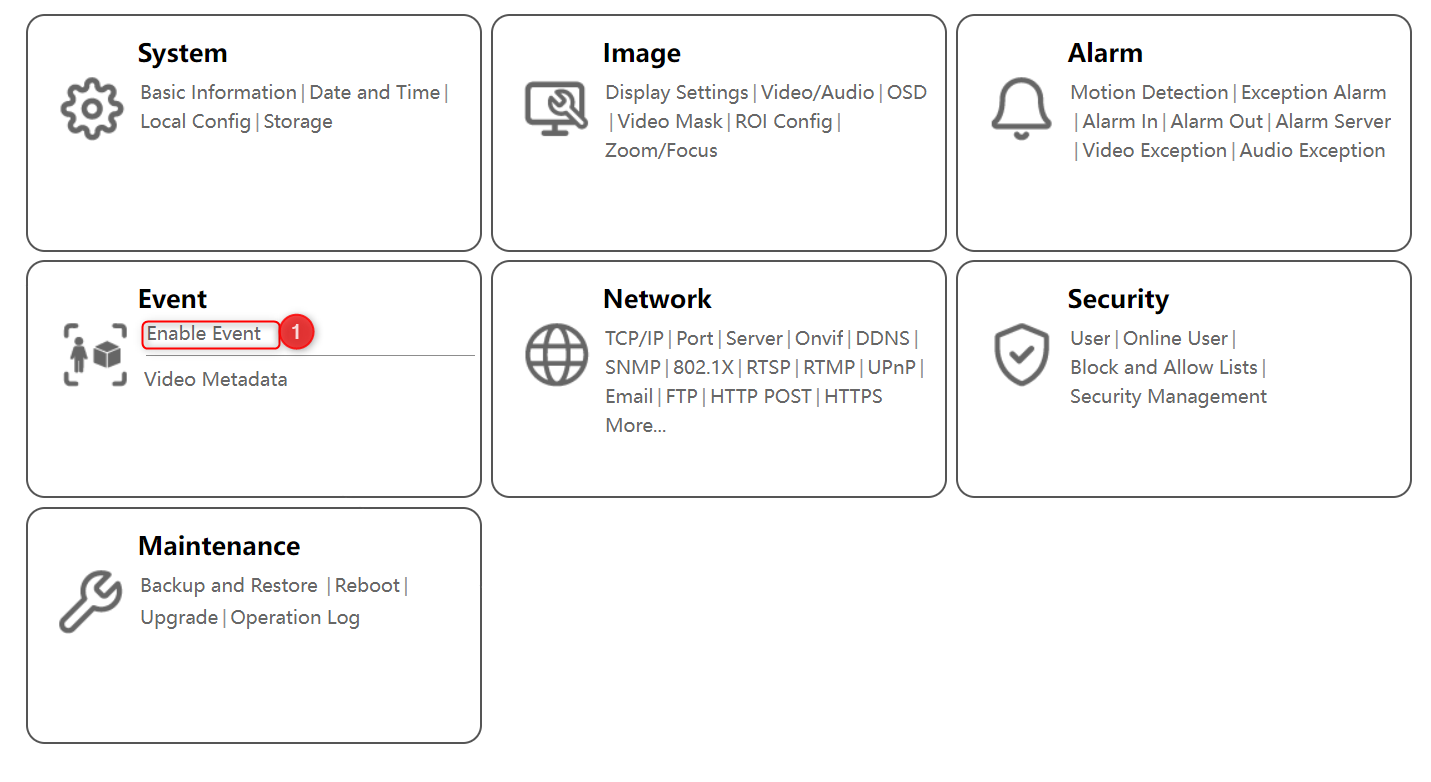

Go to the config tab from the camera and click on Events

1. Enable Event

From there, select the available options.

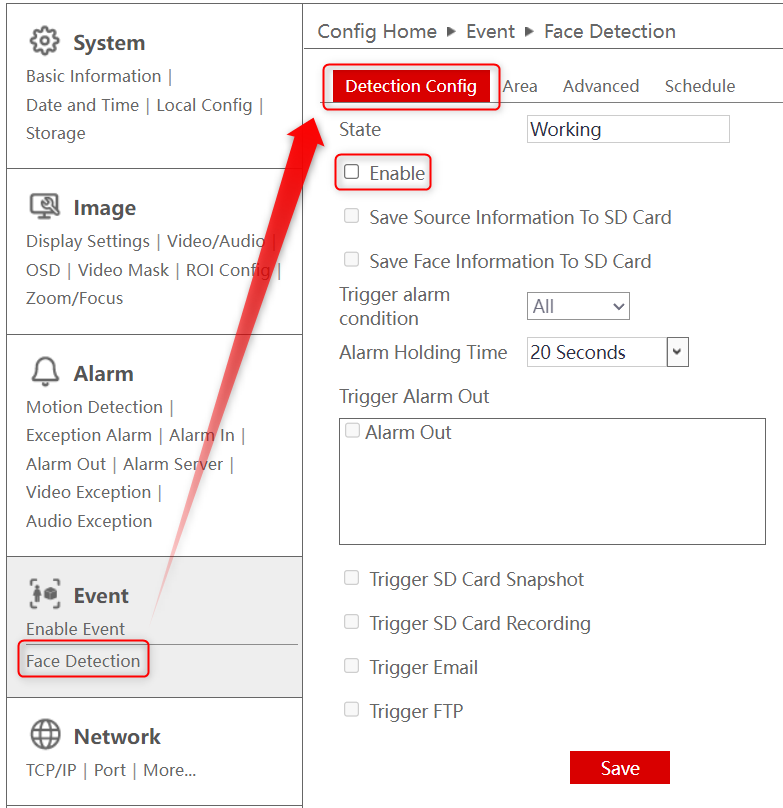

In order to make face detection work:

Select the Detection Config tab and enable the event type, and select the options that are needed for the project.

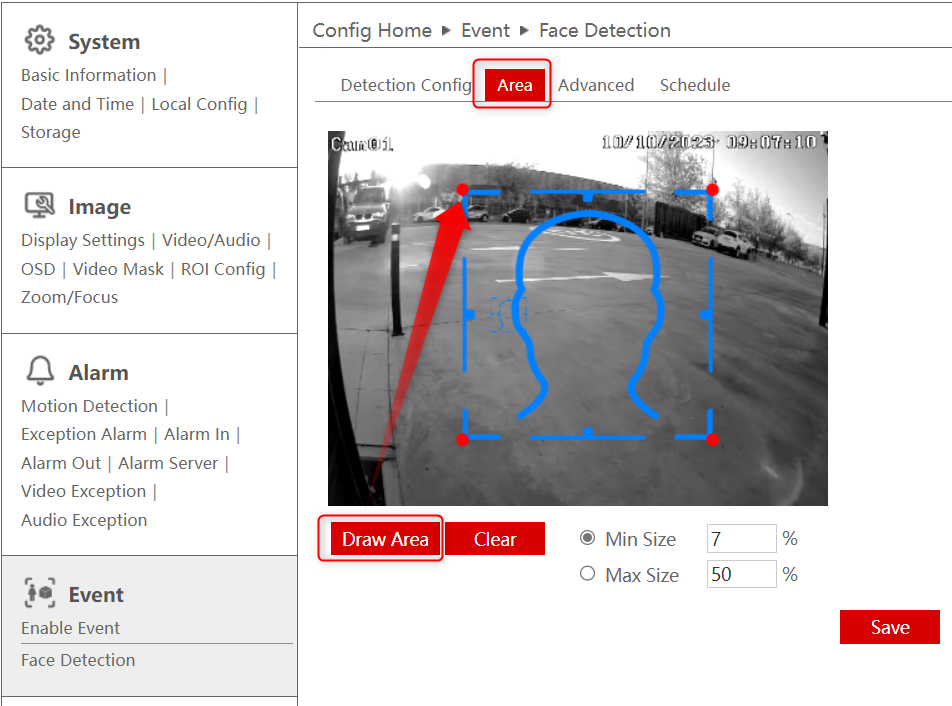

In the Tab Area, there is the option to move the detection area by clicking on Draw Area.

Object Abandoned/Missing	Smart detection of abandoned or missing items.
Line Crossing	Smart area crossing analysis
Region Entrance	To calculate the flow information of people and vehicles entering the specified area.
Region Exiting	To calculate the flow information of people and vehicles exiting the specified area.
Target Counting by Line	Target counting is used to calculate the number of people and vehicles crossing a line.
Target Counting by Area	To calculate the flow information of people and vehicles of the specified area.
Region Intrusion	Smart Region Intrusion detection
Heat Map	To calculate the distribution information of people and vehicles of the specified area.

More about the setup for the smart event in the articles:

In order to use the metadata:

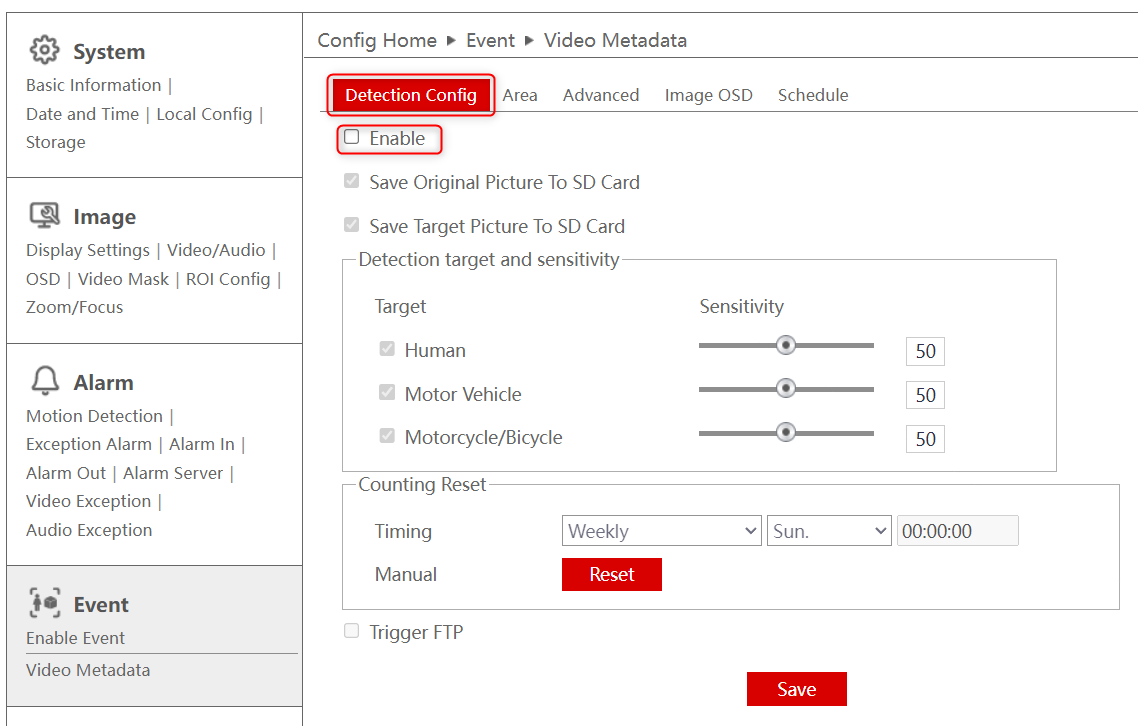

Go to the Video Metadata option via the config page.

Enable the option and set or activate the options for the project.

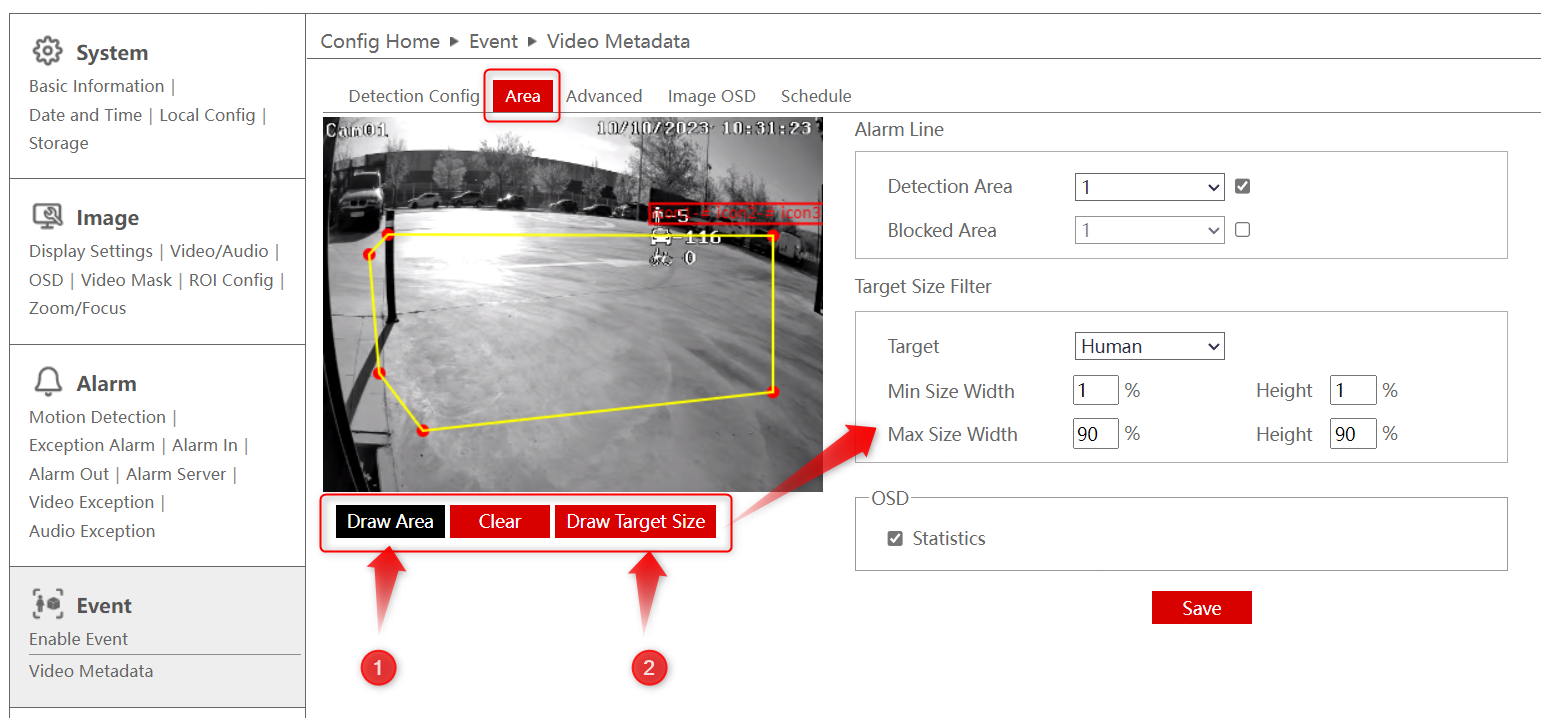

Setting the Area.

Select the Draw Area (1) to mark the area for the metadata detection.

Set the Target Size (2) or us the flied to enter the percentages of the Width and Height.

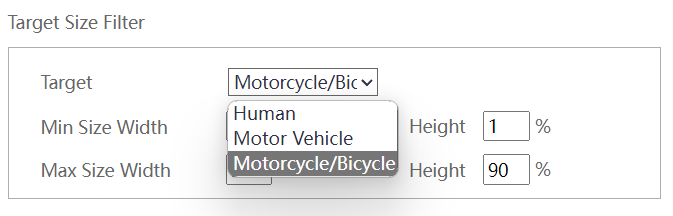

The Target Size filter can be used for Humans, Motor Vehicle, and Motorcycle/Bicycle

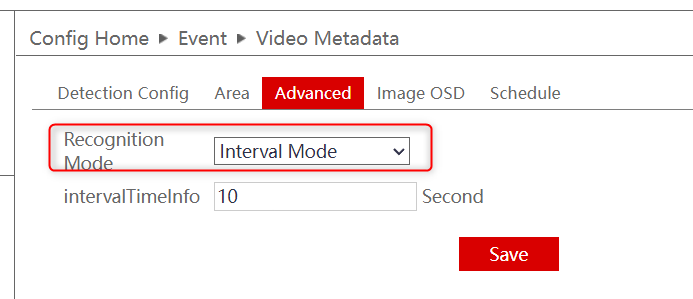

In the Advanced tab, there is the option Interval mode or Instant mode

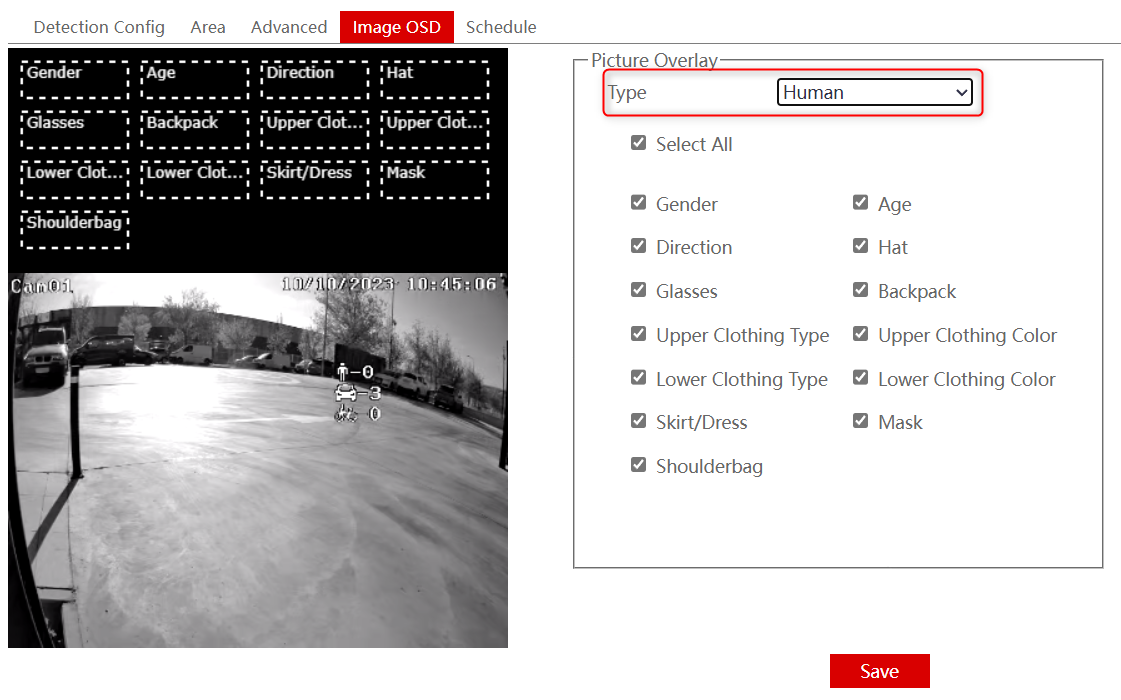

In the Image, OSD tab, there is the option to display the target options.

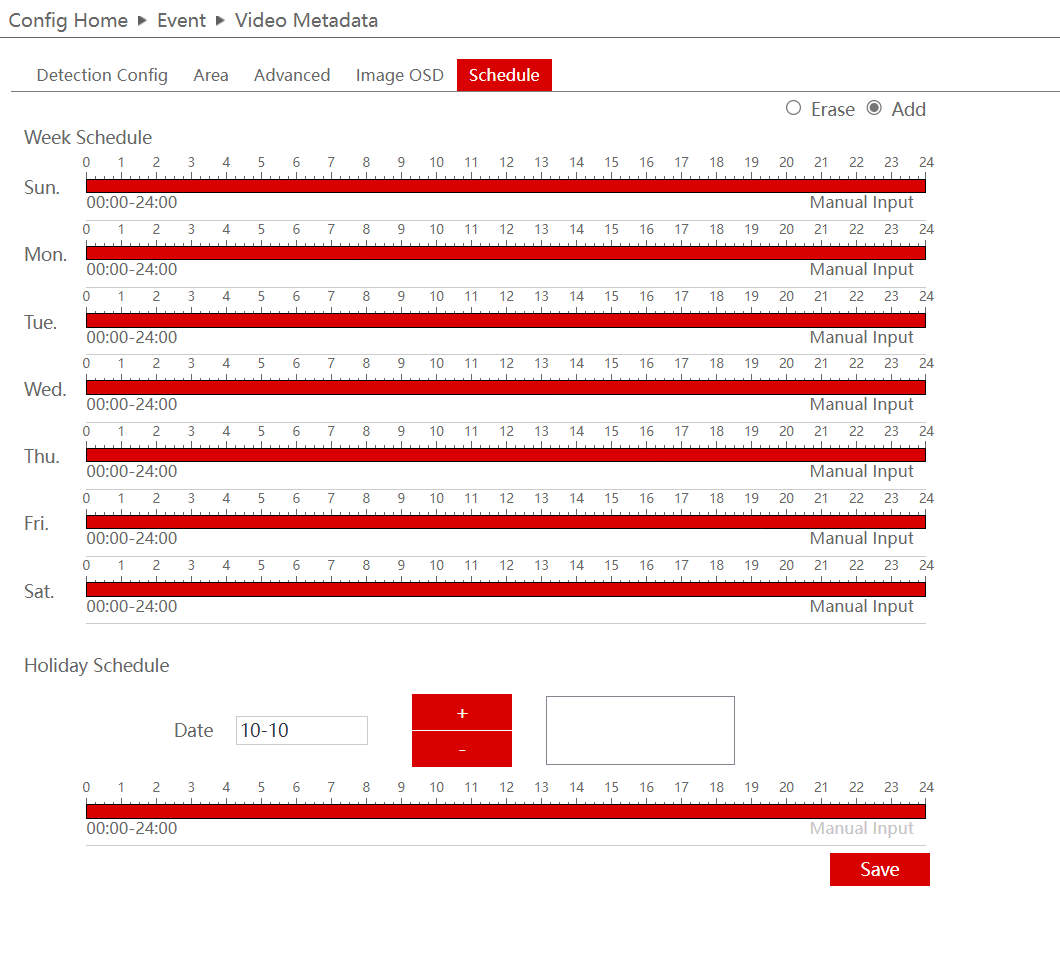

And the last tab, the Schedule settings.
