Safire Smart - NVR B2 Activate AI event notification using your Ajax alarm or any other alarm system with alarm in and out contacts.

Index

Disarm Settings Local

Webinterface Disarm Settings

Set Up Event (Line Crossing)

Cabling NVR

Disarm Settings Local

The one click disarm allows you to arm or disarm the system of Safire Smart units, so that the recorder performs, or not, certain functions when the unit is armed or disarmed.

The first step to be able to manage this function is to activate the following option via monitor and mouse, since it is the activation of the remote configuration and not only with the monitor itself:

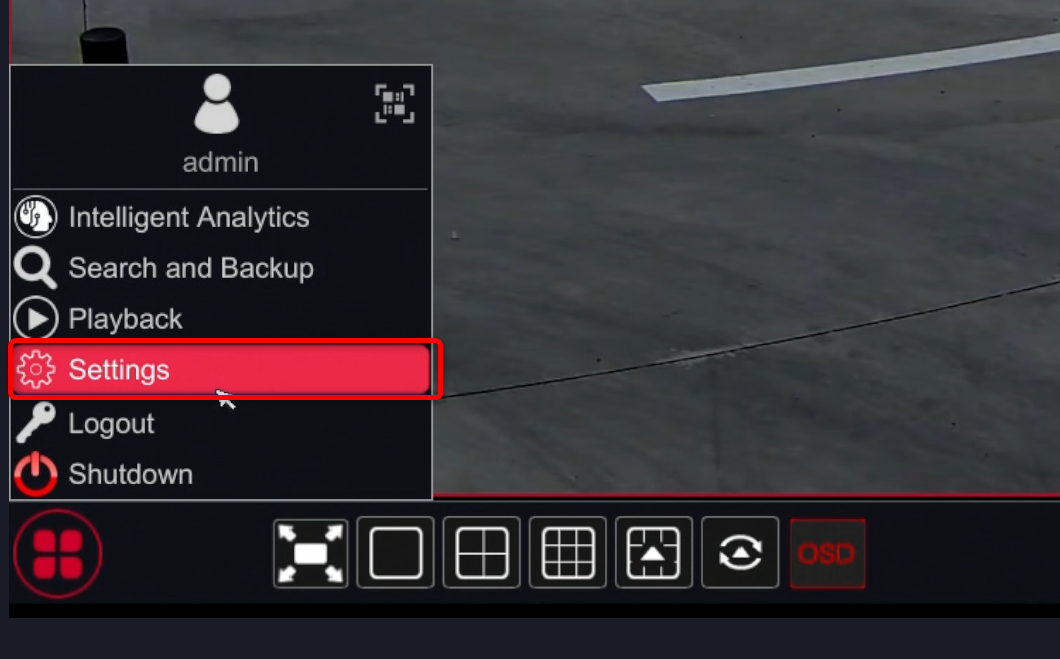

Click on Settings

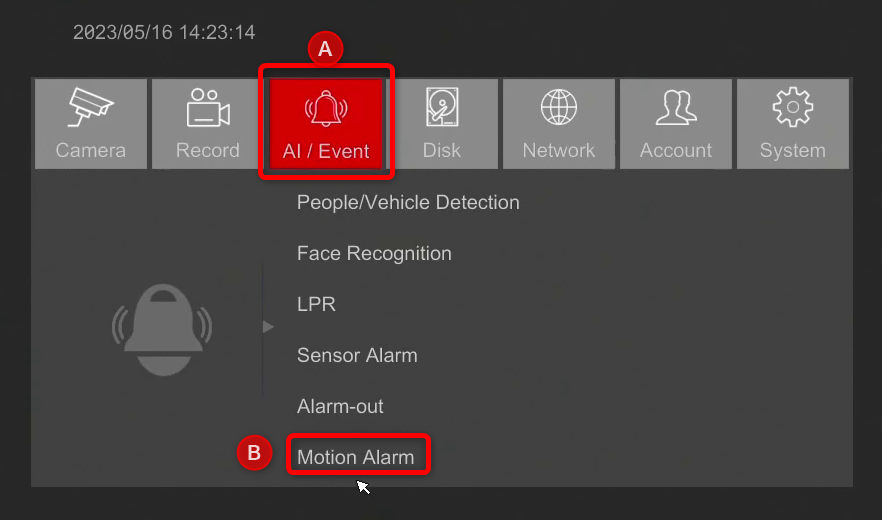

A) AI / Events

B) Motion Alarm

1. System Disarm

2. Enable Alarm Host

3. Enable Remote Client

4. Add

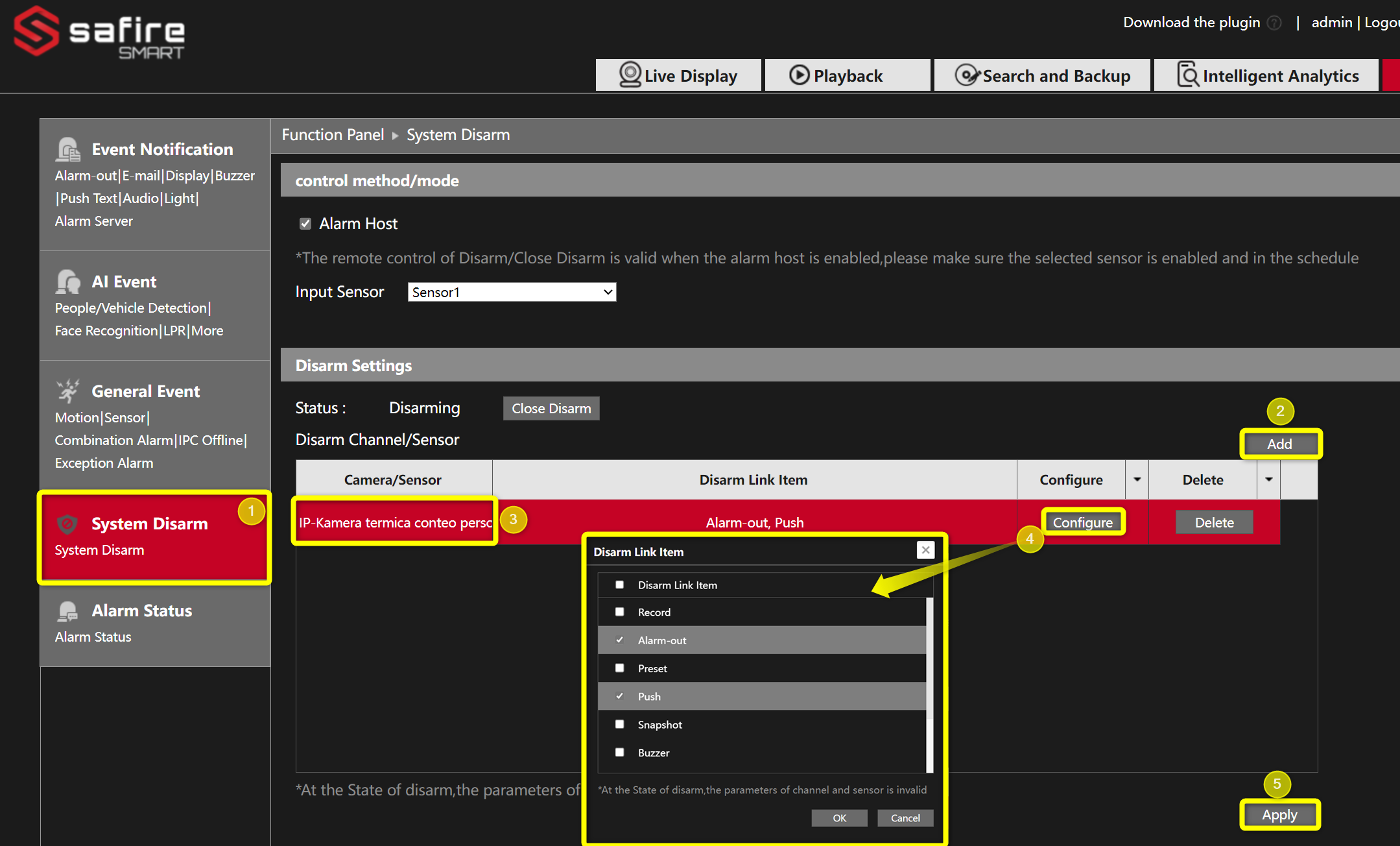

Webinterface Disarm Settings

After setting up the System on the monitor, the following steps are configured on the web interface of the recorder.

1. System Disarm

2. Add

3. Select the camera

4. Configure Disarm Link Item

5. Apply

These options that can be marked, it is important to know that these are options that, when the equipment is disarmed will not be executed, so if the Record box is marked, that event will not be recorded when it is disarmed.

Whether the configuration is made from the APP or from the browser, the configuration will be saved in both places, if a modification is made from the APP it can also be checked from the webserver.

Set Up Event (Line Crossing)

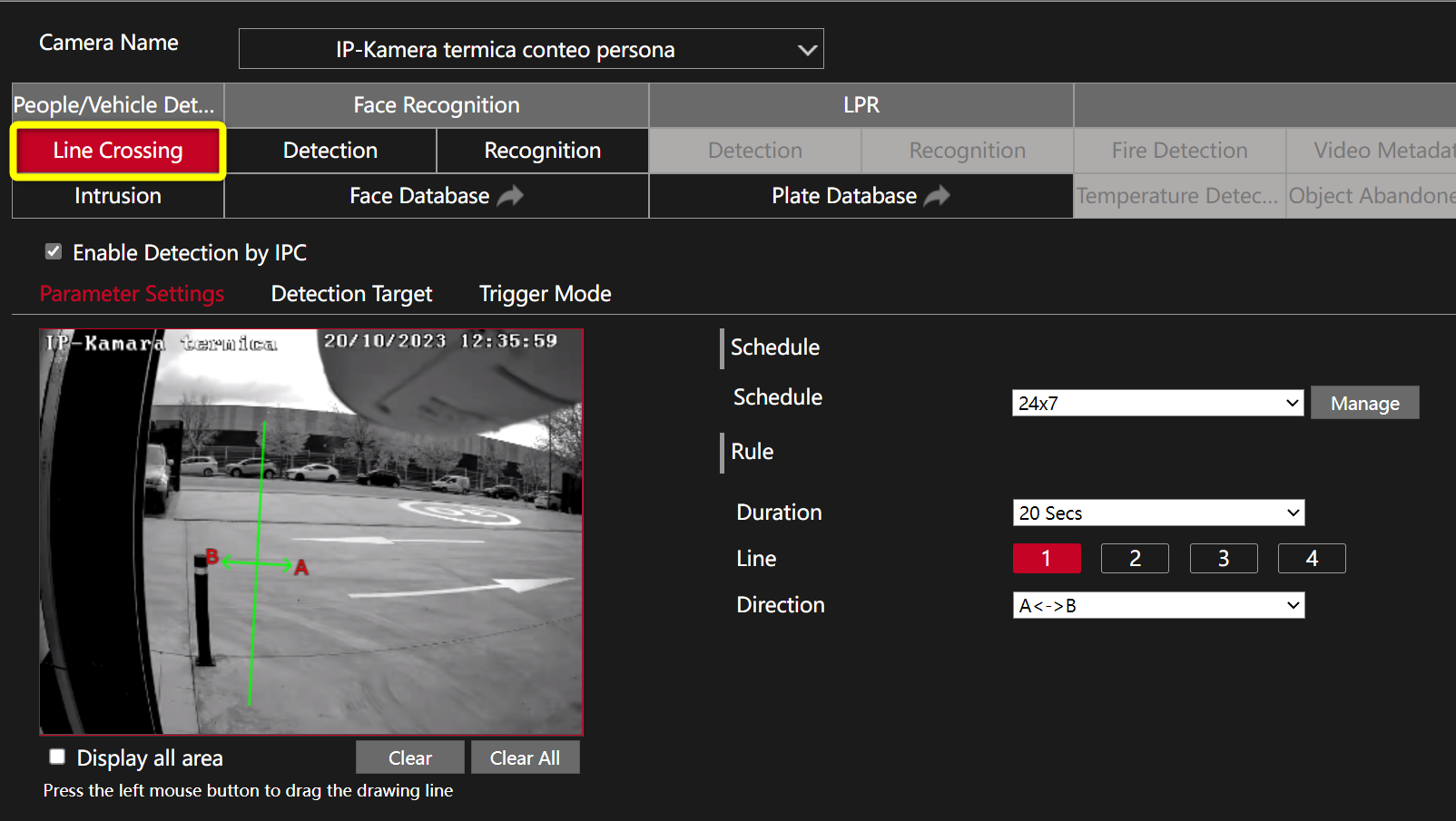

Open the tab AI / Event, select Line crossing and draw the line.

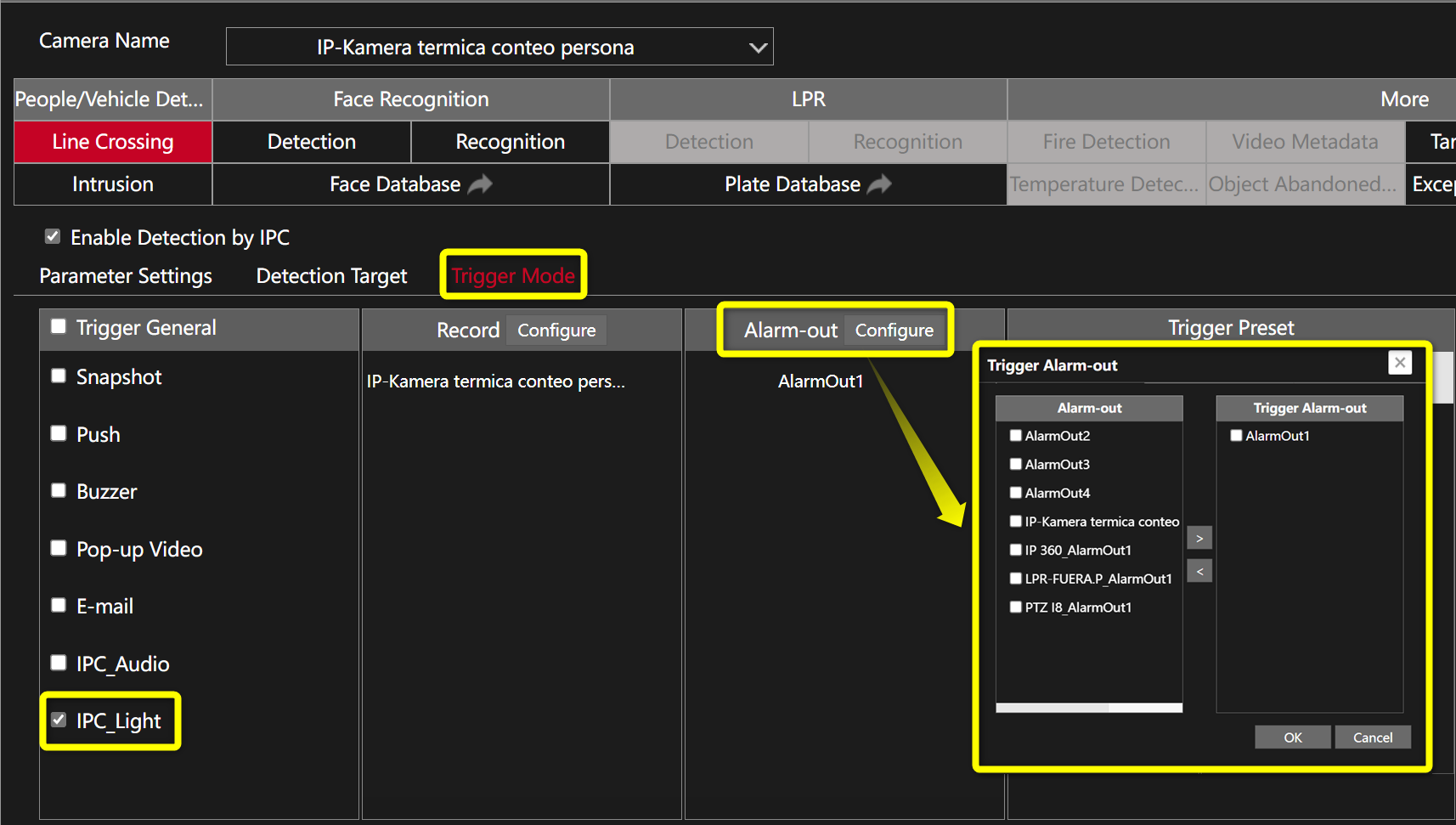

Open the tab Trigger Mode

Choose the General Trigger, which requires your installation.

Configure the Alarm-Out like in the following Image.

Cabling NVR

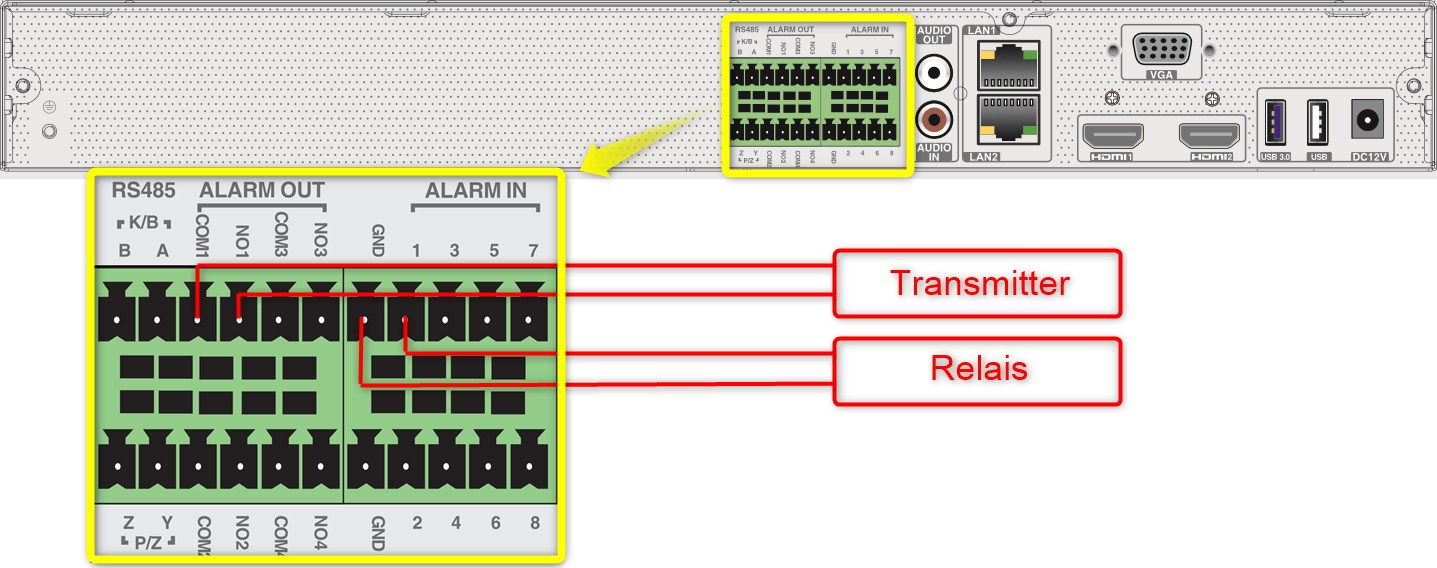

In the following Image, you can see how to wire the NVR with the Transmitter and the Relais.
