[VORTEX Portal] How can I set up the VCA configuration via the Vivotek Camera webpage?

Step 1. Set up the VCA configuration via the Vivotek Camera Webpage

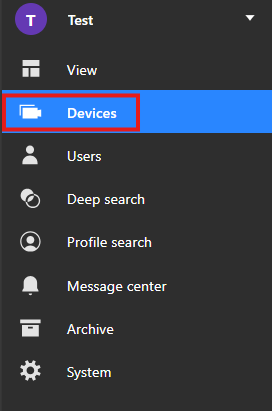

1-1. After adding the NVR to the VORTEX Portal, go to the "Devices" page on the left panel and select the Vivotek camera whose webpage you want to access.

1-2. Click "Camera settings webpage" and then click "Open", as shown in the picture below.

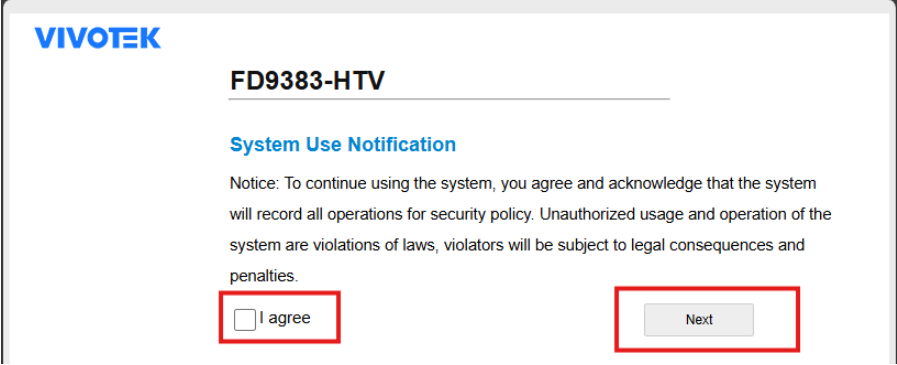

1-3. After accessing the Camera settings webpage, check "I agree" and click "Next".

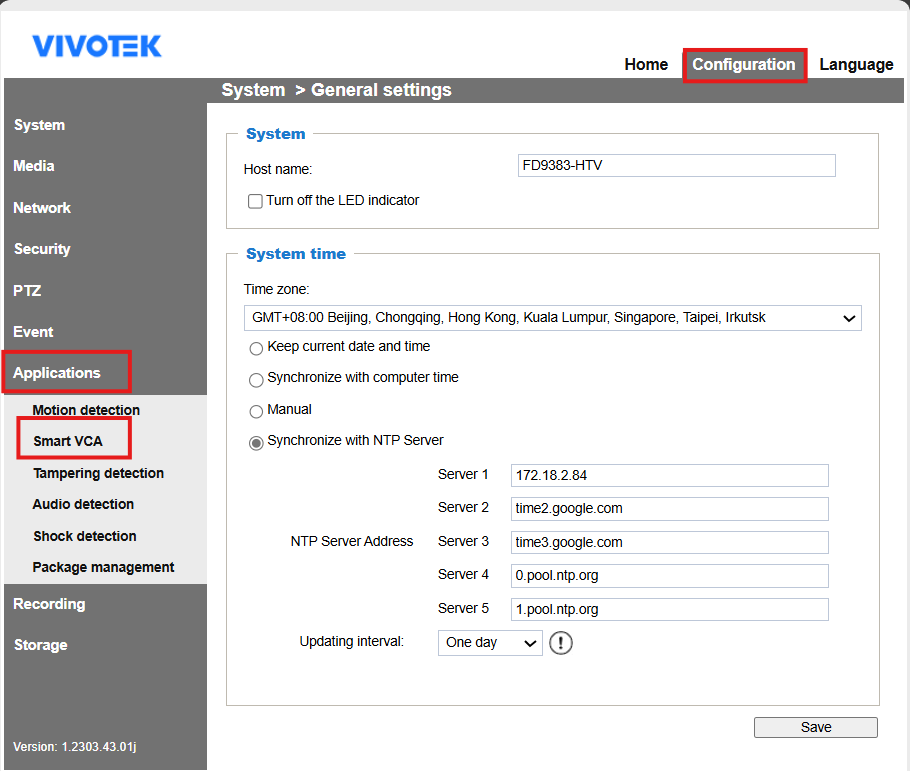

1-4. As shown in the image, click "Configuration > Applications > Smart VCA" to access the settings page.

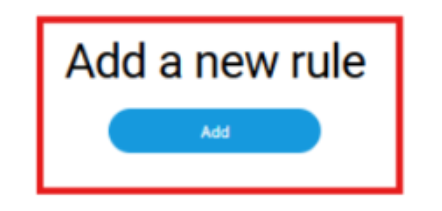

1-5. Click the "Add" button to create a new rule.

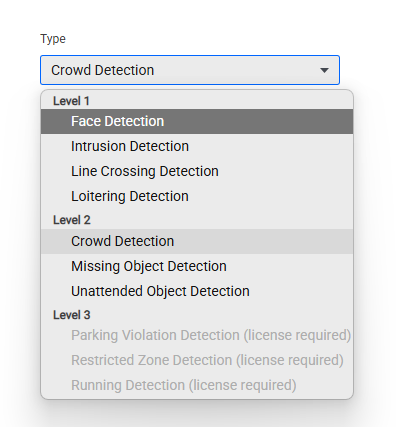

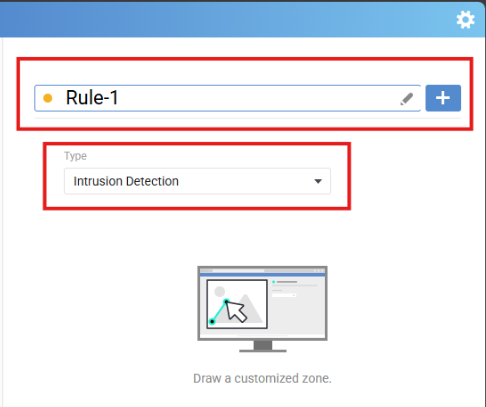

1-6. Enter a "Rule Name" and select a "Rule Type".

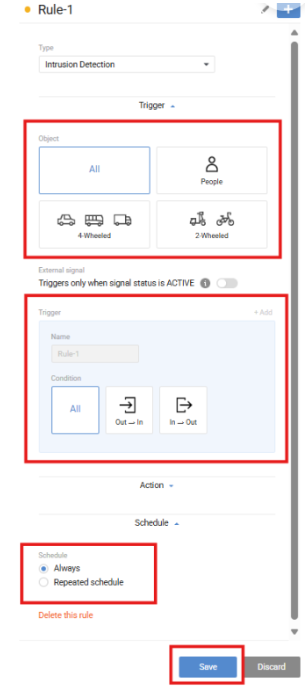

For the "Intrusion Detection" rule type, draw the "detection area", then select the "target objects", "trigger conditions", and "trigger schedule". Finally, click "Save" to apply the settings.

After completing this step, go back and continue with Step 2:
