Xtralis configuration to send events to CRA

For the Xtralis system to send the analytical events to an ARC we will have to follow the following steps:

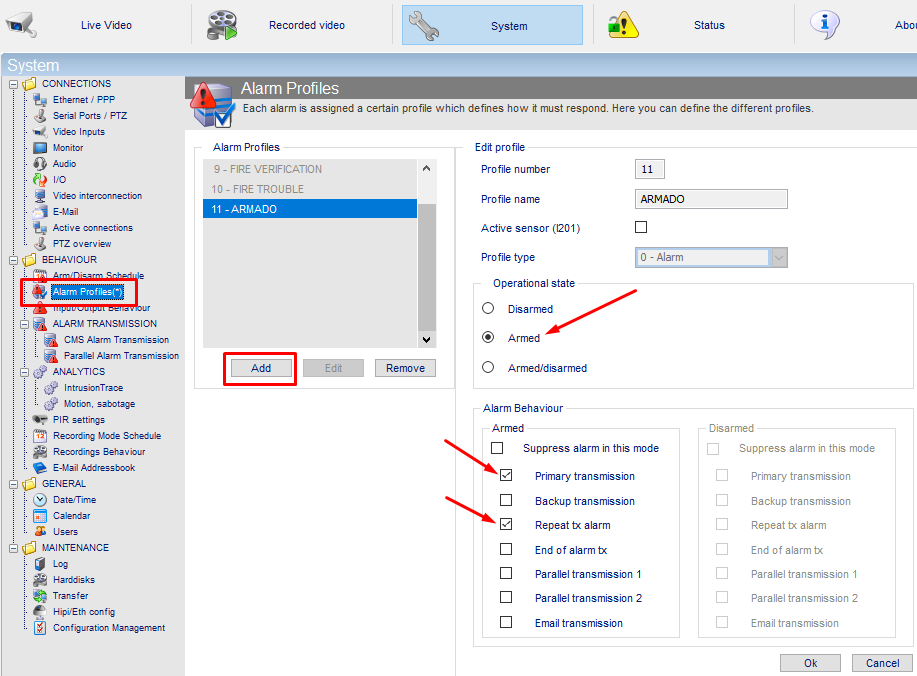

• Add the alarm profile to send the event when the system is armed

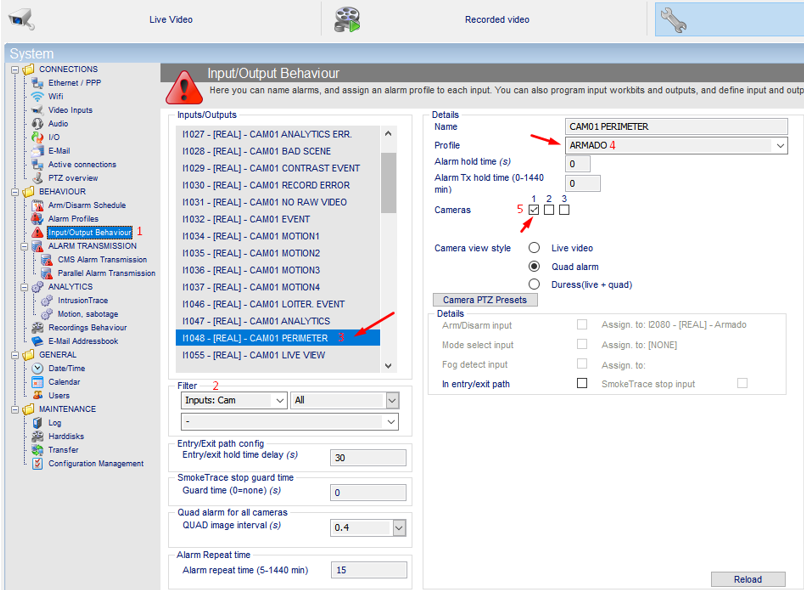

• In each one of the perimeters of each camera we will select the profile created previously and its channel, this will make the "Armed" profile to be executed when the perimeter occurs, which is configured so that if the system is armed it will send the transmissions to the ARC:

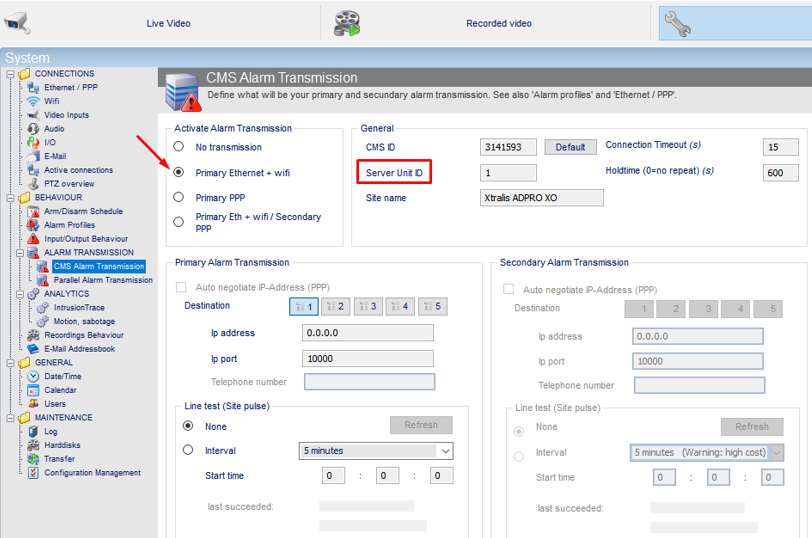

• Configuration of the ARC data. This data should be provided by the ARC. One important thing is that the Server Unit ID section can only contain numbers:
