Setting up your DVR for the first time and seeing “Video Loss” on the screen is common—and usually easy to fix. Video Loss simply means the DVR is powered on but no camera signal is detected. This guide explains how to properly connect Swann cameras to a DVR during first-time setup so your cameras appear correctly on the display.

This applies when you’ve connected a monitor, mouse, and power adapter, and the DVR boots up but shows one or more Video Loss boxes.

Common Questions / Variations

  • Why does my DVR say Video Loss on first-time setup?
  • How do I connect Swann cameras to a DVR?
  • Why isn’t my camera showing on the DVR screen?
  • How do I test cameras before mounting them?

Clear, Direct Answers

What Does “Video Loss” Mean on a DVR?

Short answer: Video Loss means the DVR is powered on, but it isn’t detecting a camera on that channel.

This usually happens when cameras aren’t connected yet, cables aren’t fully locked in, or the cameras aren’t receiving enough power. During first-time setup, Video Loss is expected until cameras and power are properly connected.

Before You Start: What You’ll Need

Before mounting anything, Swann recommends testing all cameras and cables first. This makes it easier to identify and replace faulty equipment.

Make sure the following are within reach:

  • DVR (powered on)
  • Compatible cameras
  • Camera cables (BNC + power) - We strongly recommend using the included camera cable (with purple BNC) to ensure compatibility since some older cables may present some video artifacts (e.g. fuzzy lines, image noise, or partial video loss)
  • Power adapters (usually 12V 2A for kits)
  • Power splitter (2-way or 4-way)

Important: Double-check camera and DVR compatibility before connecting.
See also: Recorders and Cameras Compatibility Chart

Step-by-Step Guide

Watch this video (from 0:35 to 1:10) for a visual guide, or read the steps below.

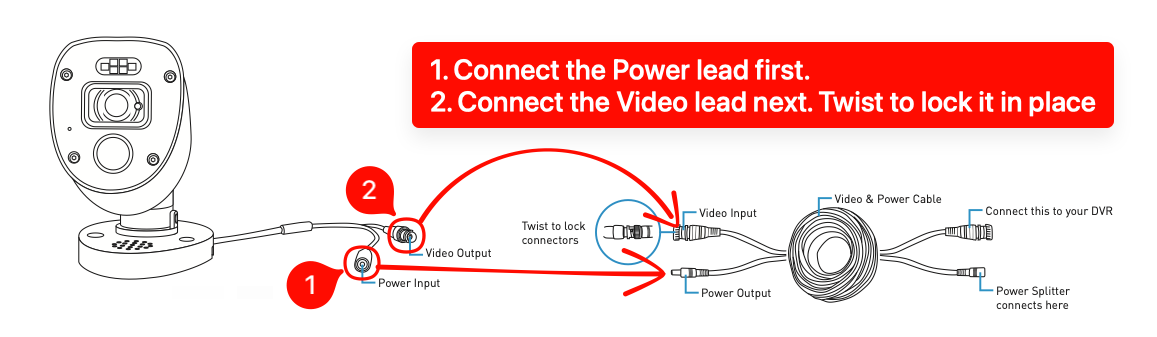

Connect the Camera to the Camera Cable

Camera to Camera Cable Diagram

Short answer: Match power to power first, then lock the video connector.

  1. Each camera has two connectors: Power and Video.
  2. Match and connect the power connectors first.
  3. Align the video (BNC) connectors, push in, then twist to lock.
  4. Repeat for all cameras.

A loose BNC connection is one of the most common causes of Video Loss.

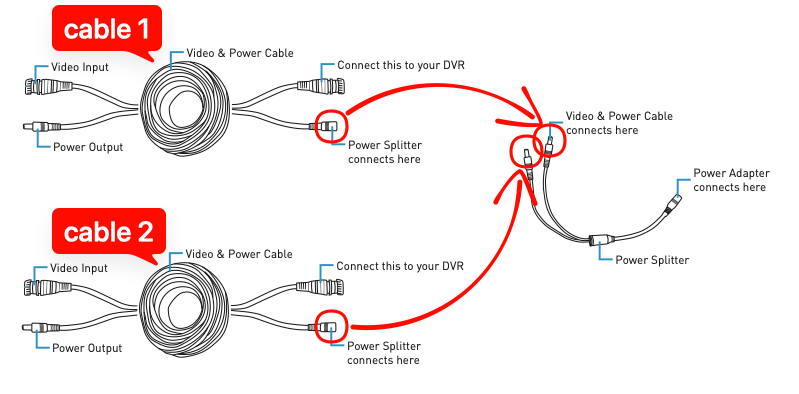

Connect Camera Cables to the Power Splitter

Camera Cable (Power Connector) to Power Splitter (2-way) to Power Adapter Diagram

Short answer: Cameras must receive enough power through the splitter and adapter.

  • 2 cameras → 2-way splitter + 12V 1A or 2A
  • 4 cameras → 4-way splitter + 12V 2A
  • 8 cameras → Two 4-way splitters + two 12V 2A adapters

Each camera typically requires about 12V 0.5A. Using an underpowered adapter may cause cameras—especially night vision—to fail.

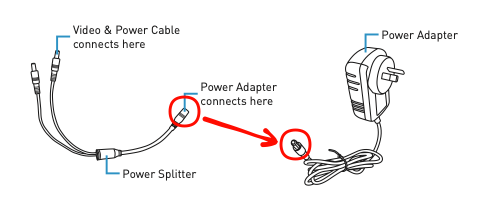

Connect Power Splitter to the Power Adapter

Power Splitter to Power Adapter Diagram
  • Connect the power splitter to the camera power adapter.
    • DO NOT use your DVR's power adapter; only the DVR should be powered by its adapter.
  • Once the splitter is connected, plug the adapter to your wall outlet.

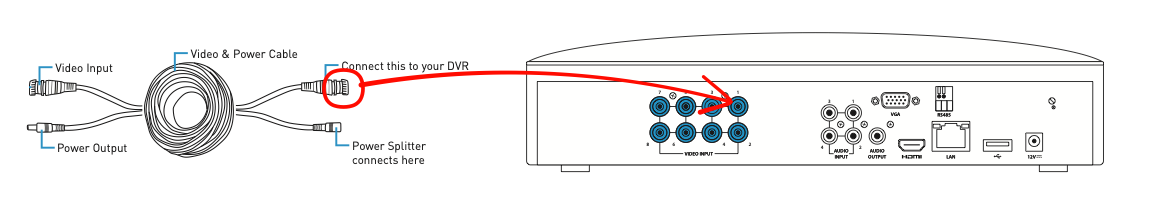

Connect Camera Cables to the DVR

Camera Cable (Video Connector) to DVR Diagram

Short answer: Each camera cable connects to a numbered DVR channel.

  1. Plug the video connector into a labeled DVR channel.
  2. Push and twist to lock it securely.
  3. Optional tip: Label each cable (e.g., “Front Yard”, “Garage”) for easier identification later.

Isolation Tests (If Cameras Still Show Video Loss)

If One Camera Shows Video Loss
  • Swap the camera with a working channel.
  • Test with a different cable.
  • If the issue follows the camera, it may be faulty.
If a Group of Cameras Is Not Working
  • Check the shared power splitter and adapter.
  • Ensure the adapter provides enough amperage.
  • Try powering fewer cameras on the same splitter.
If All Cameras Show Video Loss
  • Confirm the DVR power adapter rating.
  • Re-check all BNC connections.
  • Verify camera compatibility with the DVR.

Why This Matters

Proper first-time setup prevents unnecessary troubleshooting later. Testing cameras and cables before installation saves time, helps identify faulty equipment early, and ensures your Swann security system delivers reliable protection from day one.

  • Why do cameras stop working at night? (Usually power related)
  • Can I mix different Swann camera models on one DVR?
  • What does “No Signal” vs “Video Loss” mean?
  • How long can Swann camera cables be?

Summary & Next Steps

If your DVR shows Video Loss during first-time setup, it simply means the cameras aren’t fully connected or powered yet. By confirming compatibility, using the correct power adapters, and securely locking all connections, your cameras should appear on the screen immediately.
