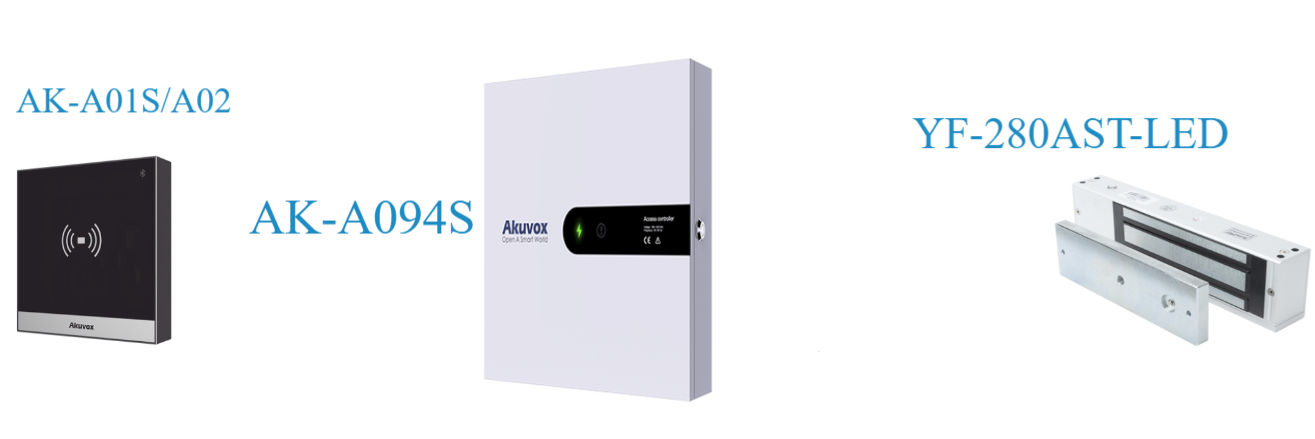

Door opening with AK-A094S controller via HTTP Command from Models A01S and A02 (Wiegand Configuration)

1. In the panel's web menu, it is necessary to enable the Switch function and enter the authentication data: user name and password.

2. From the panel configuration menu, manually disable this feature.

3. In the web configuration of the readers, enable the HTTP function and insert the command provided, modifying only the network and authentication parameters defined above.

Replace the data in bold:

http://device_ip/fcgi/do?action=OpenDoor&UserName=UserName&Password=Password&DoorNum=1

4.Accesses registered on the A094S panel when activating the A01S/02 reader relay.
