Here’s a compact explanation of how to quickly set up a SF-VI131-IPW-MF door station, a SF-VIDISP11-7WIP monitor, and receive calls on a mobile device.

Requirements

  • Outdoor station: SF-VI131-IPW-MF
  • Monitor: SF-VIDISP11-7WIP
  • PoE switch: SF-SW0604HIPOE-60
  • Laptop or PC (for configuration)
  • Smartphone (for mobile access)
  • Software: IP Manager Tool (downloadable via Safire’s Download Center)
  • Safire Smart app (available in the Play Store)

Step-by-Step Installation

1. Connect the Hardware

  • Connect all devices to the PoE switch.
  • Use the uplink port to connect the switch to your router.

2. Configure the Outdoor Station

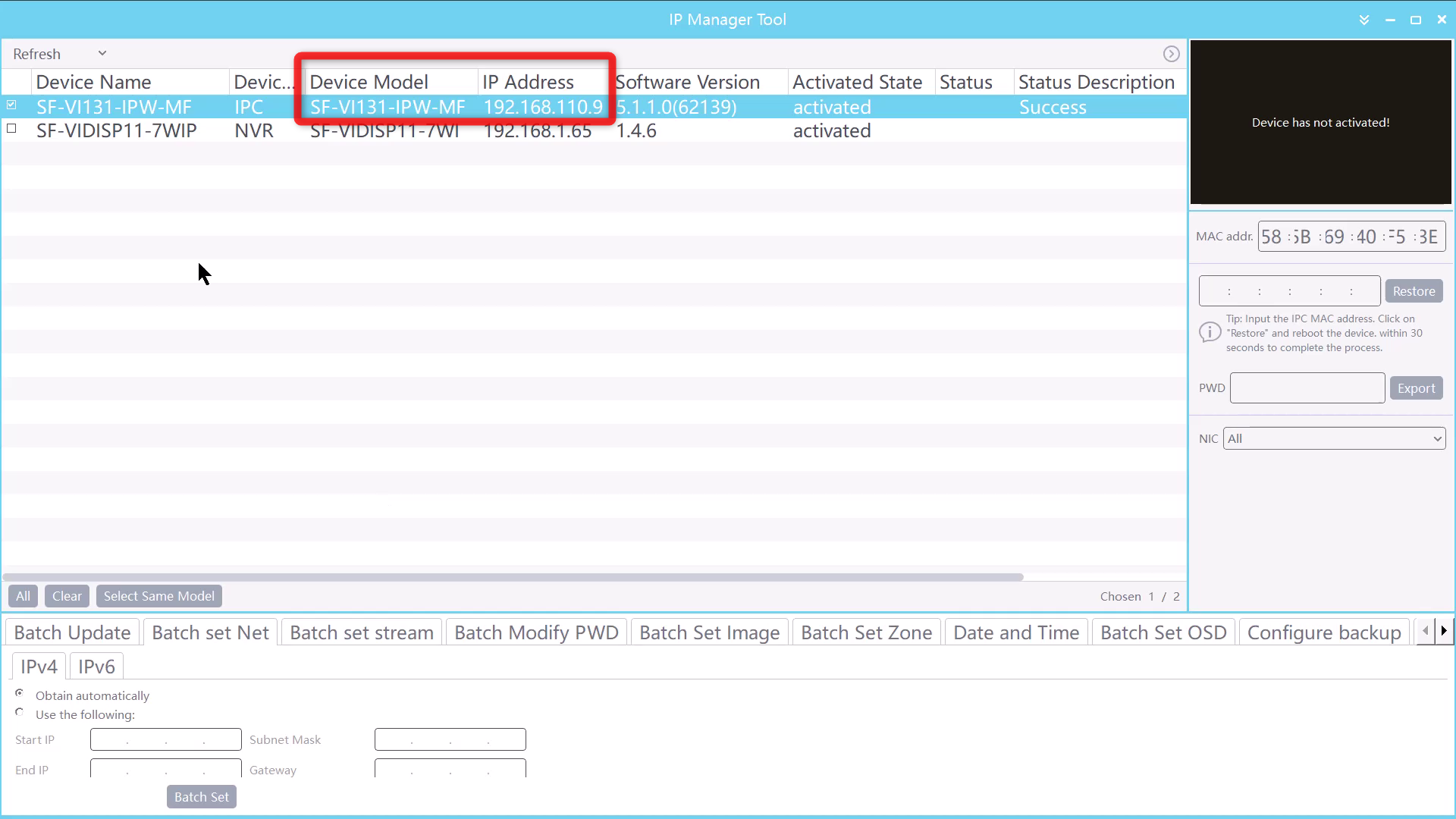

  • Open the IP Manager Tool on your Windows computer.
  • Locate the SF-VI131-IPW-MF outdoor station.

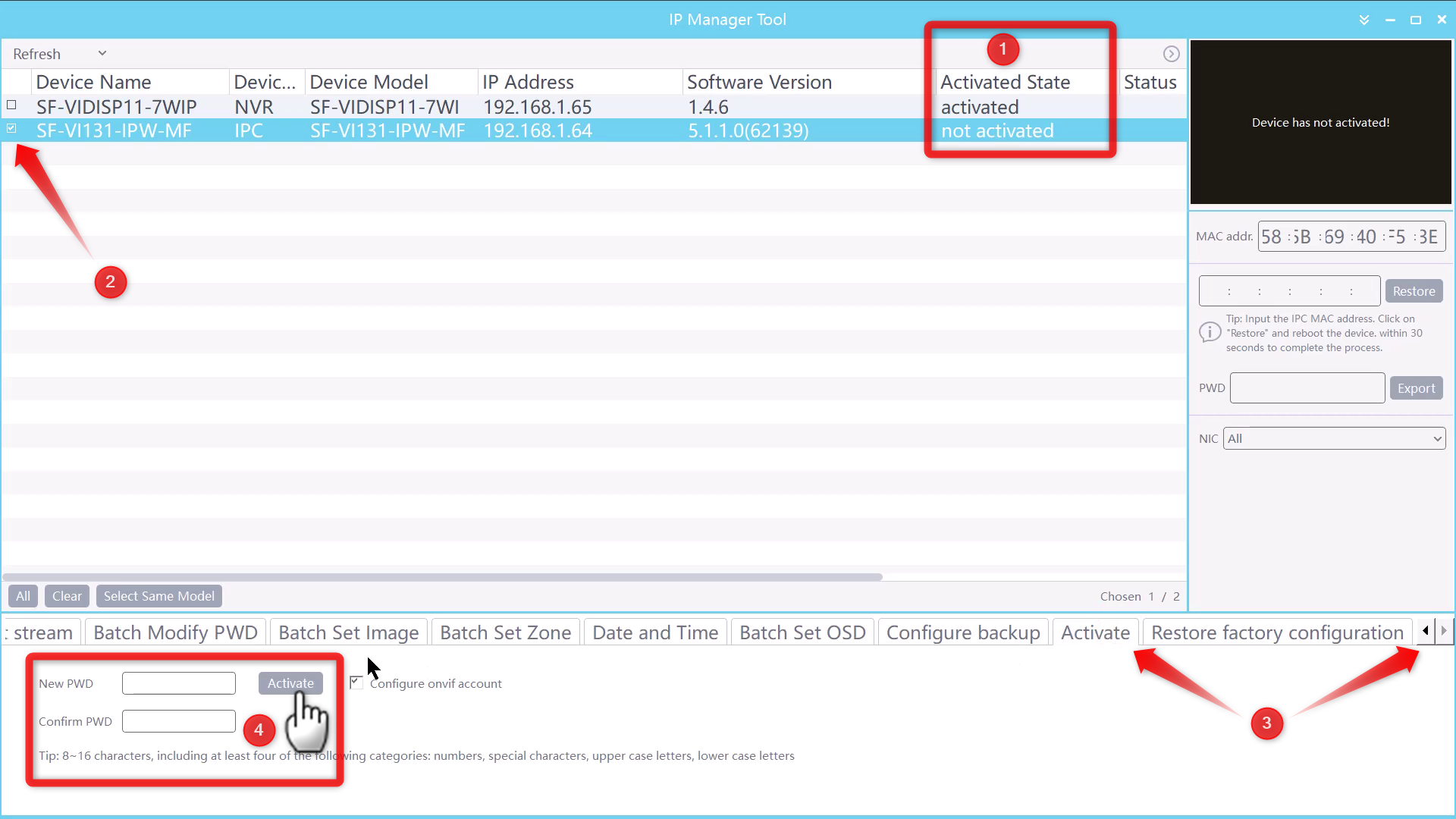

  • Go to the Activation tab.
  • Set a new password and click Activate.

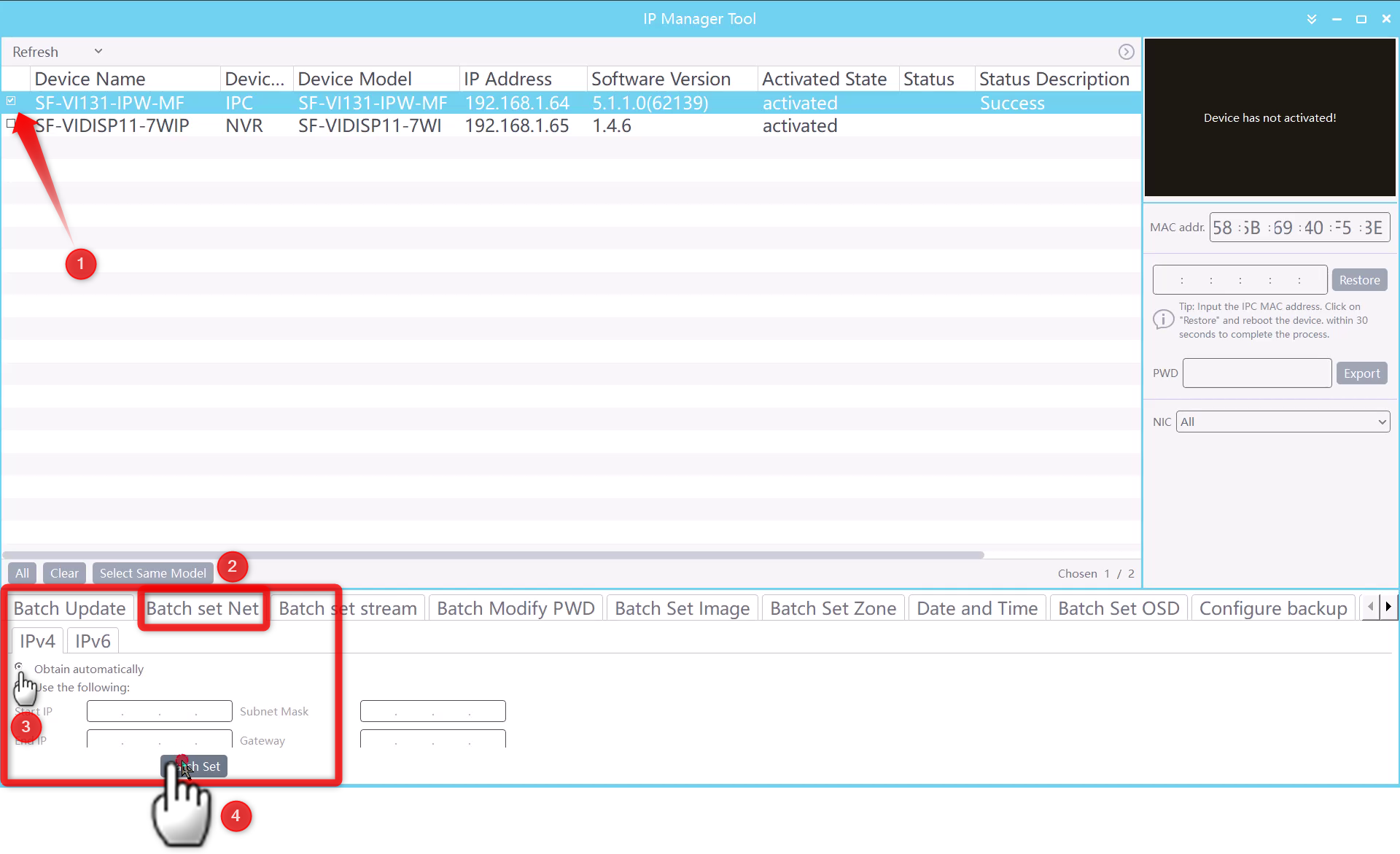

  • Go to the Batch Set Net tab.
  • Check Obtain IP Automatically (DHCP).
  • Click Batch Set to apply.

3. Configure the Monitor

  • Turn on the SF-VIDISP11-7WIP monitor.

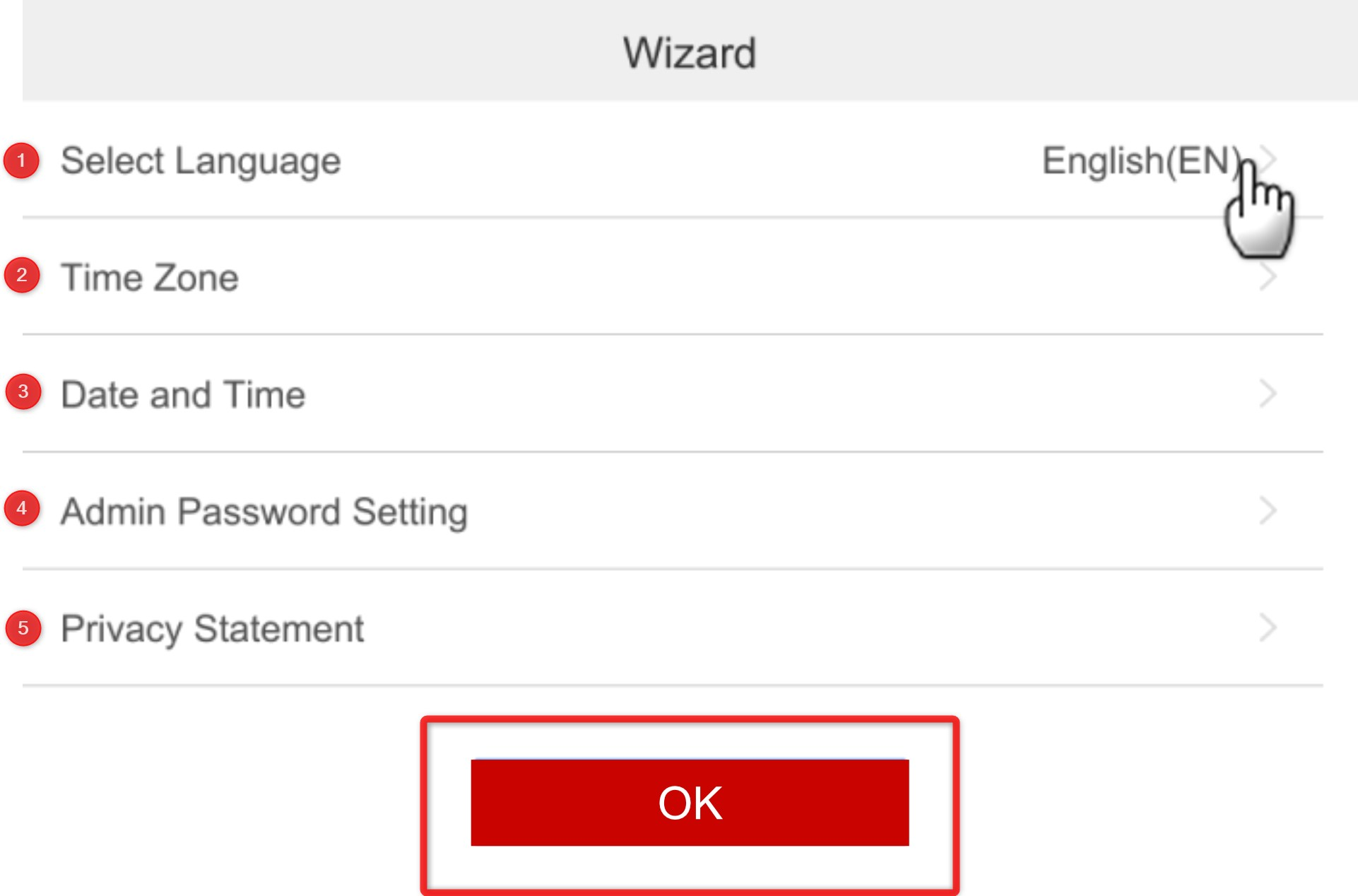

  • Follow the setup wizard:

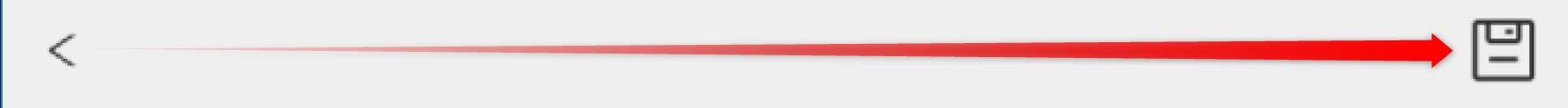

    • Choose and save your language.

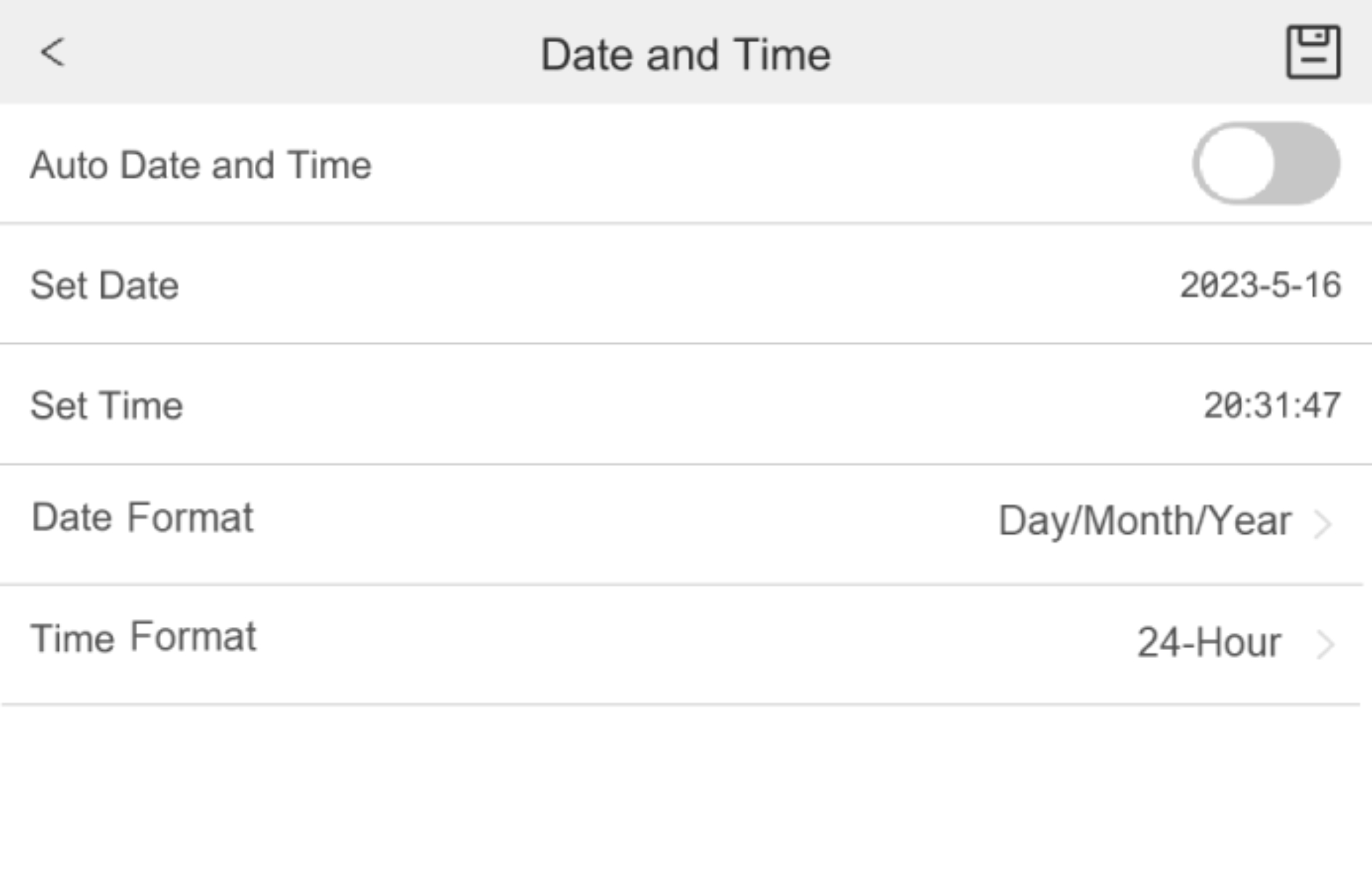

    • Set the time zone.
    • Accept the privacy policy.

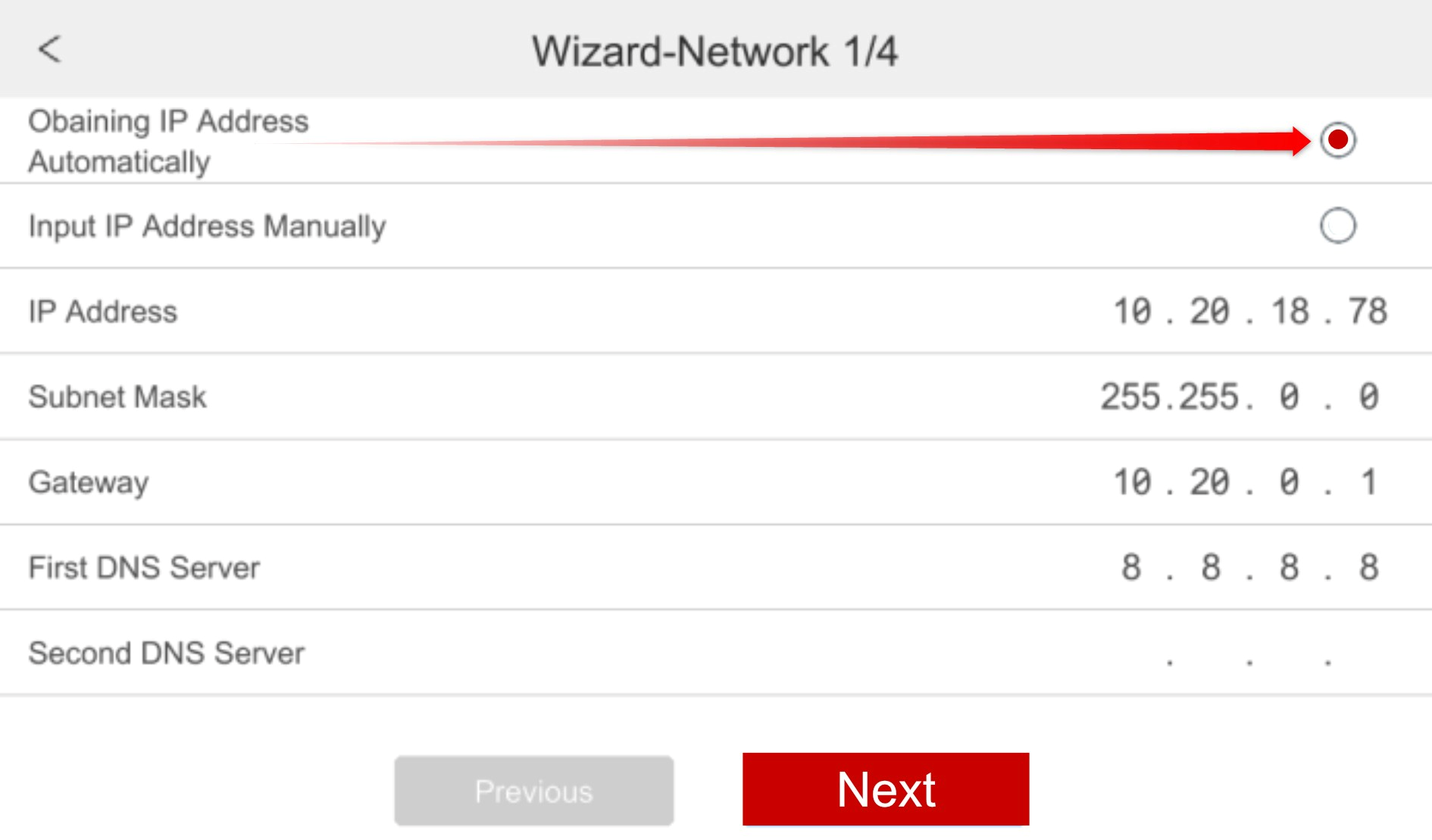

  • Set the IP mode to DHCP.
  • Skip the Wi-Fi setup for now.

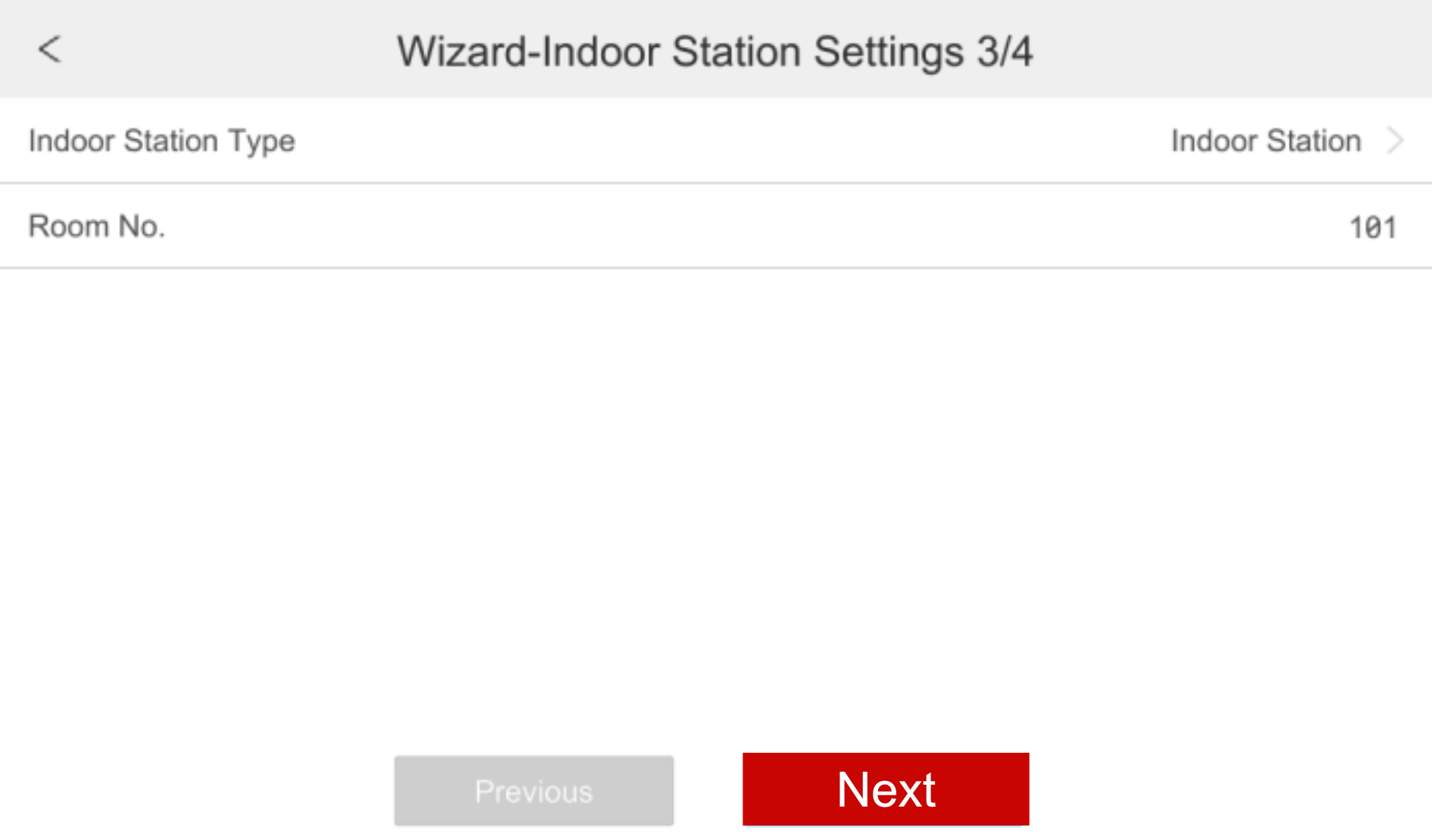

  • If using multiple monitors (maximum 6 per apartment):
    • Set the first one as Indoor Station.
    • Set the others as Indoor Station Extension.
  • Assign the correct apartment (room) number.

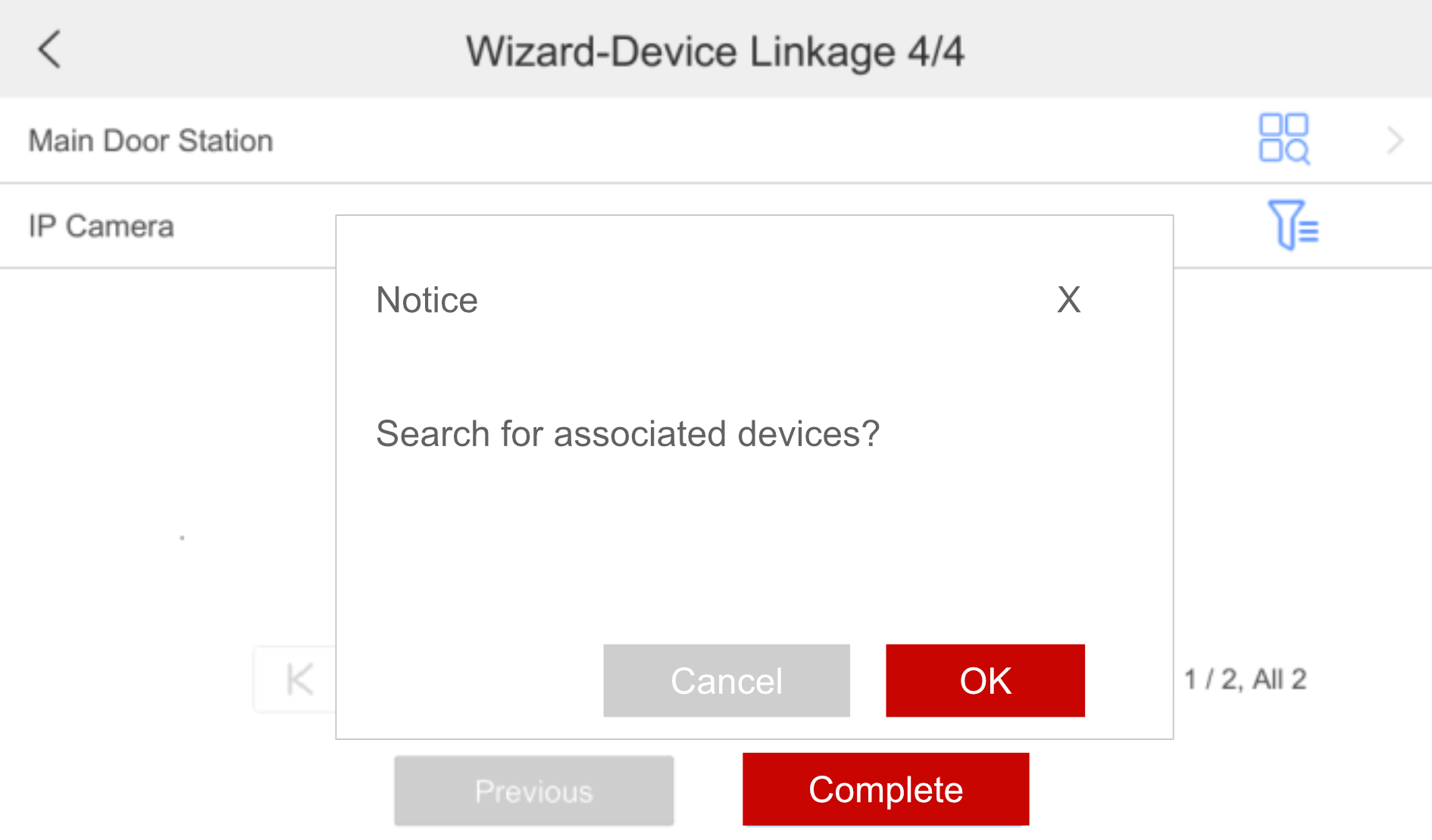

  • Tap OK to search for and connect to the door station and other cameras on the network.



4. Mobile Integration

  • Install the Safire Smart app on your smartphone.
  • Create an account or log in.

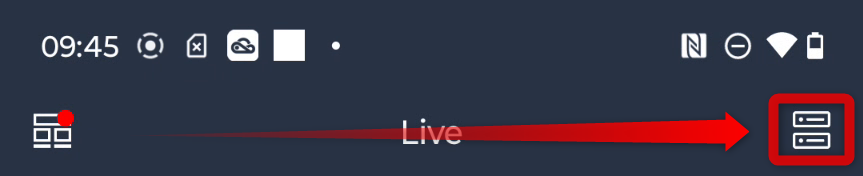

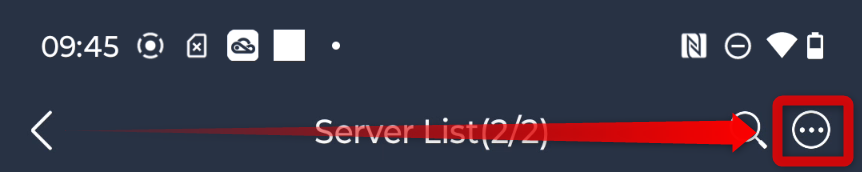

  • Use the menu in the top right corner to register the video intercom.
  • Then in the same place to choose the option to scan.

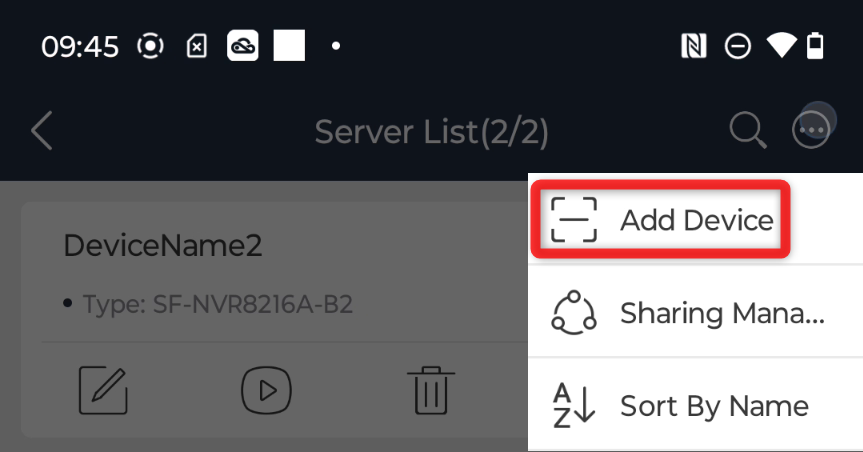

  • Tap Add device.

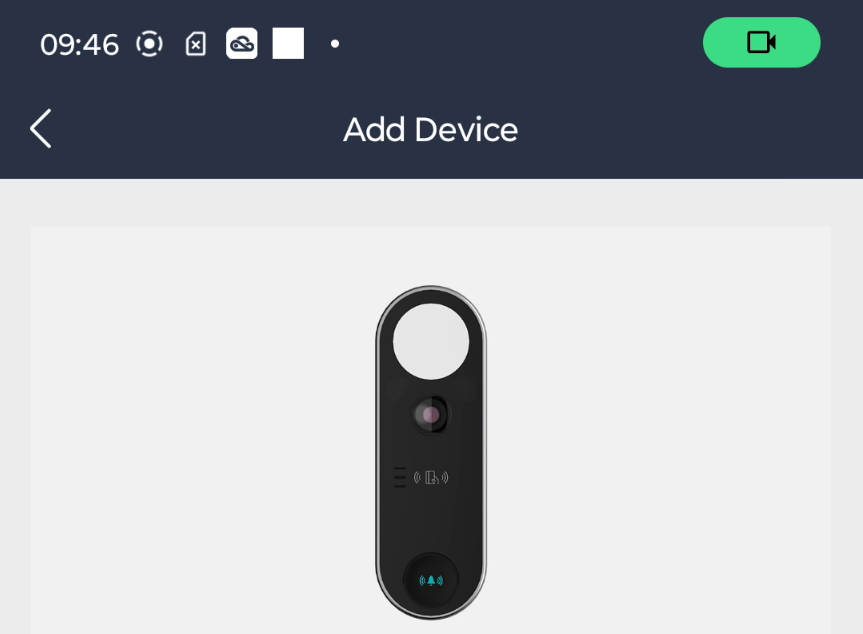

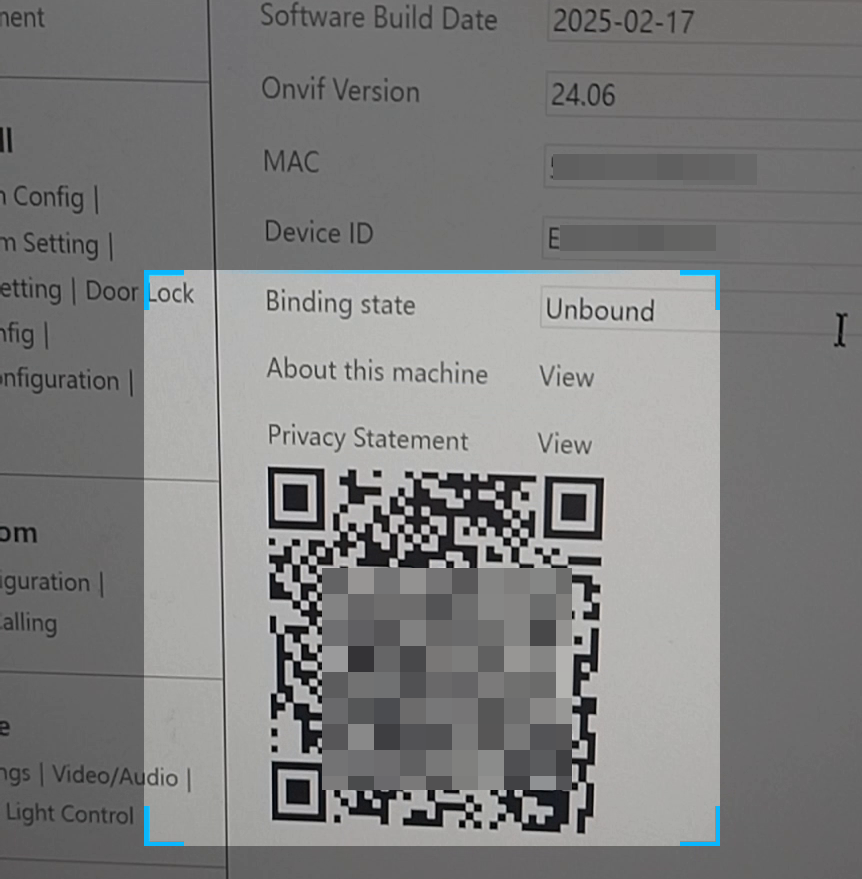

  • Scan the QR code on the back of the outpost or use the configuration page.

  •  Tap Add (Add) to complete.

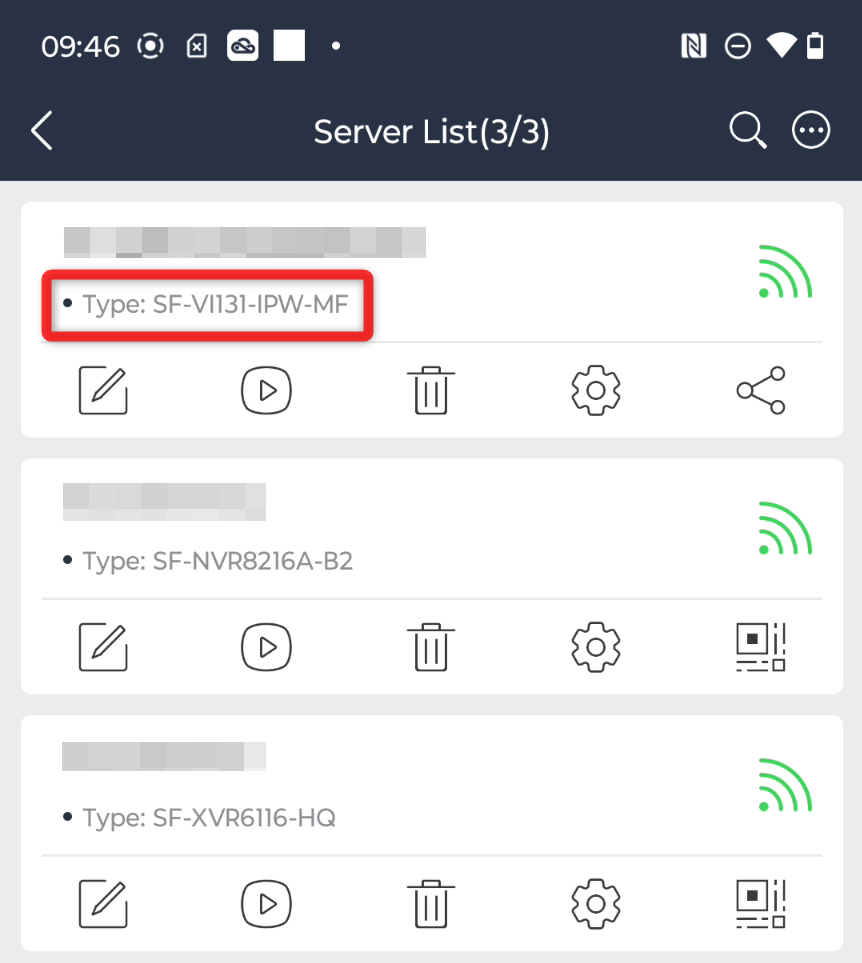

The device now appears in your server list and you can receive calls on your mobile.
